Operation:
The 8 inch tablet adopts Android system with English full touch operation. Images can be zoomed in and out.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Lovely
-
Model Number:
-
BD-F800
-
Product name:
-
Wireless Concrete Crack Depth and Crack Width Detector
-
Usage:
-
Test crack depth and width
-
Application:
-
Project site
-
Basic principle:
-
Ultrasonic
-
Control Unit:
-
8 inch tablet
-
Crack width range:
-
0~10mm
-
Crack depth range:
-
5~500mm
-
Total weight:
-
8.1KG
-
MOQ:
-
1 Set
Quick Details
-
Warranty:
-
12 months
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Lovely
-
Model Number:
-
BD-F800
-
Product name:
-
Wireless Concrete Crack Depth and Crack Width Detector
-
Usage:
-
Test crack depth and width
-
Application:
-
Project site
-
Basic principle:
-
Ultrasonic
-
Control Unit:
-
8 inch tablet
-
Crack width range:
-
0~10mm
-
Crack depth range:
-
5~500mm
-
Total weight:
-
8.1KG
-
MOQ:
-
1 Set
Product Show

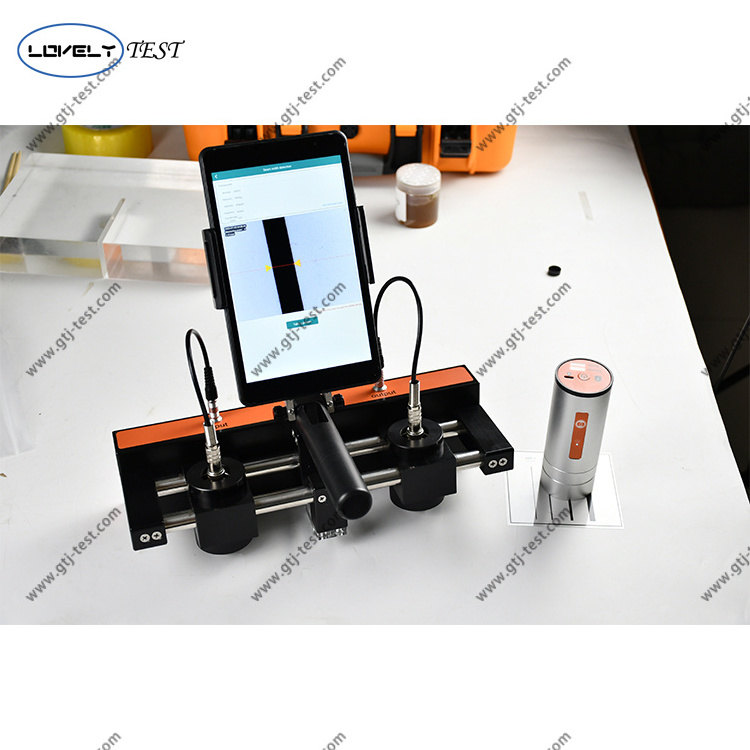

BD-F800 Ultrasonic
Crack depth Detector Wireless crack width monitor
The wireless crack comprehensive detector integrates crack width measurement and crack depth measurement
.
It is used to measure the width and depth of cracks on bridges, tunnels, towers, buildings, concrete components, pavements, and surfaces of non-metallic components.
PRODUCT FEATURES:
1.Original wireless camera probe; host adopts Android system tablet, English/Chinese full touch operation;
2.Intelligent interpretation of oblique cracks; images can be zoomed in and out.
3.The sounding bracket has scale on it,
large capacity
tablet and TF card storage;
4.
The host can analysis data and generate report form without transferring to the upper computer.
BD-F800 Ultrasonic Crack depth Detector Wireless crack width monitor
When measuring the crack width, the tablet computer is connected to the crack width measuring device through wifi, and imaging on the tablet computer, the software can automatically interpret the value of the crack width; when measuring the crack depth, the tablet computer is connected to the crack depth measuring device via Bluetooth, which can pass quick measurement or standard Measure the crack depth value.
Parameters
|
Master control unit
|
8-inch tablet Android operating system
|
|
|
|
Wireless Width Gauge Unit
|
Test range and accuracy
|
0~10mm: 0.01mm
|
|
|
|
Magnification
|
Digital 60 times
|
|
|
|
Operational mode
|
Touch screen + shortcut keys
|
|
|
|
Connection mode
|
Wifi connection
|
|
|
|
Data transmission mode
|
Wireless cloud transmission (optional)
|
|
|
|
Measuring method
|
Automatic/ manual
|
|
|
|
Power supply mode
|
Built-in lithium battery
|
|
|
|
Working hours
|
More than 10 hours
|
|
|
|
Working environment
|
-10℃~ 40℃ ＜90%RH
|
|
|
Wireless Depth Gauge Unit
|
Test scope
|
5~500mm
|
|
|
|
Measurement accuracy
|
Less than 5mm or 2%~10% of the actual depth
|
|
|
|
Operational mode
|
Touch screen + probe automatic trigger
|
|
|
|
Connection mode
|
Bluetooth connection
|
|
|
|
Data transmission mode
|
Wireless cloud transport(options)
|
|
|
|
Measuring method
|
Fast/standard measurement
|
|
|
|
Power supply mode
|
Built-in lithium battery
|
|
|
|
Working hours
|
More than 10 hours
|
|
|
|
Packing dimensions
|
420*140*335mm
|
|
Detailed Images
Contact US
Cangzhou Lovely Technology Co., Ltd.
It is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 40 countries and regions, which win favorable comments from customers worldwide.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.
