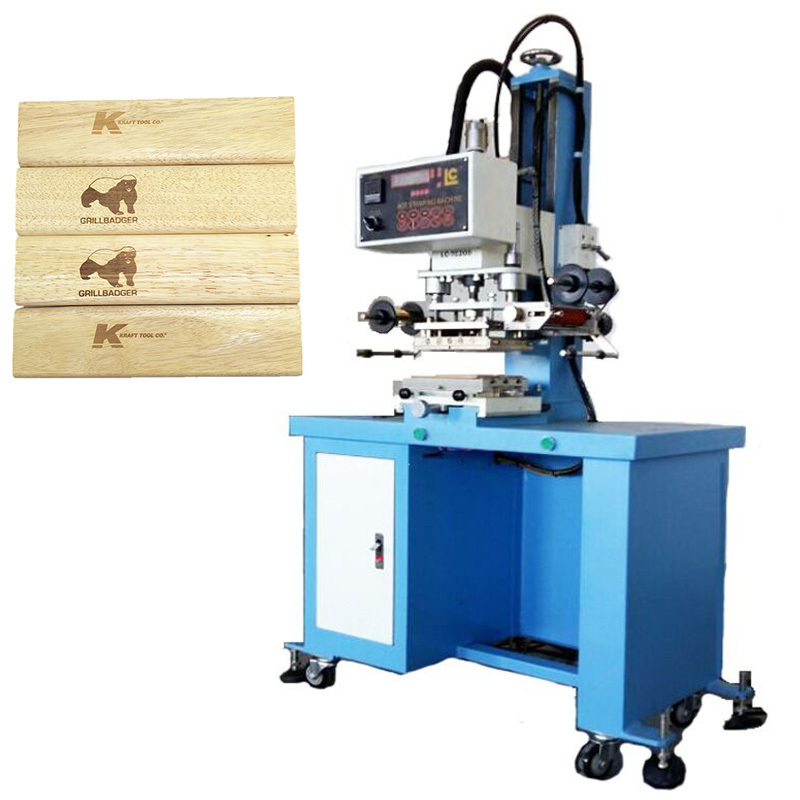

Affix hot stamping mould
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Model Number:
-
TC-200
-
Dimensions(L*W*H):
-
700*620*1600mm
-
Weight:
-
210KG
-
Product shape:
-
Plane
-
hot Stamping plane plate size:
-
200*150mm
-
Operation:
-
Pneumatic
-
Air Pressure:
-
0.6-0.8Mpa
-
Stamping foil winding length:
-
< 120 mm
-
Stamping speed:
-
1300 PCS/H
-
Application:
-
plastic shell, PVC bag, wood, furniture, electrical products
-
Product name:
-
High Quality pneumatic Leather Logo Embossed Hot Stamping Machine
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Usage:
-
Card Printer, Label Printer, Paper Printer, Tube Printer, Fabric Printer, Leather printer, Pen printer, PVC Printer, sublimation printer, t-shirt printer, Wood printer
-
After-sales Service Provided:
-
Online support, Video technical support
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE, ISO9001
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Letterpress
-
Color & Page:
-
single color
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Model Number:
-
TC-200
-
Dimensions(L*W*H):
-
700*620*1600mm
-
Weight:
-
210KG
-
Product shape:
-
Plane
-
hot Stamping plane plate size:
-
200*150mm
-
Operation:
-
Pneumatic
-
Air Pressure:
-
0.6-0.8Mpa
-
Stamping foil winding length:
-
< 120 mm
-
Stamping speed:
-
1300 PCS/H
-
Application:
-
plastic shell, PVC bag, wood, furniture, electrical products
-
Product name:
-
High Quality pneumatic Leather Logo Embossed Hot Stamping Machine
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Usage:
-
Card Printer, Label Printer, Paper Printer, Tube Printer, Fabric Printer, Leather printer, Pen printer, PVC Printer, sublimation printer, t-shirt printer, Wood printer
-
After-sales Service Provided:
-
Online support, Video technical support
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE, ISO9001
Products Description
|
Model NO
|
TC-200
|
|
Hot Stamping plate size
|
200*150mm
|
|
Stamping up-down stroke
|
53mm
|
|
Max stamping speed
|
1300 pcs/H
|
|
Heating power
|
1500W
|
|
Temperature control range
|
0-280℃
|
|
Stamping pressure range
|
<=130kgf
|
|
Machine Dimensions(L*W*H)
|
700*620*1600mm
|
|
Machine Weight
|
210kg
|
Application
With fast speed and low energy consumption.
With fast speed and low energy consumption.
This hot stamping machine is fit for stamping on the surface of plane objects.
Mainly applied to the field of craft, fabric handbag, leather, paper, plastic and so on.
Free items
1. 2 Inch gold foil sampe
2. Tool box one set
Function
1.With the crank design,which has powerful stamping pressure and little consumption of air pressure.
2.Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.
3.Stamping pressure,temperature and time are adjustable.
4.Automatic foil feeding and rolling with adjustable function.
5.Height of the stamping head is adjustable.
Free items
1. 2 Inch gold foil sampe
2. Tool box one set
Function
1.With the crank design,which has powerful stamping pressure and little consumption of air pressure.
2.Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.
3.Stamping pressure,temperature and time are adjustable.
4.Automatic foil feeding and rolling with adjustable function.
5.Height of the stamping head is adjustable.
Product Details
Printing Effect
Paper hot stamping
Wooden hot stamping
Wooden carving
Leather hot stamping
Leather carving
PVC hot stamping
Related Products
High temperature gummed paper
Stamping foil
Recommend:The best hot stamping temperature is 95-135 ℃
Gilding silicon rubber plate
Used for printing patterns
