Quick Details
-
Frequency range(MHz):
-
2300-2700
-
Polarization:
-
±45
-
Gain(dBi):
-
2x17.5
-
VSWR:
-
≤1.5
-
Lightning protection:
-
DC Ground
-
Input connector type:
-
2-N Female
-
Half-power beam width(°):
-
H:65 V:7
-
Front-to-back ratio(dB):
-
≥25
-
Input Impedance(Ω):
-
50
-
Product name:
-
2300-2700mhz sector panel antenna
Quick Details
-
Brand Name:
-
AMEISON
-
Model Number:
-
AMXP-2327S-D18L65
-
Place of Origin:
-
Guangdong, China
-
Frequency range(MHz):
-
2300-2700
-
Polarization:
-
±45
-
Gain(dBi):
-
2x17.5
-
VSWR:
-
≤1.5
-
Lightning protection:
-
DC Ground
-
Input connector type:
-
2-N Female
-
Half-power beam width(°):
-
H:65 V:7
-
Front-to-back ratio(dB):
-
≥25
-
Input Impedance(Ω):
-
50
-
Product name:
-
2300-2700mhz sector panel antenna

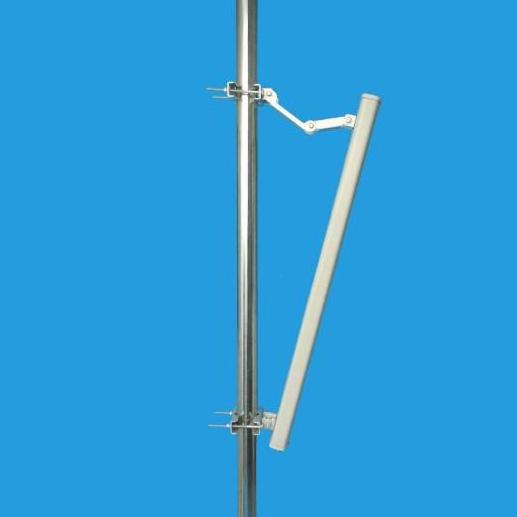

Antenna Manufacturer 2300-2700MHz 18dBi 65 Degree Directional Base Station Sector LTE 4g WiFi 2.3 - 2.7ghz panel antenna
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application:
2.3 - 2.7 GHz WLAN system
2.3 - 2.7 GHz ISM band
public wireless hot spot coverage
Wi-Fi system
|
AMXP-2327S-D18L65 Electrical Specifications |
|
|
Frequency range(MHz) |
2300~2700 |
|
Polarization |
±45º |
|
Gain(dBi) |
2×17.5 |
|
Half-power beam width(°) |
H:65 V:7 |
|
Front-to-back ratio(dB) |
≥25 |
|
Input Impedance(Ω) |
50 |
|
VSWR |
≤1.5 |
|
Isolation between ports |
≥28dB |
|
Cross-polar ratio |
≥15dB@0º ≥10dB@+/-60º |
|
Sidelobe suppression for first sidelobe above horizon |
15 dB |
|
Maximum input power(W) |
200 |
|
Lightning protection |
DC Ground |
|
Mechanical Specifications |
|
|
Input connector type |
2-N Female |
|
Dimensions-mm (Height/Width/Depth) |
1000*114*54 |
|
Packing size(mm) |
1080*155*145 |
|
Antenna weight (kg) |
6 |
|
Radome material |
UPVC |
|
Radome color |
Gray |
|
Mechanical tilt(°) |
0~10 |
|
Operating temperature(°c) |
-40 ~ 60 |
|
Rated Wind Velocity(m/s) |
60 |
|
Mounting hardware(mm) |
35 ~ 75 |
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others.
