DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction
machinery market! DIG-DOG can provide multi-functional excavators for the construction machinery industry, so that you can buy not
only a single machine, but also full range of customized attachments to deal with different work requirements, so you can have an
excavator and also achieve loading, transporting, digging trenches, laying roads, handling and a series of functions.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
36kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DIG-DOG
-
Maximum Digging Height:
-
2.3~4.5m
-
Maximum Digging Depth:
-
1.2~2.6m
-
Machine Weight:
-
20000 kg
-
Max Digging Radius:
-
2.4~3.8M
-
Rated Speed:
-
0-5 km/h
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Amphibious Excavator
-
Color:
-
Customer's Required
-
Applied excavators::
-
3 - 30 Ton, customized
-
Maximum operating water depth:
-
14 m
-
Chain quantity:
-
3
Quick Details
-
Operating Weight:
-
3ton, 6TON, 10 TON, 20 Ton, 30 Ton
-
Bucket capacity:
-
0.02-0.26 m³
-
Engine Brand:
-
Other
-
Power:
-
36kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DIG-DOG
-
Maximum Digging Height:
-
2.3~4.5m
-
Maximum Digging Depth:
-
1.2~2.6m
-
Machine Weight:
-
20000 kg
-
Max Digging Radius:
-
2.4~3.8M
-
Rated Speed:
-
0-5 km/h
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Amphibious Excavator
-
Color:
-
Customer's Required
-
Applied excavators::
-
3 - 30 Ton, customized
-
Maximum operating water depth:
-
14 m
-
Chain quantity:
-
3
Dig-Dog◎2023 All Rights Reserved
DIG-DOG AMPHIBIOUS PONTOON

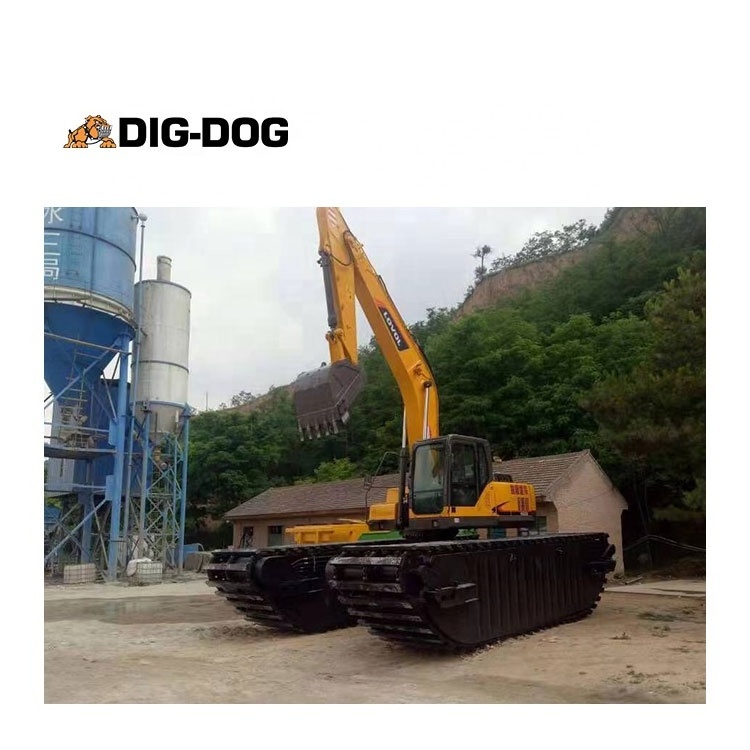

DIG-DOG Amphibious Excavator is specially designed to work in a swampy area, wetland, shallow water, and all soft terrains with the ability to float on water. DIG-DOG well-designed amphibious pontoon/undercarriage has been widely and effectively applied for removing silty clay, clearing silted trenches, removing wood, and all swampland and shallow water operation where the traditional standard excavators have limits.
DIG-DOG's a
mphibious
pontoon adopts a hollow structure to provide enough buoyancy, so that the whole machine floats on the water surface, ensuring that the whole machine can be transferred in deep waters, and can guarantee a maximum working water depth of 14 meters. Convenient. DIG-DOG's
amphibious
pontoon adopts a three-row chain structure to improve the safety of walking in water. The unique structure makes disassembly and assembly more convenient.
>>>
send inquiry
>>>
send inquiry
Bolt Tension chain
IMore convenient
to tighten the butter
Adjust the tension of the track.
Butter Tension Chain
Cost-effective bolt tightening.
Later maintenance
costs are lower
Slewing platform
Four high-pressure cut-off valves to prevent hydraulic oil leakage during disassembly
Floating tank -
semi-automatic telescopic
Use the traveling oil circuit
to control the telescoping function
Floating tank -
fully automatic telescopic
In-cab controls are done.
In addition, there are semi-automatic and fully automatic options for positioning piles of the pontoon. There are inspection holes inside the pontoon and equipped with travel motors.
|
|
Description
|
DIG-DOG
Amphibious Pontoons
|
|
|
|
|
|
|||||
|
|
Model
|
AP30-50
|
AP60-100
|
AP110-150
|
AP160-190
|
AP200-240
|
AP270-300
|
|||||
|
|
For Excavator
|
3-5T
|
6-10T
|
11-15T
|
16-19T
|
20-24T
|
27-30T
|
|||||
|
A
|
Pontoon Grounded Length
|
1000
|
2000
|
2500
|
3500
|
5000
|
6500
|
|||||
|
B
|
Undercarriage Length
|
4000
|
5700
|
6800
|
7500
|
9500
|
10500
|
|||||
|
C
|
Overall Length
|
STD 6050
|
STD 7200
|
STD 10040
|
STD 10040
|
STD 12340
|
STD 15400
|
|||||
|
D
|
Overall Height
|
3500
|
3700
|
3810
|
3950
|
3950
|
4200
|
|||||
|
E
|
Counterweight Ground Clearance
|
1300
|
1400
|
1800
|
1890
|
2010
|
2015
|
|||||
|
F
|
Spuds Height
|
6500
|
6200
|
6300
|
8300
|
8000
|
8300
|
|||||
|
G
|
Overall Width
|
4700
|
5200
|
6300
|
7000
|
6800
|
8000
|
|||||
|
H
|
Pontoon Height
|
1200
|
1340
|
1640
|
1640
|
1840
|
1900
|
|||||
|
I
|
Track Gauge
|
1830
|
1900
|
2500
|
2900
|
3700
|
3300
|
|||||
|
J
|
Overall Width
|
2500
|
3000
|
3800
|
4500
|
5200
|
5000
|
|||||
|
K
|
Pontoon Width
|
620
|
1000
|
1250
|
1250
|
1500
|
1700
|
|||||
|
M
|
Spuds Cross Range
|
6000
|
6000
|
6200
|
5000
|
5600
|
8000
|
|||||
|
N
|
Spuds Width
|
3000
|
3200
|
4000
|
5560
|
5600
|
5200
|
|||||
>>>
send inquiry
Quality Control
We only use genuine seanless hydraulic lines and are subjected to pressure testing prior to installation
All steel material is processed by CNC machines to ensure a high level of precision and consistency
Hydraulic piston motor from Doosanor Rexroth
Premium grade flex able hose
Well-experienced and qualified Welder
to ensure the welding quality
Sandblast process creates a unique steel surface texture that provides excellent cohesion
for paint coating
Amphibious pontoon is suitable for
Amphibious Excavator
Amphibious excavator
with positioning pile
Amphibious working platform
Amphibious Transport Vehicle
Amphibious Conveyor
Dig Love, Build Dream
Does it float?
Yes. However, working in open water requires additional pontoons and anchoring legs that are designed to give the extra stability necessary for safe operation on open water.
Is it safe to operate an amphibious excavator?
Stability of the pontoons is the best on the market, hands down. We do the design calculations with a “safety first” frame of mind and our instructions explain how to operate the machinery in a safe manner. Each pontoon is divided into several water-tight compartments to minimize any risk in case of accident.
What are the advantages of your brand？
We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every DIG-DOG product is armed and durable with a 12-month warranty. We use high quality materials & parts sourced from the very best in China.Our design team works closely with customers for any customized orders.
What logistics way for product delivery?
1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
Which payment terms do you accept?
We can work on T/T bank transfer and 100% irrevocable L/C. Please contact our customer representatives directly for a specific term.
