Multiple key design,
easy to operate,
high machine efficiency, powerful
- Product Details
- {{item.text}}
Quick Details
-
Spindle Taper:
-
MT4
-
Range of Spindle Speed(r.p.m):
-
230 - 1825 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
Yang tuo
-
Model Number:
-
ZX50c
-
Table Travel (mm):
-
500*230
-
Year:
-
2020
-
Spindle Motor Power(kW):
-
0.85/1.5/2.2
-
Voltage:
-
Customer Requirement
-
Dimension(L*W*H):
-
1100*970*1650
-
Weight (KG):
-
550
-
Name:
-
YANGTUO ZX50C mini drilling milling machine
-
Machine Type:
-
Vertical Drilling Milling
-
Color:
-
Customer Requirement
-
Table size:
-
900*240mm
-
Max.taping dia:
-
M16
-
Max. End Milling Capacity:
-
100MM
-
Max. drilling capacity:
-
50MM
-
Spindle travel:
-
120mm
-
Key word:
-
ZX50C China mini drilling milling machine for sale
-
Certification:
-
CE ISO
Quick Details
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
230
-
Table Travel (Z) (mm):
-
320
-
Spindle Taper:
-
MT4
-
Range of Spindle Speed(r.p.m):
-
230 - 1825 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
Yang tuo
-
Model Number:
-
ZX50c
-
Table Travel (mm):
-
500*230
-
Year:
-
2020
-
Spindle Motor Power(kW):
-
0.85/1.5/2.2
-
Voltage:
-
Customer Requirement
-
Dimension(L*W*H):
-
1100*970*1650
-
Weight (KG):
-
550
-
Name:
-
YANGTUO ZX50C mini drilling milling machine
-
Machine Type:
-
Vertical Drilling Milling
-
Color:
-
Customer Requirement
-
Table size:
-
900*240mm
-
Max.taping dia:
-
M16
-
Max. End Milling Capacity:
-
100MM
-
Max. drilling capacity:
-
50MM
-
Spindle travel:
-
120mm
-
Key word:
-
ZX50C China mini drilling milling machine for sale
-
Certification:
-
CE ISO
Product Description

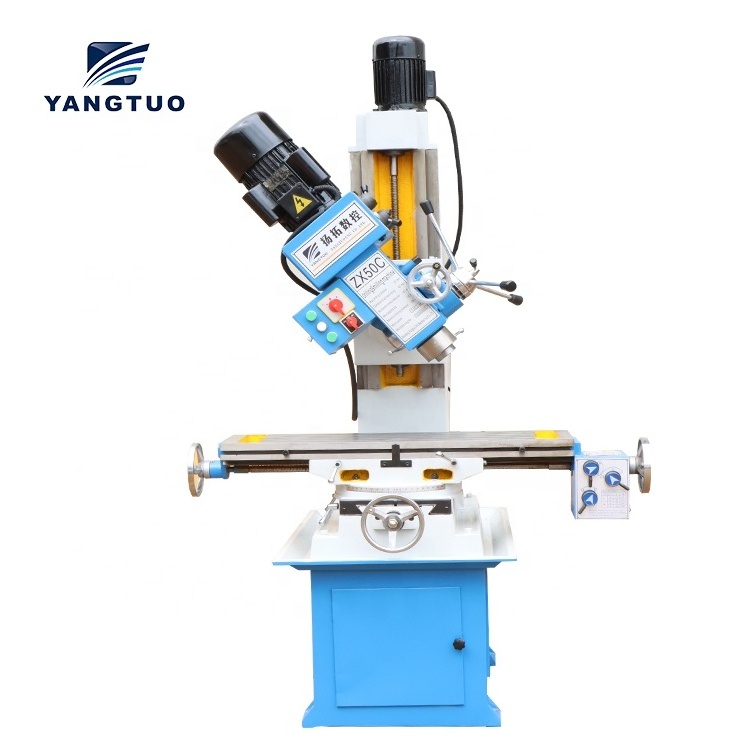

Mini metal bench top drilling milling machines ZX50C China mini drilling and milling machine for sale
:
The main performance characteristics:
1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the
spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the
spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
|
Specifications
|
ZX50C
|
|
Max.drilling dia.(mm)
|
50
|
|
Max.end milling width(mm)
|
100
|
|
Max.vertical milling dia.(mm)
|
25
|
|
Max.taopping dia.
|
M16
|
|
Spindle speed range (r.p.m)
|
230-1825
|
|
Spindle travel(mm)
|
120
|
|
Table size(mm)
|
900×240
|
|
Table travel(mm)
|
400×230
|
|
Overall dimensions(mm)
|
1100×970×1650
|
|
Motor(kw)
|
0.85/1.5/2.2
|
|
N.W/G.W(kg)
|
550/650
|
Detailed Images
Turret type milling head
Rotating milling head
The head of the machine can be rotated 180 degrees and parts can be machined in multiple directions
The head of the machine has several gears, which can meet different processing needs
Swivel table at 45 degrees
The machine table can rotate 45 degrees. The machine table is polished with high precision to improve the machining accuracy
The table feeds automatically
The standard work table is equipped with automatic feeding function, which can save time, operate simply and improve work
efficiency
efficiency
