Quick Details
-
Fork Length:
-
1070mm or 1220mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
1070*125*45mm
-
Weight (KG):
-
14000 kg
-
Product Name:
-
diesel forklift
-
Model:
-
FD120 CPCD120
-
Brand:
-
SR
-
Mast:
-
2 Stage/3 Stage
-
Engine:
-
Japan Engine
-
Feature:
-
High Efficiency
-
Capacity:
-
12000kg
-
Power:
-
diesel
-
Lifting height:
-
3000mm- 7000mm Customized
-
After Warranty Service:
-
Video Technical Support Online Support
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SR
-
Fork Length:
-
1070mm or 1220mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
1070*125*45mm
-
Weight (KG):
-
14000 kg
-
Product Name:
-
diesel forklift
-
Model:
-
FD120 CPCD120
-
Brand:
-
SR
-
Mast:
-
2 Stage/3 Stage
-
Engine:
-
Japan Engine
-
Feature:
-
High Efficiency
-
Capacity:
-
12000kg
-
Power:
-
diesel
-
Lifting height:
-
3000mm- 7000mm Customized
-
After Warranty Service:
-
Video Technical Support Online Support
Product Description

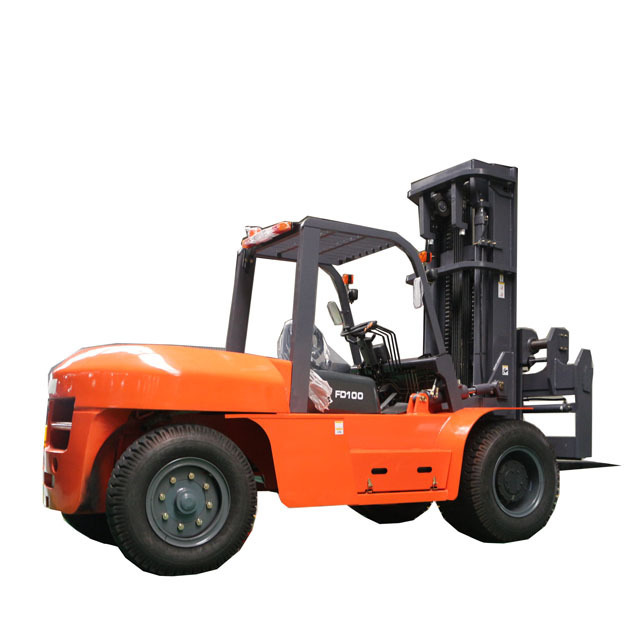

Product Characteristics of CPCD120,12ton forklift truck diesel :
* Integrated central control box the reliability of electric system
* Ergonomical design ensures best operation
* Energy-saving hydraulic system decreases fuel consumption
* High-quality hydraulic hoses, no oil leakage
* Wide-view mast design improves the productivity and safety
Specification
Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.New T-oyota suspension system adiustable seat makes the long-time operating more comfortable reducing fatigue
sides.New T-oyota suspension system adiustable seat makes the long-time operating more comfortable reducing fatigue
Power system
Equipped with Chinese powerful and reliable engines with excellent enviromental performance,original imported I-SUZU,M-itsubishi
and Y-anmar,C-ummins engine are optional
and Y-anmar,C-ummins engine are optional
Control improvement
Control improvement
Optimization on Parking brake lever position Increased bottom plate area Increased the area of the forklift stairs
Optimization on Parking brake lever position Increased bottom plate area Increased the area of the forklift stairs
Control improvement
Optimization on Parking brake lever position Increased bottom plate area Increased the area of the forklift stairs
Wide vision
The mast opening is large, and the driving vision is optimized, which effectively
guarantees the comfort and safety of the operation.
guarantees the comfort and safety of the operation.
Check easy
The integrated bottom plate does not need to be disassembled and can be easily taken off. The gearbox and multi-way
valve device
are convenient and quick to check and maintain
valve device
are convenient and quick to check and maintain
|
Main Information
|
|
|
|
|
|
|||||
|
1
|
Manufacturer
|
|
|
SUNRISE
|
|
|||||
|
2
|
Model
|
|
Unit
|
CPCD120
|
|
|||||
|
3
|
Power type
|
|
|
Diesel
|
|
|||||
|
4
|
Rated capacity
|
|
kg
|
12000
|
|
|||||
|
5
|
Load center
|
|
mm
|
600
|
|
|||||
|
6
|
Operator type
|
|
|
Drive in seat
|
|
|||||
|
Size
|
|
|
|
|
|
|||||
|
7
|
Max. lift height of mast with Load-backrest
|
|
mm
|
4350
|
|
|||||
|
8
|
Max.lift height of fork(standard)
|
|
mm
|
3000
|
|
|||||
|
9
|
Height of mast (standard)
|
|
mm
|
2840
|
|
|||||
|
10
|
Free lift height(standard)
|
|
mm
|
100
|
|
|||||
|
11
|
Height of Load-backrest
|
|
mm
|
1015
|
|
|||||
|
12
|
Distance from seat to overhead guard
|
|
mm
|
1020
|
|
|||||
|
13
|
overhead guard height
|
|
mm
|
2430
|
|
|||||
|
14
|
Length with fork
|
|
mm
|
4820
|
|
|||||
|
15
|
Front overhang
|
|
mm
|
720
|
|
|||||
|
16
|
Rear overhang
|
|
mm
|
900
|
|
|||||
|
17
|
Wheel base
|
|
mm
|
3200
|
|
|||||
|
18
|
The height of traction pin
|
|
mm
|
520
|
|
|||||
|
19
|
Min. ground clearance
|
|
mm
|
240
|
|
|||||
|
20
|
Overall width
|
|
mm
|
2165
|
|
|||||
Packing & Delivery
1units/40'HQ Container.
