- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QUALITY
-
Model Number:
-
H.265
-
Operation System:
-
UCOS
-
Features:
-
OTHER
-
Keyboard:
-
button
-
Item:
-

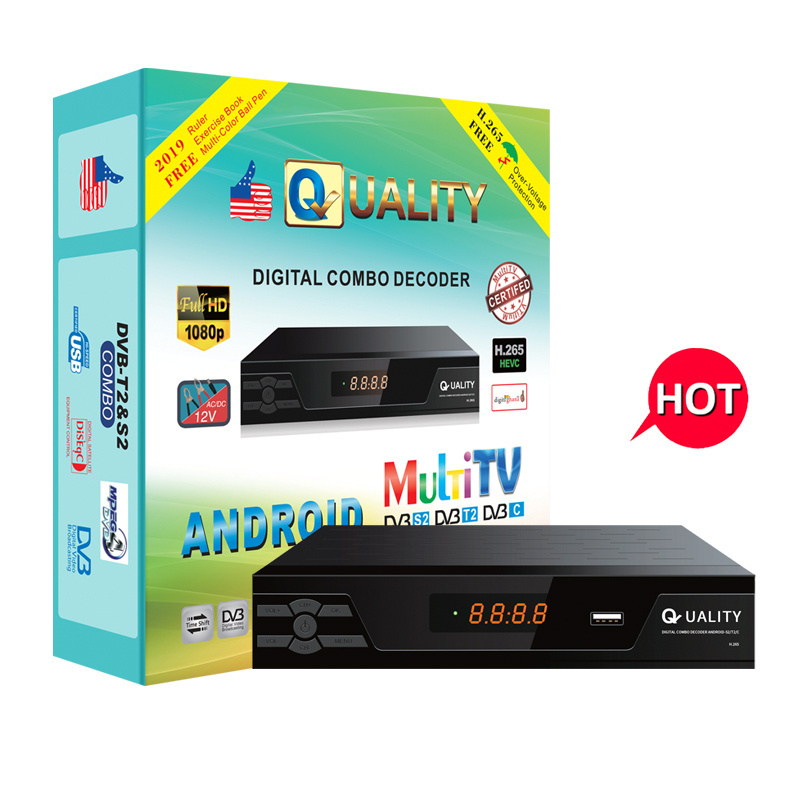

set top box DVB-T2/C/S2 Combo
-
Warranty:
-
13 Months
-
Language:
-
Support Multi Languages
-
Chipset:
-
montage
-
OEM:
-
Support Custom LOGO
-
Main country:
-
African
-
Support:
-
H.265 Decoder
-
Type:
-
High Definition
-
Color:
-
Balck
Quick Details
-
Processor Core:
-
8001
-
Support Resolution:
-
1920 x 1080
-
WiFi:
-
802.11n 2.4GHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QUALITY
-
Model Number:
-
H.265
-
Operation System:
-
UCOS
-
Features:
-
OTHER
-
Keyboard:
-
button
-
Item:
-
set top box DVB-T2/C/S2 Combo
-
Warranty:
-
13 Months
-
Language:
-
Support Multi Languages
-
Chipset:
-
montage
-
OEM:
-
Support Custom LOGO
-
Main country:
-
African
-
Support:
-
H.265 Decoder
-
Type:
-
High Definition
-
Color:
-
Balck
Products Description
|
Section
|
Item
|
Description
|
|
Processor
|
CPU
|
Montage M88CS8051T
|
|
|
Flash Memory
|
8MB
|
|
|
DDR2
|
128MB
|
|
DVB-S/S2
Tuner |
Input Frequency
|
950 ~ 2150MHz
|
|
|
Input Level
|
-80 ~ -20dBm
|
|
|
Input impedance
|
75Ω
|
|
DVB -T/T2 Tuner
Complian with EN 302 755 DVB-T, EN 300 744 DVB-T2 Standard |
Input Frequency Range
|
VHF 170 ~ 230MHz,UHF 470 ~ 862MHz
|
|
|
IF Bandwidth
|
6MHz/7MHz/8MHz
|
|
|
Input Signal Level
|
-85dBm~ -20dBm
|
|
|
Input impedance
|
75Ω
|
|
|
RF Input Connector
|
IEC 61169-2 antenna female connector
|
|
DVB-C Tuner Complian with
EN 300 429 DVB-C Standarts |
Input frequency Range
|
48MHz ~ 1GHz
|
|
|
Guard interval
|
1/4,19/128,1/8,19/256,1/16,1/32,1/128
|
|
|
FEC code Rates
|
1/1,2/3,3/4,3/5,4/5,5/6
|
|
Demodulator
|
OFDM
|
16QAM,32QAM,64QAM,128QAM,256QAM
|
|
Channel
Decoding |
Demodulation
|
QPSK,8PSK,16PSK
|
|
|
FEC mode
|
DVB-S :1/2,2/3,3/4,5/6,7/8
|
|
|
|
DVB-S2:1/2,3/5,2/3,3/4,4/5,5/6.8/9,9/10
(QPSK)3/5,2/3,3/4/,4/5,5/6,8/9,9/10 |
|
|
Symbol Rate
|
DVB-S:2.0~45MS/s
|
|
|
Demodulation
|
QPSK,8PSK,DVB-S2:10-30 Mbs(QPSK)
10-31Mbs (8PSK) |
|
Demultiplexer
|
Standard
|
ISO/IEC 13818-1
|
|
|
Input Max. Bit Stream Rate
|
100Mbs(serial)/12.5MBps(Parallel)
|
|
Video
Decoding |
Standard
|
ISO/IEC 13818-2,MPEG-2 MP@ML,MPEG-4
AVC(MP L4.1) |
|
|
Aspect Ratio
|
4:3,16:9
|
|
|
Video Format
|
PAL-B/NTSC-M/PAL-N/PAL-M
|
|
|
Video Resolution
|
1080P,1080i,720p,480p/576p,480i/576i SD compatible
|
|
Audio
Decoding |
Standard
|
ISO/IEC 13818-3
|
|
|
Decoding
|
MPEG-1 Layer I andII,MPEG-2,MPEG-4 AAC
|
|
|
Output Mode
|
LPCM,RAW
|
|
|
Sampling Frequency
|
32,44.1,48KHz
|
|
|
Volume Level
|
24 Levels
|
|
AV Output
|
Video de-emphasis
|
CCIR REC.405-1,625 LINES
|
|
|
Video bandwidth
|
5.5MHz
|
|
|
Video output impedance
|
75Ω
|
|
|
Video output level
|
1.0Vp-p
|
|
|
Aduio output
|
Stereo
|
|
|
Audio output frequency
|
20Hz~20kHz
|
|
|
Audio output impedance
|
Low
|
|
|
Audio output level
|
A 1.0Vrms ± 2dB into 10K
|
|
|
Pannel Inteface
|
1XAV(CVBS+R/L Audio)
1XHDTV 1XLNB IN 1XIR FOR LED DISPLAY 2XUSB 2.0 Port |
|
Others
|
Power input Spec.
|
12V/1A DC IN Max.8W
|
|
Carton size
|
51*58*28CM
|
15.6kg/carton
|
