Quick Details
-
Input:
-
2 *Tuner, F type 1*ASI input for re-mux, BNC interface
-
Descrambling BISS Mode:
-
Mode 1, Mode E (up to 120Mbps)
-
Decode Output:
-
Video & Audio
-
Local interface:
-
LCD + control buttons
-
Remote management:
-
Web-server Management
-
Dimension:
-
482*300*44mm (WxLxH)
-
Environment:
-
0~45℃(work);-20~80℃(Storage)
-
Power requirements:
-
100~240VAC, 50/60Hz
-
Power consumption:
-
20W
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Model Number:
-
DT-HDIED-9975C
-
Input:
-
2 *Tuner, F type 1*ASI input for re-mux, BNC interface
-
Descrambling BISS Mode:
-
Mode 1, Mode E (up to 120Mbps)
-
Decode Output:
-
Video & Audio
-
Local interface:
-
LCD + control buttons
-
Remote management:
-
Web-server Management
-
Dimension:
-
482*300*44mm (WxLxH)
-
Environment:
-
0~45℃(work);-20~80℃(Storage)
-
Power requirements:
-
100~240VAC, 50/60Hz
-
Power consumption:
-
20W
Product Description

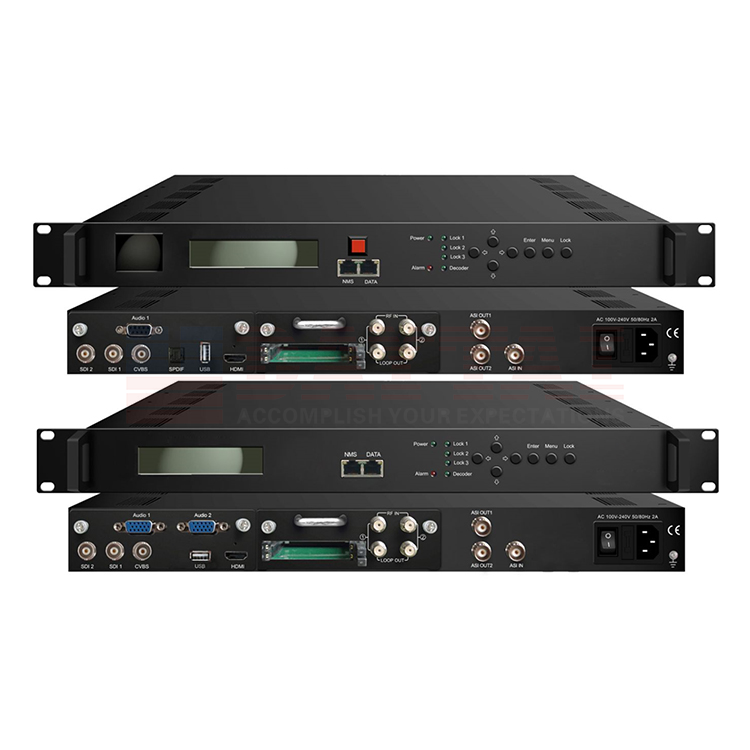

Digital TV Headend 9975C HD IRD,(DT-HDIED-9975C) is new design device. It can receive signals from tuners(DVB-C, DVB-T/T2, DVB-S/S2/S2X, ATSC-T, ISDBT optional).After demodulating,de-scrambling, re-multiplexing and decoding, it gives content out through various video/audiointerfaces. Its video/audio outputs support HDMI, CVBS, SDI, BNC, XLR interface and SPDIF.The two CAMs/CIs accompanied and BISS modules can descramble the programs input fromencrypted Tuner, ASI and IP.Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder)as needed.To meet customers’ various requirements,DT-HDIED-9975C is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port.
Feature
⊙Updates via web
⊙Pluggable and changeable design
⊙1 ASI & 1 IP (UDP) input for re-mux
⊙BISS descrambling (Up to 120Mbps)
⊙Support maximum 128 PID mapping per inputn
⊙LCD/Keyboard and web-based NMS management
⊙Support CC (EIA608, EIA708) & Teletext (Only for SDI)
⊙Each CAM can decrypt multiple programs from Tuner/ASI/IP
⊙Demodulator + descrambler +re-mux+ decoder modules in one box
⊙2 Tuner (DVB-C/T/T2/S/S2/S2X/ATSC-T/ISDBT optional ) input
⊙IP (1 MPTS & 8 SPTS) output over UDP and RTP/RTSP; 2 ASI mirrored out
⊙Support 4:2:0 HD/SD MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265 decoding
⊙One Stereo audio (DT-HI-9975B) or two Stereo audio (DT-HI-9975C SDI interface) out
⊙Support MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/Dolby Digital
Plus decoding and AC3 passthrough
⊙Pluggable and changeable design
⊙1 ASI & 1 IP (UDP) input for re-mux
⊙BISS descrambling (Up to 120Mbps)
⊙Support maximum 128 PID mapping per inputn
⊙LCD/Keyboard and web-based NMS management
⊙Support CC (EIA608, EIA708) & Teletext (Only for SDI)
⊙Each CAM can decrypt multiple programs from Tuner/ASI/IP
⊙Demodulator + descrambler +re-mux+ decoder modules in one box
⊙2 Tuner (DVB-C/T/T2/S/S2/S2X/ATSC-T/ISDBT optional ) input
⊙IP (1 MPTS & 8 SPTS) output over UDP and RTP/RTSP; 2 ASI mirrored out
⊙Support 4:2:0 HD/SD MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265 decoding
⊙One Stereo audio (DT-HI-9975B) or two Stereo audio (DT-HI-9975C SDI interface) out
⊙Support MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/Dolby Digital
Plus decoding and AC3 passthrough
Specification
|
Input
|
2 *Tuner, F type
1*ASI input for re-mux, BNC interface 1*IP input for re-mux (UDP) |
|
|
|
System |
Local interface
|
LCD + control buttons
|
|
|
|
Remote management
|
Web-server Management
|
|
|
|
Language
|
English
|
|
|
|
Upgrade
|
USB, web management
|
|
|
Miscellaneous |
Dimension
|
482*300*44.5mm (W×L×H)
|
|
|
|
Approx weight
|
3.5kg
|
|
|
|
Environment
|
0~45℃(work)；-20~80℃（Storage）
|
|
|
|
Power requirements
|
100~240VAC, 50/60Hz
|
|
|
|
Power consumption
|
20W
|
|
