Quick Details
-
Brand Name:
-
sanxie
-
Model Number:
-
sx
-
Product name:
-
Parallel groove clamp
-
Process:
-
rolling,slitting,CNC,Electroplating
-
Structure:
-
Bolt Type Parallel Groove Clamp
-
Configuration:
-
Customizable
-
OEM/ODM:
-
Accepted
-
Usage:
-
Connecting Cable
-
Application:
-
Overhead Line Accessories
Quick Details
-
Measurement system:
-
Metric
-
Material:
-
Metal, Aluminium, copper
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sanxie
-
Model Number:
-
sx
-
Product name:
-
Parallel groove clamp
-
Process:
-
rolling,slitting,CNC,Electroplating
-
Structure:
-
Bolt Type Parallel Groove Clamp
-
Configuration:
-
Customizable
-
OEM/ODM:
-
Accepted
-
Usage:
-
Connecting Cable
-
Application:
-
Overhead Line Accessories
Product Paramenters
|
Material
|
Copper T2, Aluminum 1060
|
|
|
|
Specification(thickness * width)
|
0.1mm-15mm*30mm-1000mm
|
|
|
|
Copper and Aluminum weight ratio
|
Cu:AL
|
32%-40%: 60%-68%
|
|
|
Copper and Aluminum volume ratio
|
Cu:AL
|
15-20: 80-85
|
|
|
Resistivity(Ωmm2/m)
|
≦0.024
|
|
|
|
Elongation (%)
|
15%～30%
|
|
|
|
Tensile strength(MPa)
|
150-170Mpa
|
|
|
|
peel strength(N/mm)
|
more than 12
|
|
|
|
Surface hardness(HV 0.3)
|
76/37
|
|
|
|
composite rate (%)
|
100%
|
|
|
Specification
|
Specification a*b(mm)
|
3*30
|
3*40
|
3*50
|
|
|
|
|
|
|
Weight/meter(kg)
|
0.31
|
0.42
|
0.53
|
|
|
|
|
|
|
Specification a*b(mm)
|
4*40
|
4*50
|
4*60
|
4*80
|
|
|
|
|
|
Weight/meter(kg)
|
0.56
|
0.7
|
0.84
|
1.12
|
|
|
|
|
|
Specification a*b(mm)
|
5*40
|
5*50
|
5*60
|
5*80
|
|
|
|
|
|
Weight/meter(kg)
|
0.7
|
0.875
|
1.05
|
1.4
|
|
|
|
|
|
Specification a*b(mm)
|
6.4
|
6*50
|
6*60
|
6*80
|
6*100
|
|
|
|
|
Weight/meter(kg)
|
0.84
|
1.05
|
1.26
|
1.68
|
2.1
|
|
|
|
|
Specification a*b(mm)
|
8*50
|
8*60
|
8*80
|
8*100
|
8*120
|
8*200
|
|
|
|
Weight/meter(kg)
|
1.4
|
1.68
|
2.24
|
2.8
|
3.36
|
5.6
|
|
|
|
Specification a*b(mm)
|
10*60
|
10*80
|
10*100
|
10*120
|
10*150
|
10*200
|
10*250
|
10*300
|
|
Weight/meter(kg)
|
2.1
|
2.8
|
3.5
|
4.2
|
5.25
|
7
|
8.75
|
10.5
|
Products Description

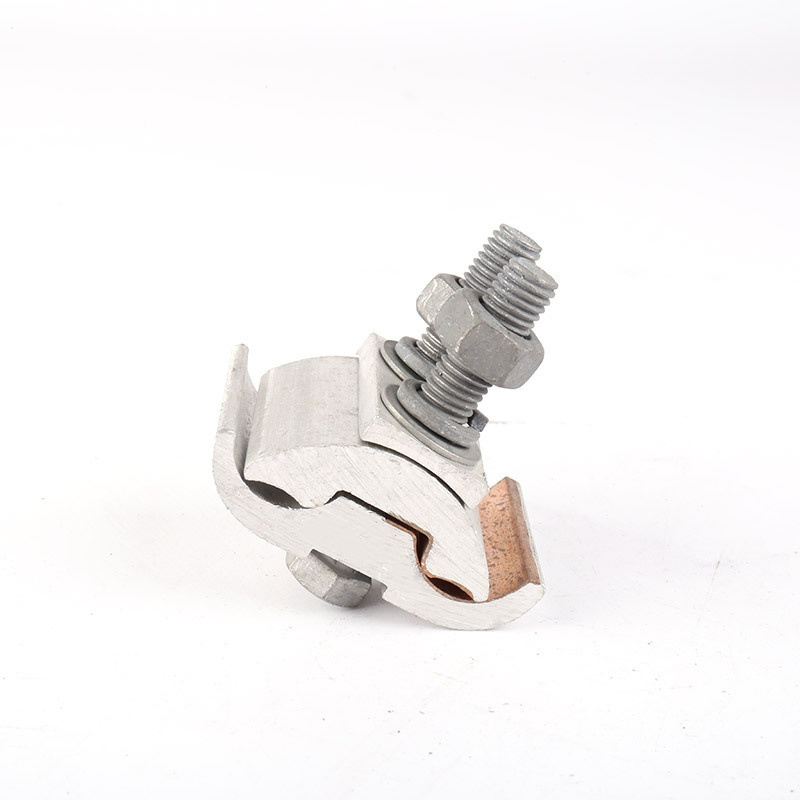

Bimetal al-cu Parallel Groove Clamp
They are mainly used for copper-aluminum transitional connection, avoiding the direct connection of copper and aluminum to produce electrochemical corrosion between copper and aluminum, and the resistance increases, which leads to various power accidents caused by local heating of the circuit.
2Application scenarios:
They are currently used in reactors,
High Voltage
transformer, electrical components and so on,and
mainly used for transmitting current
between the interconnected conductors.
High voltage transformer
Distribution box
High-speed rail industry
New energy electric car
Shipping industry
Transformer
3.Other advantages:
（1）
A
nti-corrosion, wear resistance, good electrical and thermal conductivity, and low cost.
（2）Good mechanical properties: Excellent tensile strength, flexibility and ductility.
4.OEM/ODM accepted:
We can also customize the design and development of these clamps according to the specific requirements of customers.
5.Various customization
In addition to copper aluminum composite PG clamps, there are also many products made of bimetallic materials. We accept various customizations.
|
customize
|
material
|
Copper:Purple Copper T2 (C1100) /Brass H62 / H65
Aluminum: 1060 / 1070/ 8010 / 1100 / 3003 /5052
Others:Steels/Nickel/Zinc......
|
|
|
shape
|
Sheet / Plates / Strip / terminal lug / boss / foil / Washers / PG clamp / earthing block / Customized Design
|
|
|
Thickness
|
0.07mm/ 0.1mm/14.5mm/according to your needs.
|
|
|
Width
|
according to your needs.
|
|
|
Length
|
according to your needs.
|
|
|
Ratio
|
according to your needs.
|
|
|
Configuration
|
Whether it is Inlay clad, Overlay clad, or welded clad, the specific configuration can be customized
|
