The machine adopts
304
stainless steel, beautiful in appearance and easy to cleaning. It also complies with the GMP standard.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
50-70 bags/min
-
Weight (KG):
-
7000
-
Voltage:
-
380V
-
Place of Origin:
-
China
-
Brand Name:
-
VIPPAI
-
Dimension(L*W*H):
-
7300*2860*2230mm
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE, GMP
-
Keyword:
-
Cosmetic Face Mask Making Machine
-
Automaticity:
-
Full Automatic
-
Usage:
-
Making Face/Facial Sheet Mask
-
Suitable for:
-
Cosmetics Manufacturing, facial mask manufacturing
-
Machine type:
-
Automatic Facial Mask Packing Machine
-
Main Function:
-
Automatic Face Sheet Mask Making
-
Advantage:
-
Stable Operation and High Speed
-
Feature:
-
Automatic Production Line
Quick Details
-
Function:
-
FILLING, BOXING, Embossing
-
Packaging Type:
-
Cartons, Bags
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
50-70 bags/min
-
Weight (KG):
-
7000
-
Voltage:
-
380V
-
Place of Origin:
-
China
-
Brand Name:
-
VIPPAI
-
Dimension(L*W*H):
-
7300*2860*2230mm
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE, GMP
-
Keyword:
-
Cosmetic Face Mask Making Machine
-
Automaticity:
-
Full Automatic
-
Usage:
-
Making Face/Facial Sheet Mask
-
Suitable for:
-
Cosmetics Manufacturing, facial mask manufacturing
-
Machine type:
-
Automatic Facial Mask Packing Machine
-
Main Function:
-
Automatic Face Sheet Mask Making
-
Advantage:
-
Stable Operation and High Speed
-
Feature:
-
Automatic Production Line
Customer Videos
Product Description

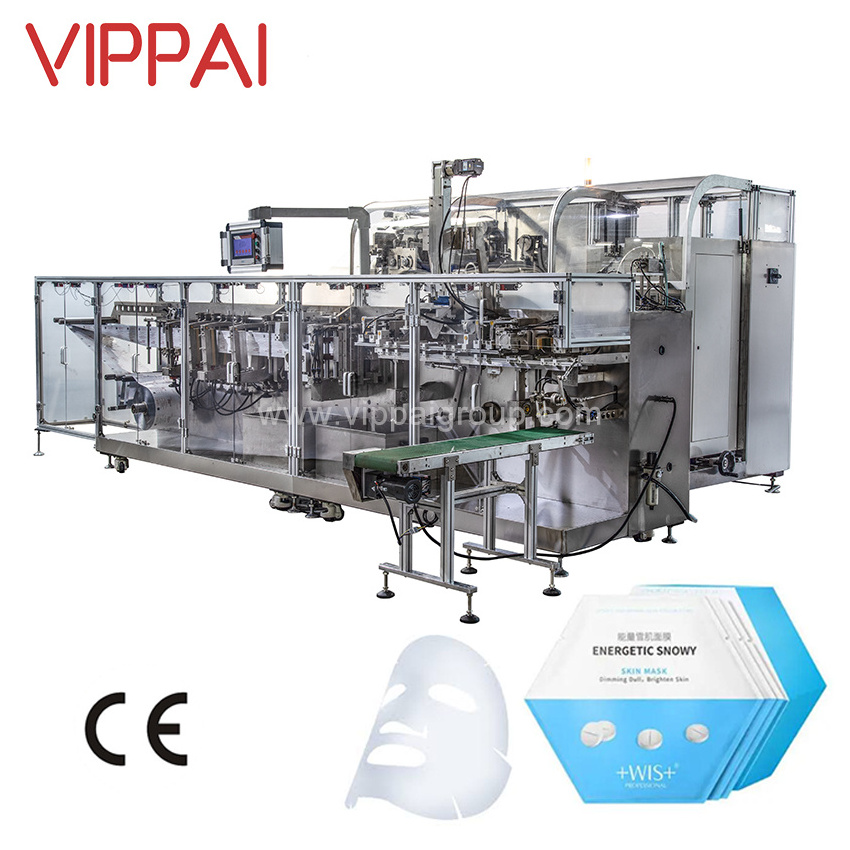

VPD400 Fully Automatic Facial Mask Packing Machine(In-Line Bagging)
Mask production packaging machine: fully meet the requirements of pharmaceutical grade GMP
production equipment, only the roll film feeding can complete the test, cut film forming, fold mask, online bag making (or prefabricated bag), add essence liquid, seal the bag and so on.
It can replace the punching machine, forming machine, folding machine, filling machine, sealing machine and other equipment in the traditional manual workshop production. It not only replaces the labor force of 8-15 people and the use area of workshop, but also effectively solves the secondary pollution problems in the production process of products.
Benifits
1. Automatic production of mask production packaging, saving 8-15 people's labor force.
2. The entire production process is completed in the shield to ensure that the mask is free from contamination.
3. The whole machine fully meets the requirements of GMP certification.
4. Save labor and save 20-30% of the cost of packaging materials.
5. Easy adjustment of changing bag type and wide applicability of convenient bag.
6. The whole machine adjusts the servo setting, which is stable and easy to use.
7. Balcony design, drive station, work station separation, safe and reliable.
8. The filling process can be inspected manually with naked eyes, or the black spots or unqualified products can be selected and added to the online visual inspection.
9. Use high-end metering pump filling precision high plus or minus 1 gram.
2. The entire production process is completed in the shield to ensure that the mask is free from contamination.
3. The whole machine fully meets the requirements of GMP certification.
4. Save labor and save 20-30% of the cost of packaging materials.
5. Easy adjustment of changing bag type and wide applicability of convenient bag.
6. The whole machine adjusts the servo setting, which is stable and easy to use.
7. Balcony design, drive station, work station separation, safe and reliable.
8. The filling process can be inspected manually with naked eyes, or the black spots or unqualified products can be selected and added to the online visual inspection.
9. Use high-end metering pump filling precision high plus or minus 1 gram.
Machine Feature
|
Model
|
VPD 400
|
|
|
|
|||
|
Packing Bag Style
|
Flat bag, corner pocket
|
|
|
|
|||
|
Packing Material
|
Composite materials such as composite film, aluminized film, polyethylene/polypropylene, etc.
|
|
|
|
|||
|
Packing Material Size
|
L: 100-225 mm W: 100-180 mm
|
|
|
|
|||
|
Packing Speed
|
50-70 bags/min
|
|
|
|
|||
|
Liquid Filling Capacity
|
0~50ml the essence / liquid addition accuracy is + 1ml, and the liquid can be used below the viscosity coefficient 20000cp
(CREST) |
|
|
|
|||
|
Power Supply
|
380V 50/60HZ 18KW, three phase
|
|
|
|
|||
|
Machine size
|
7300x2860x2230 mm
|
|
|
|
|||
|
Machine Weight
|
7000 kg
|
|
|
|
|||
This is the sheet mask die cut device, and first fold device, fold the mask in half.
This is second fold device, keeping folding the facial sheet mask.
This is third fold device,
fold the facial sheet mask again.
This is the heat sealing device, heat sealing the three sides of the mask packaging bag.
These 3 devices are bag open ,inserting sheet mask into the bag and liquid adding for the facial sheet mask.
Heat Sealing the top of the mask packaging bag,printing date and delivery the finished products.
