Quick Details
-
Dimension(L*W*H):
-
680*380*800mm
-
Weight:
-
75 KG
-
Model Number:
-
PUR-026
-
Maximum operating temperature:
-
180℃
-
Output line:
-
1-3
-
Usage:
-
Woodworking,printing, packaging, clothing, shoes, , furniture, etc
-
MOQ:
-
1 Set
-
Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
-
warranty period:
-
1 year
-
Maximum viscosity:
-
50000Cps
-
Glue machine power:
-
2.5kw
Quick Details
-
Voltage:
-
220v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KEQIRUI
-
Dimension(L*W*H):
-
680*380*800mm
-
Weight:
-
75 KG
-
Model Number:
-
PUR-026
-
Maximum operating temperature:
-
180℃
-
Output line:
-
1-3
-
Usage:
-
Woodworking,printing, packaging, clothing, shoes, , furniture, etc
-
MOQ:
-
1 Set
-
Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
-
warranty period:
-
1 year
-
Maximum viscosity:
-
50000Cps
-
Glue machine power:
-
2.5kw

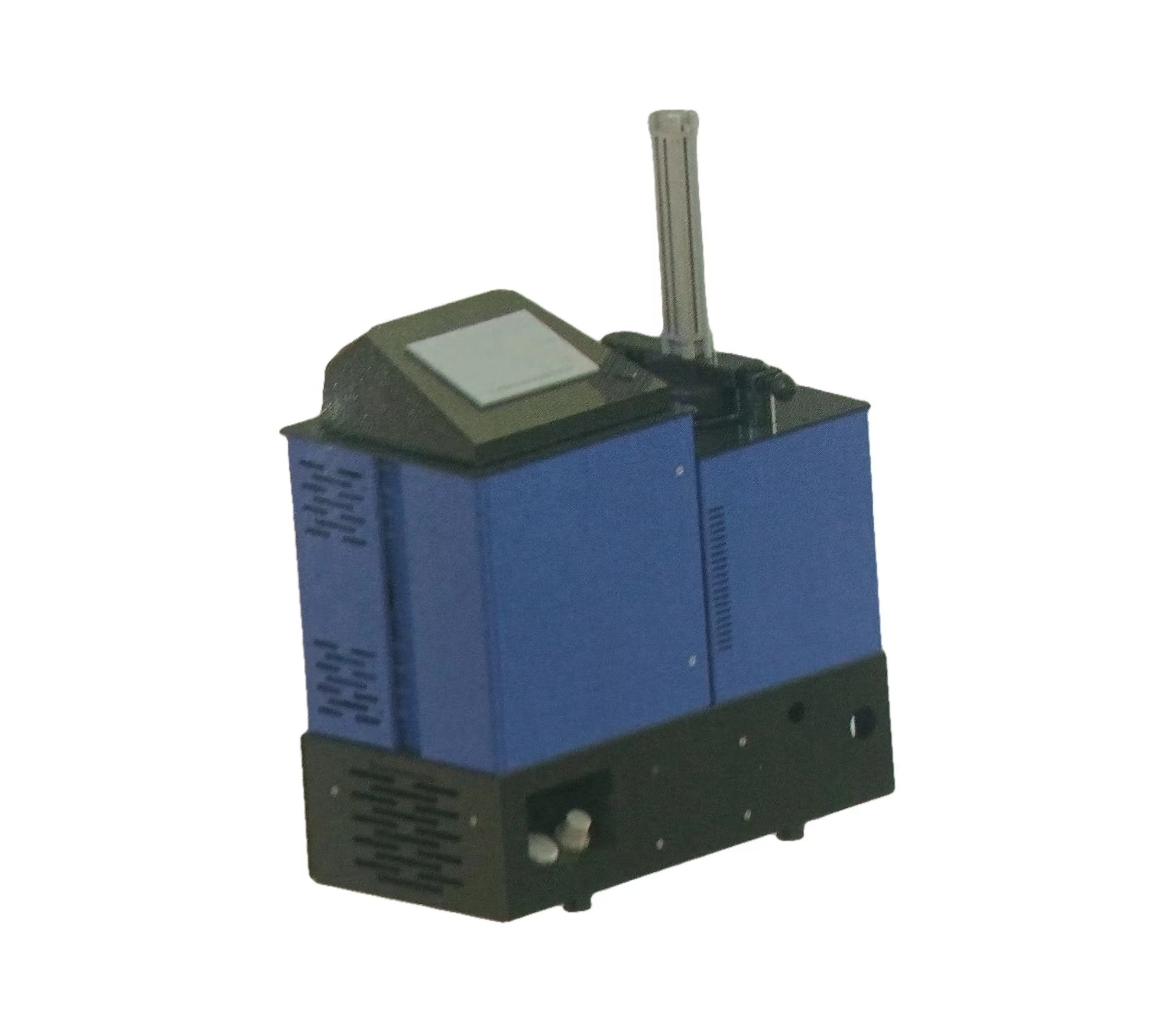

PUR-026 Keqirui PUR hot nordson hot melt glue machine
|
Product name |
PUR Hot melt adhesive machine |
|
Model / System |
PUR-026 |
|
Cylinder volume(L) |
2.5 |
|
Maximum working temperature |
180° C |
|
Maximum viscosity(Cps) |
50000 |
|
Number of rubber output |
1-3 |
|
Temperature control mode |
touch screen |
|
power |
2.5kw |
|
Dimensions |
680*380*800 |
|
Circuit requirements |
AC 220V/50HZ |
Advantage:
1. PUR hot-melt adhesive machine-adopts a gear motor controller and imported gear pump to precisely control the amount of glue.
2. Centralized control of PLC operation panel, easy to use and operate.
3. The cylinder and gear pump double work, and at the same time cooperate with the pressure regulating valve to make the glue output pressure can be adjusted to maximize.
4. The tightness of the rubber cylinder is strong, avoiding the internal materials contacting the air during the working process to cause deterioration.
5. It can be equipped with a single nozzle or flexible hot-melt hose, which can save costs by using one machine for multiple purposes.
6. Pur hot melt adhesive machine has strong internal pressure-holding ability and constant temperature ability, which eliminates and reduces gum carbonization and meets environmental protection and energy-saving requirements.
7. Forged high-pressure platen with imported technology, the melting speed is fast.
Equipment features:
1. The design of the whole machine is composed of two parts: mechanical and electrical control system, which has reasonable structure, convenient operation and maintenance, and increased internal space, so that there is enough space for heat dissipation in the electronic control box, greatly reducing the damage of electronic components and power loss.
2. The connection mode of the gear pump and the motor is connected by a universal joint. Its function is to make the angle between the two ends of the transmission shaft equal, to ensure that the instantaneous angular speed of the output shaft and the shaft input shaft is always equal, and to ensure the stability of the melter in high-speed operation. , Evenly.
3. The pressure plate is made of aluminum alloy precision casting and processed by precision processing technology. The surface layer is formed by DuPont Teflon deep penetration sintering treatment surface. It has the advantages of high coating strength and is not easy to fall off, reducing the phenomenon of hot melt adhesive carbonization. .
4. The main machine adopts high-precision return valve (return valve sensitivity ± 1bar). It is equipped with a locking function to avoid damage to equipment or personnel due to operational errors. The filter design of the whole machine adopts heavy multi-layer filtration to prevent PUR When the glue expires, it is suspected that it causes blockage, and the inside of the pressure plate is protected by overpressure of pur glue to ensure the stable and reliable operation of the system.
