YINLONG LTO 40Ah Lithium titanate battery for power Supply
YINLONG LTO 40Ah Lithium titanate battery for power Supply
YINLONG LTO 40Ah Lithium titanate battery for power Supply
YINLONG LTO 40Ah Lithium titanate battery for power Supply
YINLONG LTO 40Ah Lithium titanate battery for power Supply
YINLONG LTO 40Ah Lithium titanate battery for power Supply
YINLONG LTO 40Ah Lithium titanate battery for power Supply
YINLONG LTO 40Ah Lithium titanate battery for power Supply

YINLONG LTO 40Ah Lithium titanate battery for power Supply

FOB Reference Price: Get Latest Price
≥100 Pieces
US $34.28
≥500 Pieces
US $34
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Continous Discharging Rate:
0.1C-10C
Charge rate:
0.1C-10C
Cycle life:
more than 30000times
Weight:
1.24kg
Charge cut-off voltage:
2.8V
Discharge cut-off voltage:
1.5V
Type:
LTO

Quick Details

Place of Origin:
Guangdong, China
Model:
OSN-66160H-LTO40Ah
Size:
66*160mm
Continous Discharging Rate:
0.1C-10C
Charge rate:
0.1C-10C
Cycle life:
more than 30000times
Weight:
1.24kg
Charge cut-off voltage:
2.8V
Discharge cut-off voltage:
1.5V
Type:
LTO

Product Description

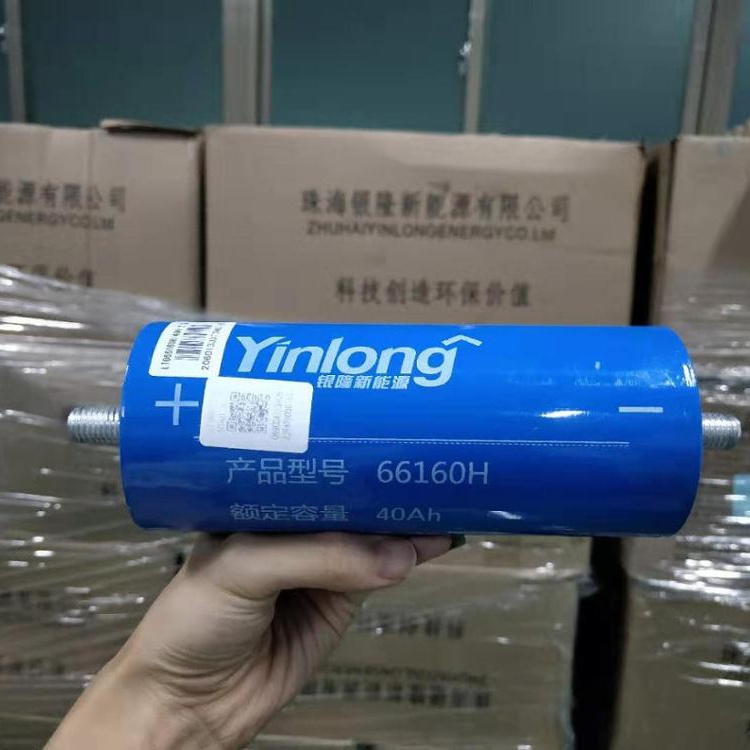

YINLONG LTO 40Ah Lithium titanate battery for power Supply

(All of our LTO cells are original from Yinlong,high quality)

In market ,also have large QTY refurbished cells ,the terminals are rewelded ,please check below picture,

we don't sell that ones .

Specification

Item

Parameters

Model

OSN-LTO-66160H

Materials

LTO

Nominal capacity

40Ah

Nominal voltage

2.3 V

Dimension

Length: 160±1.5mm

Diameter: 66±1mm

Weight

1.24±0.1kg

Internal Resistance

≤1mΩ

Operating voltage

Charge cut-off voltage

2.8 V

Discharge cut-off voltage

1.5 V

Standard charge/discharge current

Charge current

1C(40 A)

Discharge current

1C(40A)

Maximum charge current

10C

Maximum discharge current

10C

Cycle life

30000 times

Operating Thermal Ambient

Charging

-50℃~ 65℃

Discharging

-50℃~ 65℃

Storage Thermal Ambient

Short term(within 1 month)

-20℃~ 45℃

Short term(within 1 year)

-20℃~ 20℃

LTO Advantages
  • Faster charge: 10mins fully charged
  • Higher discharge rate: Up to 10C
  • Wide working temperature range: -50°C ~ 65°C

  • Super long cycle life:  over 30,000 times

Other Features
  • Discharge Curve at 1C
  • Discharge curve at 0.25C
