Quick Details
-
Color Rendering Index(Ra):
-
75
-
Product Weight（kg）:
-
10.8
-
CRI (Ra>):
-
75
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRISE
-
Model Number:
-
SU-FQP500
-
Product name:
-
Outdoor Modular High Mast Led Floodlight 500w 600w 400w 300w 200w 100w
-
Type:
-
Square, round
-
Control Mode:
-
0-10V, PWM (optional)
-
LED Driver:
-
Constant current driver
-
Warranty:
-
5 years
-
IP Grade:
-
IP65 Wateproof
-
Installation:
-
Surface Mounted, bracket, wall
-
Lamp Body Material:
-
Aluminum 6063
-
Beam Angle:
-
20, 40, 60, 90, 140*100
-
Application:
-
Car tunnel, street, highway
Quick Details
-
Color Temperature(CCT):
-
6000K-6500K (Cold White)
-
Lamp Luminous Flux(lm):
-
45000
-
Warranty(Year):
-
5-Year
-
Color Rendering Index(Ra):
-
75
-
Product Weight（kg）:
-
10.8
-
CRI (Ra>):
-
75
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRISE
-
Model Number:
-
SU-FQP500
-
Product name:
-
Outdoor Modular High Mast Led Floodlight 500w 600w 400w 300w 200w 100w
-
Type:
-
Square, round
-
Control Mode:
-
0-10V, PWM (optional)
-
LED Driver:
-
Constant current driver
-
Warranty:
-
5 years
-
IP Grade:
-
IP65 Wateproof
-
Installation:
-
Surface Mounted, bracket, wall
-
Lamp Body Material:
-
Aluminum 6063
-
Beam Angle:
-
20, 40, 60, 90, 140*100
-
Application:
-
Car tunnel, street, highway

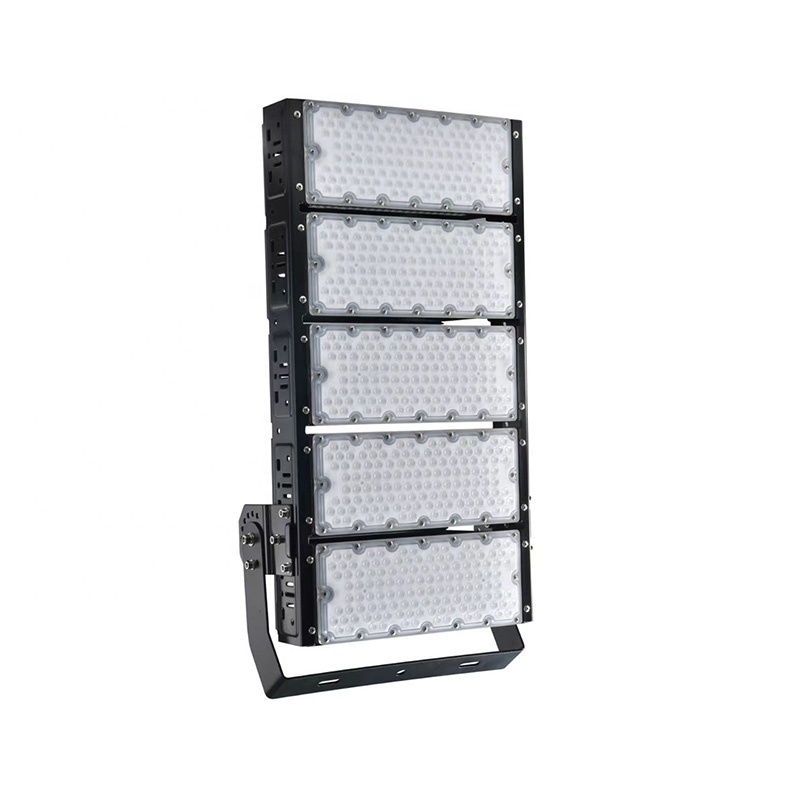

Highway Driving Security Outdoor Modular High Mast Led Floodlight 500w 600w 400w 300w 200w 100w for Car Tunnel Lighting
Product Description
1. SUPER BRIGHT & ENERGY SAVING
- SUNRISE outdoor security 500w LED tunnel lamp uses super bright & low lumen depreciation SMD 3030/5050 LED chip source to make 75000lm, replacing 2500W traditional incandescent light bulb, saving more than 90% of power. It adopts the most advanced patch technology and convex design to offer brighter lighting and adjustable bigger range of illumination.
2. CUSTOMIZATION SERIVCE
- 100w, 200W, 300W, 400W, 500W and 600w Tunnel Lamp can be customized to 0-10V / Dali dimming, PWM dimmable, and microwave radar sensor as required.
3. DURABLE ALUMINUM BODY
- Outdoor floodlight tunnel street lamp adopts integrated fine aluminum as lamp body with better heat running, corrosion-proof to delay the working time of the light.
4. OPTICAL PC COVER WITH LENS
- Taking 90% high-transparent PC cover with optical lens, able to choose different beam angles (20
°, 40
°, 60
°, 90
° and 140*100
°). The PC can be protected again yellowing and with better weather ability.
5.
IP65 WATERPROOF
- This Outdoor tunnel light's aluminium 6063 makes IP65 weatherproof rating, heat resistant, frost resistant, corrosion-proof, and capable to resist all extreme serious weather conditions.
6. WIDELY APPLICATIONS
6. WIDELY APPLICATIONS
- The bracket can be adjusted 180
°
to multiple angles, suitable for many fields such as stadium sport court, highway tunnel, high pole street light, plaza, wharf, logistic warehouse etc.
Specification
|
Product Name
|
Outdoor Led Tunnel Flood Lights
|
|
|
||
|
Model
|
SU-FQP300W
|
SU-FQP400
|
SU-FQP500
|
||
|
Product Size (mm)
|
L366*W436*H142
|
L366*W536*H142
|
L366*W686*H142
|
||
|
Work Voltage
|
AC85-265V, 50/60Hz
|
|
|
||
|
Rated Power
|
300W
|
400W
|
500W
|
||
|
Luminous Flux
|
42000-45000lm
|
56000-60000lm
|
70000-75000lm
|
||
|
Light Efficiency
|
140-150lm/W
|
|
|
||
|
Led Beads
|
1W SMD3030 / 5050
|
|
|
||
|
Color Temperature (K)
|
2700K, 3000K, 4500K, 5500K, 6500K
|
|
|
||
|
Lamp Body Material
|
Aviation aluminum
|
|
|
||
|
Cover Mast
|
PC with lens
|
|
|
||
|
CRI
|
>0.8
|
|
|
||
|
PF
|
>0.9
|
|
|
||
|
Surge Protection
|
6KV-10KV
|
|
|
||
|
Driver Mode
|
Constant current driver
|
|
|
||
|
Beam Angle (optional)
|
20°, 40, 60°, 90°, 140*100°
|
|
|
||
|
Work Temperature
|
-40 ~ +50°C
|
|
|
||
|
Storage Temperature
|
-50 ~ +60°C
|
|
|
||
|
Grade of Protection
|
IK08 / IP65
|
|
|
||
|
Working Time
|
>50000H
|
|
|
||
|
Warranty
|
3 - 5 Years
|
|
|
||
|
Control Mode
|
0-10V, Dali, PWM or RGB
|
|
|
||
|
Packing
|
1pc/box
|
1pc/box
|
1pc/box
|
||
Applications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
