anti vibration double e auto car door epdm/pvc rubber/silicone foam products seals profile protection gasket edge trim parts

FOB Reference Price: Get Latest Price

≥1000 Meters

US $0.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: C-1

Material:: EPDM

Application:: Car

Size:: Customize Size

MOQ:: 100 Meters

OEM:: Aceeptable

Certificate:: ISO 9001

Shape:: Custom Shape

Packing:: Box

Keyword:: Weather Sealing Strip

Feature:: Durable

Quick Details

Processing Service:: Cutting, Welding, Extruding

Place of Origin:: HEB

Brand Name:: hengcheng

Model Number:: C-1

Material:: EPDM

Application:: Car

Size:: Customize Size

MOQ:: 100 Meters

OEM:: Aceeptable

Certificate:: ISO 9001

Shape:: Custom Shape

Packing:: Box

Keyword:: Weather Sealing Strip

Feature:: Durable

Products Description

Specification

Product Name	seal strip,trim,channel,edge,gaskets
Material	brush sponge tpe plastic pu foam upvc silicone pvc rubber strip seals
Sample	free
Place of Origin	hebei，China
Color	as customer's requirement
Processing Service	Moulding, Cutting
Size and Design	According to the 2D or 3D drawing
Certificate	ISO9001:2008, SGS
Production Method	Extrusion
Shipping port	Qingdao,Shanghai
MOQ	1000m
Payment terms	T/T, L/C, West Union
Packing details	according to customers’ requirement.

Details Images

Industrial EPDM Rubber with Sponge Bulb Extrusion Seal with Metal Carrier

Material: sponge EPDM + PVC adhesive together
Insert: metal carrier (steel or wire carrier)
Hardness: EPDM sponge rubber from 15shore A to 25shore A, pvc 70shore A
Density: sponge rubber 0.6g/cm3
Shape: according to drawing or sample required
package: 50m or 100m per roll, 1 or 2 rolls per carton

EPDM co extrusion seal strip main material is black dense EPDM and sponge EPDM with metal carrier (steel or wire carrier) insert, metal clips and gripping tooth can provide a better gripping, which mainly used on automobile, industry, window, door, construction etc. Our co-extruded rubber profiles can be extruded into various shapes and sizes. Currently there are over 1000 kinds of mold for you choose, of course also can be do according to your drawing. Custom EPDM rubber compound profile with very good compression set, high tensile strength, excellent weather, ozone, UV, water, steam, high and low temperature resistance.

PVC edge guard trim seal rich color

Material: PVC
Applications: automotive, electrical cabinet, packing etc
Temperature: -40°C to +70°C
Color: black, red, blue, gray, green, yellow etc, give us pantone No. will be ok
Size: many exsit moulds for you choose, also accept OEM, send us drawing or sample
Package: 50m or 100m per roll, 1 or 2 rolls into a box

PVC edge guard trim seal is a plastic PVC trim seal with individual internal metal clips and gripping tongue to provide a stronger grip. PVC edge guard also named edge protector, edge protection strip, decorative edge seals, trim seal, etc. It simplify the finishing of unfinished edges, neutralize respectively cover sheet metal edges. Further more, they have desired effect of decoration. PVC temperature range: -40°C to +70°C PVC material with good properties, such as perfect stability; extremely good resistance to weather, ozone and UV, excellent to water, steam and chemicals etc. Flexible pvc edge guard trim seal are widely used on automotive decorative sealing systems, electrical cabinet etc, it is very popular because of rich color and easy to install. we also accept OEM, sizes, color according drawing or samples to do.

Extruded epdm glazing rubber gasket seal, locking rubber gasket

Material: EPDM
Hardness: 65shore A to 80 shore A
Density: 1.35g/cm3
Elongation: 300%
Tensile Strength: >=7Mpa
Package: 50M or 100M per roll

Automotive EPDM glazing rubber gasket are also known as glass rubber weatherstrips, window gaskets, glazing seals and window seals. These rubber seals main material is EPDM, material with excellent weather, ozone, uv resistance, high and low temperature resistance, with good tensile strength. It’s unique design to be customizable to any fit in order to quickly seal a window. They are compatible for any vehicle and the material is able to fit any size window. There is a one piece and two-piece option. The one piece sealant includes a locking strip to secure it in place while the two-piece sealant uses a separate locking strip in the middle of the part in-between the glass and body to secure the glass to the panel. Glazing channel rubber weatherstrips also accept OEM, according your drawing to do.

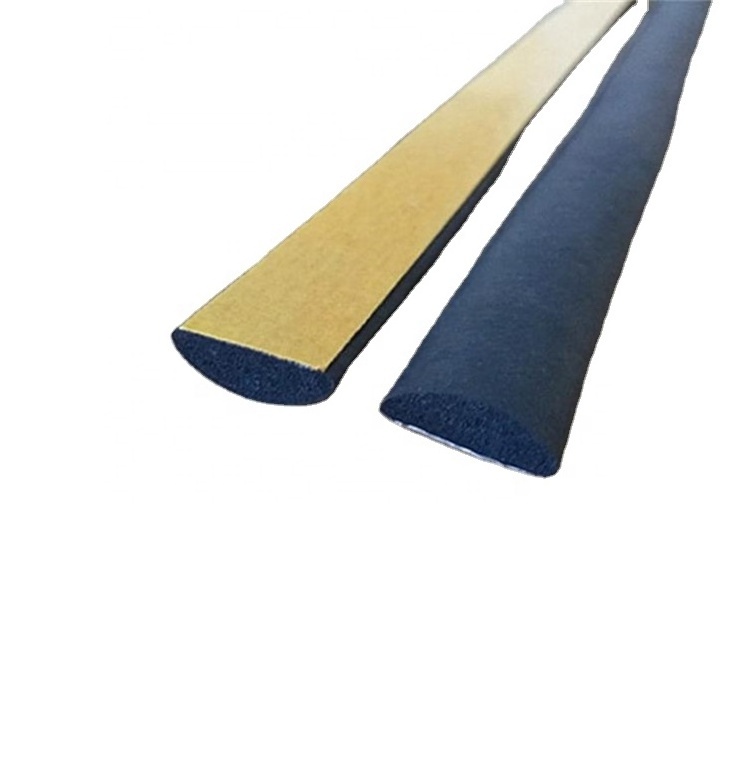

epdm self adhesive door rubber seal China manufacturer

Tensile Strength: 2.8Mpa
Elongation at break: 200%
Density: 0.5g/cm3 to 0.65g/cm3
Hardness: 10 duro to 30 duro
Brittle temperature: -38°C
Color: Black
Size: according your drawing
Package: 50m or 100m each roll

3M Self adhesive door rubber seal produced by sponge EPDM backed with 3M adhesive tape, material with excellent weather and ozone resistance, chemical resistance etc, due to it’s cheap price and material good property, EPDM rubber widely used in various industries. self adhesive epdm door rubber seals widely used in various of industries, such as auto parts, doors, windows, containers, machines, cabinets, construction, ship etc. 3M adhesive tape price has is not very cheap, but with very strong stickness, and can widely used in various industry, such as steel, glass, electric, auto etc. Adhesive adhesive tape can be choose, such as 3M4229P, 3M5108, 3MVHB, 3M9448, PE sponge tape, fiberglass mesh tape, transparent acrylic tape etc.

Extruded Industrial Profile

Material: EPDM/Neoprene/Nitrile
Hardness: 65shore A
Density: 1.35g/cm3
Elongation: 300%
Tensile Strength: >=7Mpa
MOQ: 1000M
Package: 50M each roll or according customer’s required

Our rubber extrusions also can be do according you required cut to specific length, vulcanized hot joint to a frame or a ring, self adhesive tape, punch hole etc. We provide wide range of rubber seal strip, such as extruded rubber sealing strips, sponge rubber profiles, dense rubber extrusions, flocking sealing strip, glazing rubber channel, edge trim seals etc. All of rubber products widely used on industry, window, door, automobile, truck, car, wind power, container, electrical cabinet etc.

Extruded EPDM dock rubber fenders, small D shape rubber fender

Material: EPDM
Hardness: 65shore A to 85shore A
Specification: cut, drill
Package: several pcs into bags and package on pallet
Size: according to your drawing
Application: ship or dock

HC can according customer’s drawing to produce, with the best quality rubber. All rubber fenders can be cut to specific length, drilled etc. Rubber dock fenders are simple big D shaped rubber extrusions. Choose epdm material, because epdm rubber with good resistance to weather, UV, ozone, water and chemicals… EPDM D rubber fenders installed on the ship or dock, in order to absorb the collision energy between the ship and the wharf when landing or mooring, to protect the ship and dock from damage.
