Quick Details
-
Video Input:
-
8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
-
Video Compression:
-
H.265 Pro/H.265/Scene-Adaptive Bitrate Control coding
-
Video Output:
-
HDMI/VGA up to 1080p/60 Hz
-
Audio Input/Output:
-
8-ch via coaxial cable/1-ch via HDMI
-
Supported Camera Types:
-
Support TVI/AHD/CVI/CVBS/IPC input
-
SSD Capacity:
-
Built-in 1024 GB eSSD (960 GB available)
-
Network Interface:
-
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
-
Motion Detection 2.0:
-
8CH Motion detection 2.0, human and vehicle detection
-
USB:
-
2x USB 2.0
-
Keyword:
-
3K 5MP DVR recording & playback
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ANNKE
-

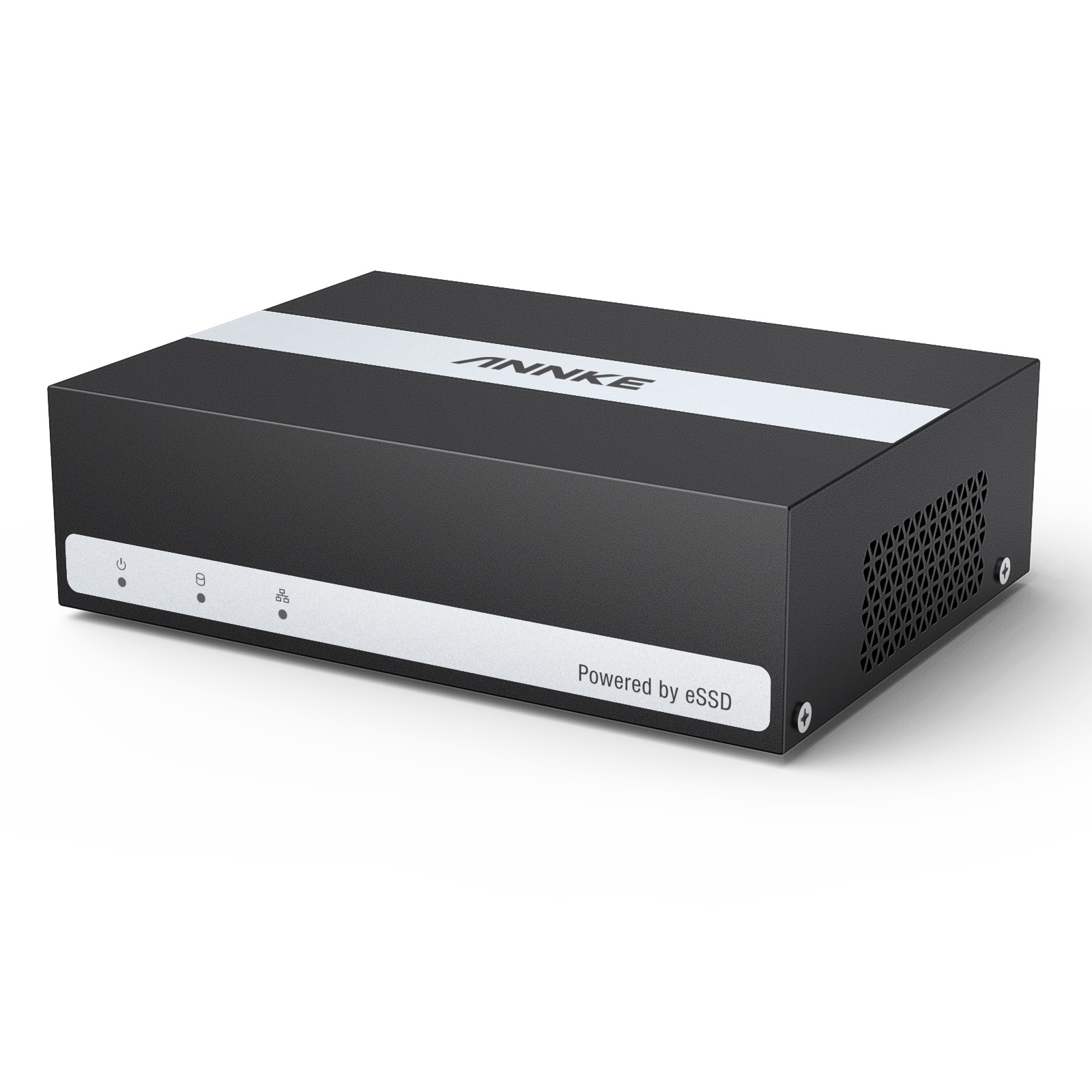

Model Number:
-
DT81BH
-
Video Input:
-
8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
-
Video Compression:
-
H.265 Pro/H.265/Scene-Adaptive Bitrate Control coding
-
Video Output:
-
HDMI/VGA up to 1080p/60 Hz
-
Audio Input/Output:
-
8-ch via coaxial cable/1-ch via HDMI
-
Supported Camera Types:
-
Support TVI/AHD/CVI/CVBS/IPC input
-
SSD Capacity:
-
Built-in 1024 GB eSSD (960 GB available)
-
Network Interface:
-
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
-
Motion Detection 2.0:
-
8CH Motion detection 2.0, human and vehicle detection
-
USB:
-
2x USB 2.0
-
Keyword:
-
3K 5MP DVR recording & playback
Product Description
Main features:
· Up to 3K/5MP Lite high definition live viewing
· Up to 3K Lite/5MP/5MP Lite recording & playback
· Built-in 1024 GB eSSD， 2 weeks continuous recording for 8 channle camera
· Deep learning-based motion detection 2.0 for all analog channels
· Advanced H.265 Video Compression
· Aduio via coaxial cable
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
Specification
|
Video Compression
|
H.265 Pro/H.265/Scene-Adaptive Bitrate Control coding
|
|
Video Input
|
8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
|
|
Video Output
|
HDMI/VGA up to 1080p/60 Hz
|
|
Audio Input/Output
|
8-ch via coaxial cable/1-ch via HDMI
|
|
Supported Camera Types
|
1)TVI Input:
3K@20fps,5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@60/50/30/25 fps; |
|
|
2)AHD Input
5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps; |
|
|
3)CVI Input
5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps; |
|
|
4)CVBS
Support |
|
Analog HD Playback Resolution
|
Main stream:
When 1080p Lite mode not enabled: For 5 MP stream access: 5 MP Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 1080p stream access: 1080p/720p@15 fps; WD1/4CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 5 MP/3K Lite@12 fps; 4 MP Lite/@15 fps; 1080p Lite/720p/WD1/4CIF@25 fps (P)/30fps (N) |
|
IP Camera Input
|
2-CH
|
|
IPC Recording Resolution
|
Up to 6MP
|
|
IPC Playback Resolution
|
Up to 6MP
|
|
Max Playback Channel
|
4CH
|
|
Motion Detection 2.0(Human/Vehicle Analysis)
|
Up to 8CH,
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights |
|
ONVIF
|
Support
|
|
Total Bandwidth
|
96 Mbps，Incoming bandwidth: 8 Mbps
|
|
Remote Connection
|
64
|
|
Network Protocol
|
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
|
|
Network Interface
|
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
|
|
SSD
|
Build in SSD
|
|
SSD Capacity
|
Built-in 1024 GB eSSD (960 GB available) Note:
The device can store about 2 weeks videos for 8-ch analog cameras (default parameters),this estimation is for reference only. |
|
USB
|
USB 2.0 X2
|
|
Working Temperature
|
14 °F – 113 °F/-10 °C – 45 °C
|
|
Dimensions (W x D x H)
|
172 X 121.6 X 46 mm （6.7x4.79x1.81inch）
|
|
Weight
|
≤0.5Kg （With eSSD,1.1lb.)
|
|
Operating Power
|
DC12V，1A , ≤ 8.2 W （With eSSD)
|
