Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customize
-
Weight:
-
110 kg
-
Application:
-
Poultry Farm
-
Product name:
-
Animal Feed Pellet Plant
-
Name:
-
Chicken Poultry Feed Making Machine
-
Usage:
-
Animal Poultry Livestock Feed Making Machine
-
Function:
-
Aniaml Feed Puffed Pellet Machine
-
Raw material:
-
Wheat Bran Hay Grass Straw
-
After-sales Service Provided:
-
Video Technique Support
-
Keywords:
-
Poultry Feed Processing Equipment
-
Capacity:
-
100---3500kg/h
-
Final product:
-
Animal Feed Poultry Feed Mill
Quick Details
-
Max. Capacity:
-
1ton/h
-
Place of Origin:
-
SHN
-
Brand Name:
-
Retain
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customize
-
Weight:
-
110 kg
-
Application:
-
Poultry Farm
-
Product name:
-
Animal Feed Pellet Plant
-
Name:
-
Chicken Poultry Feed Making Machine
-
Usage:
-
Animal Poultry Livestock Feed Making Machine
-
Function:
-
Aniaml Feed Puffed Pellet Machine
-
Raw material:
-
Wheat Bran Hay Grass Straw
-
After-sales Service Provided:
-
Video Technique Support
-
Keywords:
-
Poultry Feed Processing Equipment
-
Capacity:
-
100---3500kg/h
-
Final product:
-
Animal Feed Poultry Feed Mill
Production Photos:

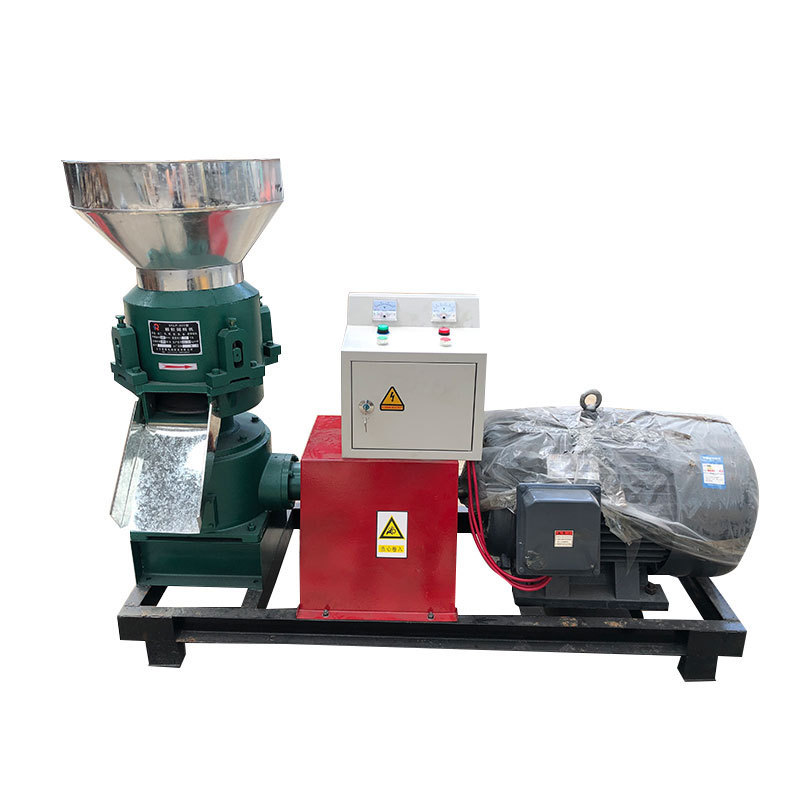

Feed Pellet Machine
Feed Pellet Machine Function:
Mainly suitable for rabbit, fish, duck, chicken, shrimp, pig, cattle, sheep and particle processing, widely used in industry,plastic particles, organic fertilizer particles, wood particles and so on.
Product Features:
1.Household small pellet feed machine cattle, sheep, chicken and duck feed reserve processing equipment multi-functional feed pellet machine.
2.Corn can be directly added without grinding. The surface of granular feed processed by this machine is smooth and smooth, and the hardness is moderate.
3.The particle composition is uniform, the shape is neat, and the diameter of the particle is divided into a variety of types.When users order, they can choose according to the needs of different long periods of breeding animals.
4.It can kill microorganisms and parasites that cause disease by squeezing. Due to the low water content of pellet feed, easy storage, in water for a long time to keep the original state, greatly improve the utilization rate of feed.
3.The particle composition is uniform, the shape is neat, and the diameter of the particle is divided into a variety of types.When users order, they can choose according to the needs of different long periods of breeding animals.
4.It can kill microorganisms and parasites that cause disease by squeezing. Due to the low water content of pellet feed, easy storage, in water for a long time to keep the original state, greatly improve the utilization rate of feed.
Zoological Park
Farmland
S tockbreeding
Family Farm
Large-scale Breeding Farm
Feed Mill
Grinding Disc
Different particle size choose different grinding disc,
Various types of discs can be selected
Particle Size
Under the extrusion roll from the die hole pressure granulation, can be very convenient to adjust the length of the particle, its simple structure, small footprint, low noise, processing into granular feed has a lot of advantages.
Selection of Grinding Disc:
2MM Disc
suitable for: Small birds, small fish, etc.
3MM
Disc
suitable for: Young rabbits, young chickens, young ducks, pigeons, grass carp and other small animals.
4MM
Disc
suitable for: Adult rabbits, chickens, ducks, geese, pigeons, peacocks, etc.
5-6MM
Disc
suitable for: Pigs, cattle, sheep, dogs, etc.
7-12MM
Disc
Suitable for: Bait, large birds and other large livestock.
If you have special size requirements can contact customer service, we can be customized.
Production Details
FORMWORK AND CLOSING SHAFT
Wear-resistant alloy forging raw material, carburizing heat treatment process, service life of more than 100,000 kg
SIZES OF DISC APERTURE: 2MM-12MM
The aperture of the grinding disc is varied, and the suitable aperture can be selected according to the feeding of different animals and different capacity.
Stable and durable, refined steel, after high temperature quenching treatment, more durable than ordinary materials
COPPER CORE MOTOR
High power, strong power, fast heat dissipation, long service life
WIDEN AND ENLARGE THE FEED PORT
The need to make feed, raw materials can be poured into feed port
DIFFERENT VERSION FOR CHOOSE
Different motor and model.
Diesel version, belt type, drive shaft type, back wheel type granule machine can be used with other equipment to meet the needs of different customers.
|
Feed Pellet Machine Parameter
|
|
|
|
|
|
|
|
|
||||||||
|
VERSION
|
MODEL
|
Q'TY OF CLOSING SHAFTS(PCS)
|
CAPACITY(KGS/H)
|
DISC DIAMETER(MM)
|
DIAMETER OF DISC HOLE(MM)
|
Diesel Engine/Motor
|
WEIGHT(KGS)
|
VOLUME(MM)
|
||||||||
|
DIESEL VERSION GRANULE MACHINE
|
RT-120A
|
2
|
50-100
|
120
|
4
|
6 HP HAND-OPERATE
|
110
|
1250*520*680
|
||||||||
|
|
RT-160 CLUTCH
|
2
|
150-200
|
160
|
4
|
10HP HAND-OPERATE
|
180
|
1350*550*760
|
||||||||
|
|
RT-200 CLUTCH
|
2
|
150-300
|
198
|
4
|
15HP ELECTRIC START
|
260
|
1700*650*850
|
||||||||
|
|
RT-250 BELT TYPE
|
2
|
300-500
|
248
|
4
|
25HP ELECTRIC START
|
350
|
1900*650*1000
|
||||||||
|
|
RT-300 BELT TYPE
|
3
|
500-1000
|
298
|
4
|
40HP ELECTRIC START
|
540
|
2100*800*1220
|
||||||||
|
DRIVESHAFT VERSION GRANULE MACHINE
|
RT-160
|
2
|
100-150
|
160
|
4
|
5.5KW
|
120
|
1050*420*650
|
||||||||
|
|
RT-200
|
2
|
150-300
|
198
|
4
|
11KW
|
240
|
1100*450*680
|
||||||||
|
|
RT-250
|
3
|
300-500
|
248
|
4
|
18.5KW
|
340
|
1300*500*880
|
||||||||
|
|
RT-300
|
4
|
500-1000
|
298
|
4
|
22KW
|
460
|
1350*530*880
|
||||||||
|
|
RT-350
|
4
|
800-1500
|
348
|
4
|
30KW
|
560
|
1600*650*1200
|
||||||||
|
|
RT-400
|
4
|
1000-2000
|
398
|
4
|
45KW
|
880
|
1760*650*1300
|
||||||||
|
Remark: Color, size, voltage, customer requirements can be customized
|
|
|
|
|
|
|
|
|
||||||||
Zaozhuang Retain Manufacturing&International Trading Co.,Ltd
Instroduction
Our company is a leading manufacturer in China with more than 20 years of professional experience.Specializing in Plastic Auxiliary Machinery, Refrigeration and Cooling Equipment, Agricultural Equipment, Take-up Machine and Shears,Bends ,Rolling Machines. The company has set up three factories in Guangzhou, Zhejiang and Jiangsu.We have a professional R & D team and after-sales team, which can fully meet the requirements of different customers, and we will immediately solve the customer feedback problems. our products exported to United States,Italy,Russia,Japan, European countries and are widely praised by global clients
.
FAQ
Are you manufacture?
Sure, We are one of leading manufacturers with 20 years of professional experience in China
Do you have Stock productions to sell?
Yes,it is .But we also offer OEM/ODM service. Please send us your request if you are interested.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedual for punctual delivery.
(2) 20years production experience. We have over 20 years experience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process.
