Quick Details
-
Weight (KG):
-
5000 KG
-
Power (kW):
-
20
-
Applicable Industries:
-
Furniture factory, furniture, wood, woodworking
-
Application:
-
Wood door frame assembling
-
Feature:
-
Easy Opreation
-
HF power:
-
20KW
-
Working size:
-
2460mm*960mm
-
Vertical pressure:
-
6T
-
Lateral pressure:
-
25T
-
Longitudinal pressure:
-
4T
-
Dimensions:
-
3500mm*1350mm*1950mm
-
After-salesService Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JYC
-
Machine Type:
-
wood frame assembly machine
-
Weight (KG):
-
5000 KG
-
Power (kW):
-
20
-
Applicable Industries:
-
Furniture factory, furniture, wood, woodworking
-
Application:
-
Wood door frame assembling
-
Feature:
-
Easy Opreation
-
HF power:
-
20KW
-
Working size:
-
2460mm*960mm
-
Vertical pressure:
-
6T
-
Lateral pressure:
-
25T
-
Longitudinal pressure:
-
4T
-
Dimensions:
-
3500mm*1350mm*1950mm
-
After-salesService Provided:
-
Online support

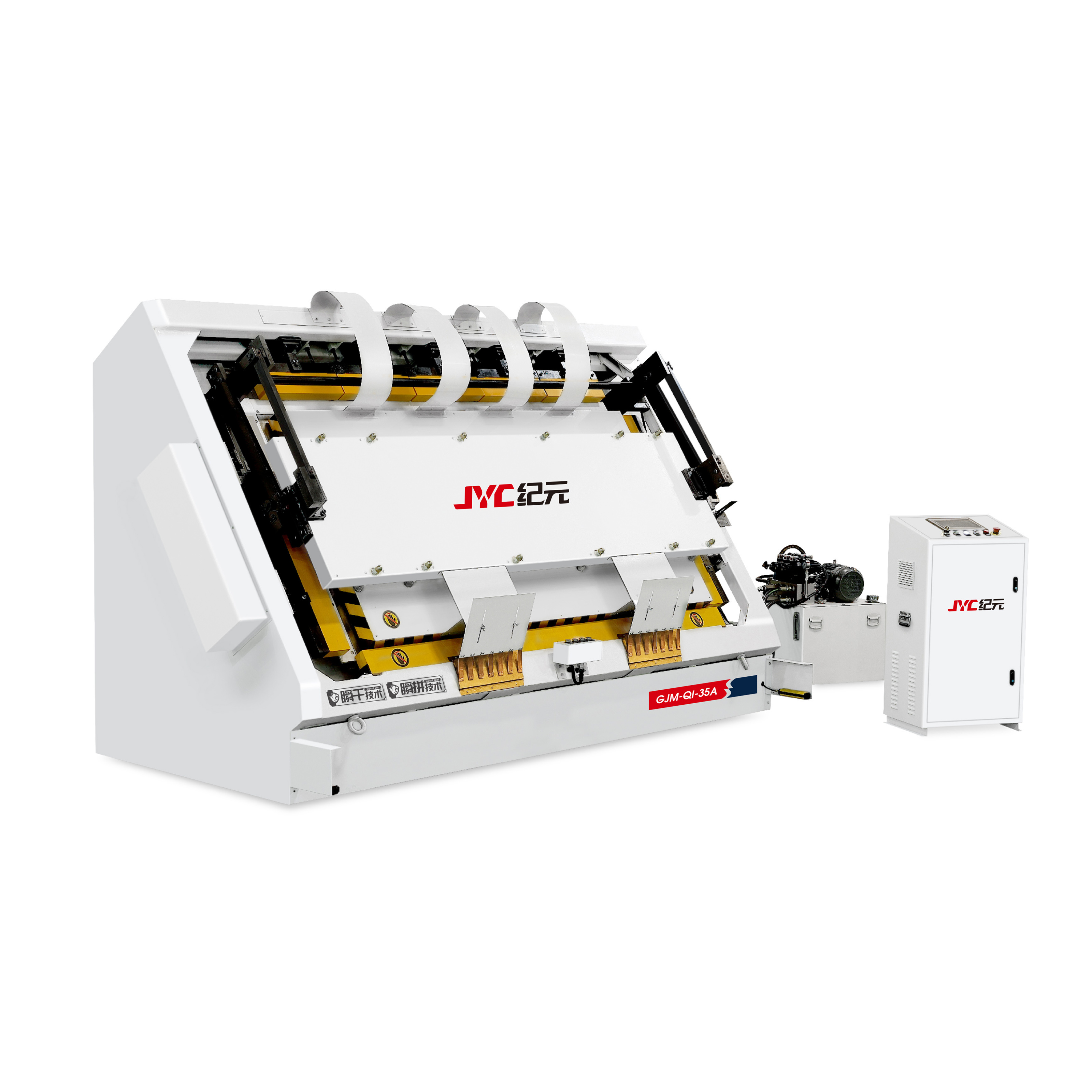

JYC HF Precision Slant Frame Assembly Machine
Feature:
(1) High-frequency heating, only heating for glue joints. efficient;
(2) Three-dimensional oil pressure; through the combination of trapezoidal pressure feed and high-frequency magnetic field strength, the splicing is firmer;
(3) One machine has multiple functions, and can be assembled, joined together, and sealed with multiple functions.
|
Model No.
|
GJM-QI-35A-JY
|
GJM-QI-35B-JY
|
GJM-QI-40A-JY
|
||
|
Power
|
AC 380V,50Hz 3phases 5wires
|
|
|
||
|
HF Power
|
20KW
|
20KW
|
20KW/30KW
|
||
|
Frequency
|
6.78MHz
|
|
|
||
|
Working size
|
2460mm*960mm
|
2460mm*1250mm
|
3050mm*1250mm
|
||
|
Step up way
|
Three-way hydraulic
|
|
|
||
|
Vertical pressure
|
6T
|
6T
|
6T
|
||
|
Lateral pressure
|
25T
|
25T
|
30T
|
||
|
Longitudinal pressure
|
4T
|
4T
|
4T
|
||
|
Dimensions
|
3500mm*1350mm*1950mm
|
3500mm*1650mm*2100mm
|
4100mm*1350mm*2100mm
|
||
We can provide customized services according to the different needs of customers.
The predecessor of Foshan Jiyuan Equipment Co., Ltd.-Shijiazhuang Development Zone Jiyuan High-Frequency Electric Company was established in 1993. The company has been committed to the research and development, manufacturing, and sales of high-frequency dielectric heating technology and equipment. Has 30 years of technology accumulation and rich manufacturing experience.
So far, there are more than ten series of products, dozens of specifications, and models of high-frequency dielectric heating equipment, the main products: high-frequency (high-frequency) generator, high-frequency panel machine, high-frequency frame machine, high-frequency wood vacuum dryer, high-frequency bending wood press, high-frequency composite press, etc.
In addition to the above-stereotyped products, Jiyuan Company can provide personalized high-frequency stand-alone equipment and intelligent production lines according to the actual needs of users. Our products are all over the world and have been exported to more than 40 countries and regions in Europe, America, Africa, Asia, and Oceania.
1. Are you a manufacturer or a trading company?
We are the professional HF woodworking machine manufacture with 30 years’ experience in China.
2. How long is your delivery time?
The normal delivery is 30 days, and the stock is available within 7 days. You can contact for detailed instructions.
3. What is your payment method?
30% deposit in T/T advance payment and 70% of the balance before shipment.
4. How long is the warranty? Does your company provide spare parts?
One year. Provide you with spare parts for free.
5. If I need to customize different working sizes, can you help us produce them?
Yes, we can help you build a complete production line and provide relevant professional advice.
