Quick Details
-
Brand Name:
-
Bluesky
-
Dimension(L*W*H):
-
5.85x2.23x2.15&11.2x2.23x2.15
-
Weight:
-
5000
-
Product name:
-
Mobile Gas Station
-
Application:
-
Oil
-
Usage:
-
Filling
-
After-sales Service Provided:
-
After-sales Service
-
Function:
-
Widely Used
-
Color:
-
White
-
After Warranty Service:
-
Online Support Spare Parts
-
Advantage:
-
Easy Moving
Quick Details
-
Capacity:
-
13000L/26000L
-
Max Working Pressure(MPa):
-
1.5 MPa
-
Place of Origin:
-
China
-
Brand Name:
-
Bluesky
-
Dimension(L*W*H):
-
5.85x2.23x2.15&11.2x2.23x2.15
-
Weight:
-
5000
-
Product name:
-
Mobile Gas Station
-
Application:
-
Oil
-
Usage:
-
Filling
-
After-sales Service Provided:
-
After-sales Service
-
Function:
-
Widely Used
-
Color:
-
White
-
After Warranty Service:
-
Online Support Spare Parts
-
Advantage:
-
Easy Moving

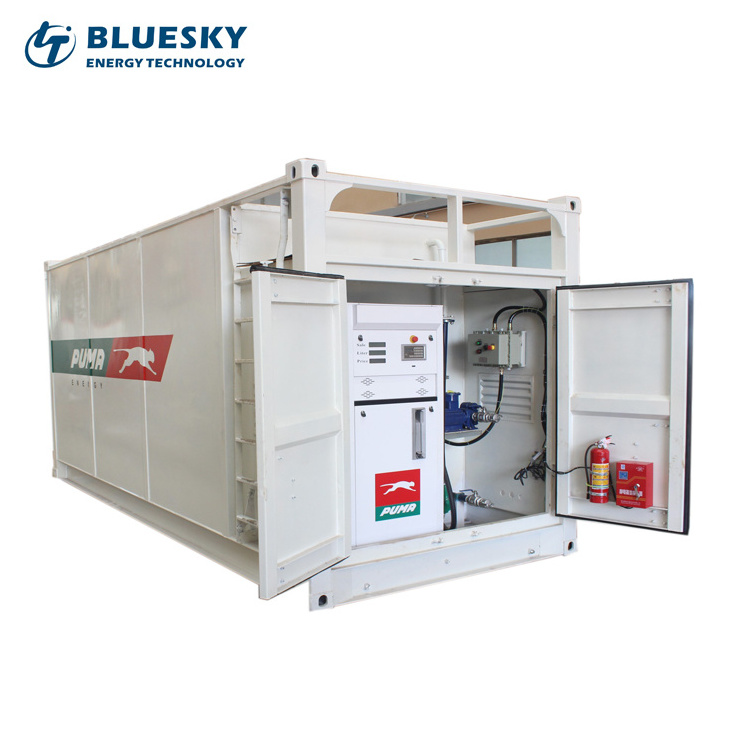

Introduction of Mobile Container Station:
Mobile Container station is a complete gas station built in an ISO container for selling the fuel to vehicles and machines, it is widely used in remote area , bus stations, seaports, airports, large construction sites, highways, parking place, private internal station, war-torn area, mining area or even downtown for a temporary use , it is a really good solution comparing to traditional station, because it is convenient, low-cost, non-construction needed, self-supported, customizable, movable and flexible.
Depends on different usage, bluesky can offer different solutions accordingly, normally include 20 Feet ISO container station, 40 Feet ISO container station or other NON-Standard container station.
Main parts including:
ISO Container with Ventilation grids, removable Ladder, roofs, Access Cover to tank’s manhole, Retention Tray and non-slip grating under dispenser area.
Size available with 20 Feet or 40 Feet container, with rolling door or standard container door, open available on the side or on the front and back , also special design is available
-Steel piping welded and tested.
-Suction Line 1.1/2” equipped with a mesh filter, anti siphon valve and cut valve.
-Fuel Loading line 4”, inlet near dispenser area, with connection, down pipe and overfill prevention valve.
-Venting: 2” vent pipe with atmospheric vent valve and filter.
-Three layer anti-corrosive Painting , Customer Logo available
Fuel Tank
Both single and double layer is available , both single and double product is available, fully tested and certified according BS EN 12285-2 Class A, with leak detector.
Capacity from 10000 Liter to 68000 Liter
Fuel dispenser
Suction / Submersible available
Single products / Multi products available
Standard flow / Heavy duty flow available
All the models of fuel dispenser is available, customer can choose Commercial dispenser, Economic dispenser, mini dispenser or Mechanical dispenser.
Commercial Dispenser
RT-CY 122
Economic
RT-P 111
Mini Dispenser
RT-M 111
Other feature:
--Over Fill Protection
--Over Flow Protection
--Anti-static
Option:
--Generator, supplying the power
-- Solar Panel, supplying the power
-- Oil and Gas recovery system for gasoline
-- Integrated Office with AC, Table etc
-- Metering System, to measure the quantity during loading
-- Self-Service with IC card or Bank card or RFID card
-- Advertising LOGO light box
Standard Specifications for order
-- 1x Economic fuel dispenser 50 liters/min
-- 1x fuel transfer pump, approximately 300Liter/min. Capable unloading and supply.
-- 2x Fire extinguisher
-- Single wall , single product plated carbon steel tank
-- 3" Fuel fill point (Cam Lock) / Overfill protection valve.
-- Tank level and temperature gage indicator.
-- Integrated ladder and sunshield for top of container access.
-- 1xlight in the dispensing room
-- 1x 20FT container or 40FT container
-- 1 x Automation system with LTMS and APP
Safety:
-- Air breath valve / emergency relief valve
-- High level and Low Level alarm.
-- Emergency shut off system point and leak detection.
-- Sealed area around the Valve to give Product Binding in All Areas.
-- System grounding point to hearth and resistance point and capability for testing
Frequent Asked Questions from Customers
Q1. Are these mobile filling stations bullet proof and fire proof?
Bluesky: Our product is fire proof but can't bullet proof, when bullet shoot the station, the safety system can prevent explosion, no fire would be caused.
Q2. Can these stations come with 2 product in one container (petrol & Gas-diesel). If so how much can if compartment hold.
Bluesky: Yes, we can set 2 dispensers with 2 compartments as your request.
Q3. Can it come with a mini office and generator?
Bluesky: Some of them can come with a mini office, it's according to the capacity and size.It comes with a 220V/380V generator if your need.
Q4. Can these stations be branded with our company colors
Bluesky: Yes, just please tell me your idea, we will produce according to it
Q5. Can the outside be of fiber material not metal?
Bluesky: No, since the container is for sea shipping, metal structure is much suitable. If you have some design for the look, please let me know, we will try to follow your design, but the container material can't be changed.
