Quick Details
-
Brand Name:
-
Stream
-
Model Number:
-
SCP Series
-
Place of Origin:
-
Tianjin, China
-
Standard or Nonstandard:
-
Standard
-
Impeller:
-
Cast iron (GG-25)
-
Suction diameter:
-
150 - 1600mm
-
Discharge diameter:
-
100 - 1400mm
-
Shaft:
-
SS 420
-
Mechanical Seal Cover:
-
SS (CF-8)
-
Sealing Pipe Parts:
-
SS 304
-
Shaft Seal:
-
Gland packing/Mechanical Seal/(On request)
-
Operating temperature:
-
-15°C - +150°C
Quick Details
-
Application:
-
Industrial Utilities, Water Supply
-
Pressure:
-
Low Pressure
-
Warranty:
-
1 year
-
Brand Name:
-
Stream
-
Model Number:
-
SCP Series
-
Place of Origin:
-
Tianjin, China
-
Standard or Nonstandard:
-
Standard
-
Impeller:
-
Cast iron (GG-25)
-
Suction diameter:
-
150 - 1600mm
-
Discharge diameter:
-
100 - 1400mm
-
Shaft:
-
SS 420
-
Mechanical Seal Cover:
-
SS (CF-8)
-
Sealing Pipe Parts:
-
SS 304
-
Shaft Seal:
-
Gland packing/Mechanical Seal/(On request)
-
Operating temperature:
-
-15°C - +150°C
Clean water or medium similar to water in phisical and chemical properties:
Water supply, drainage, irrigation, power station, construction.
Hdropower station, fire-fighting, air-conditioning, building industry.
CAPACITY(Q):.................................................52- 35000m³/h
HEAD(H):..........................................................10 - 300m
SUCTIONDIAMETER:....................................150 - 1600mm
DISCHARGEDIAMETER:..............................100 - 1400mm
OPERATING PRESSURE(P):.......................≤3.5MPa
OPERATINGTEMPERATURE (t):................-15°C - +150°C (above 80°C, Contact Tianjin Elecmotor)
ABRASVEMEDIUM:.......................................≤4%

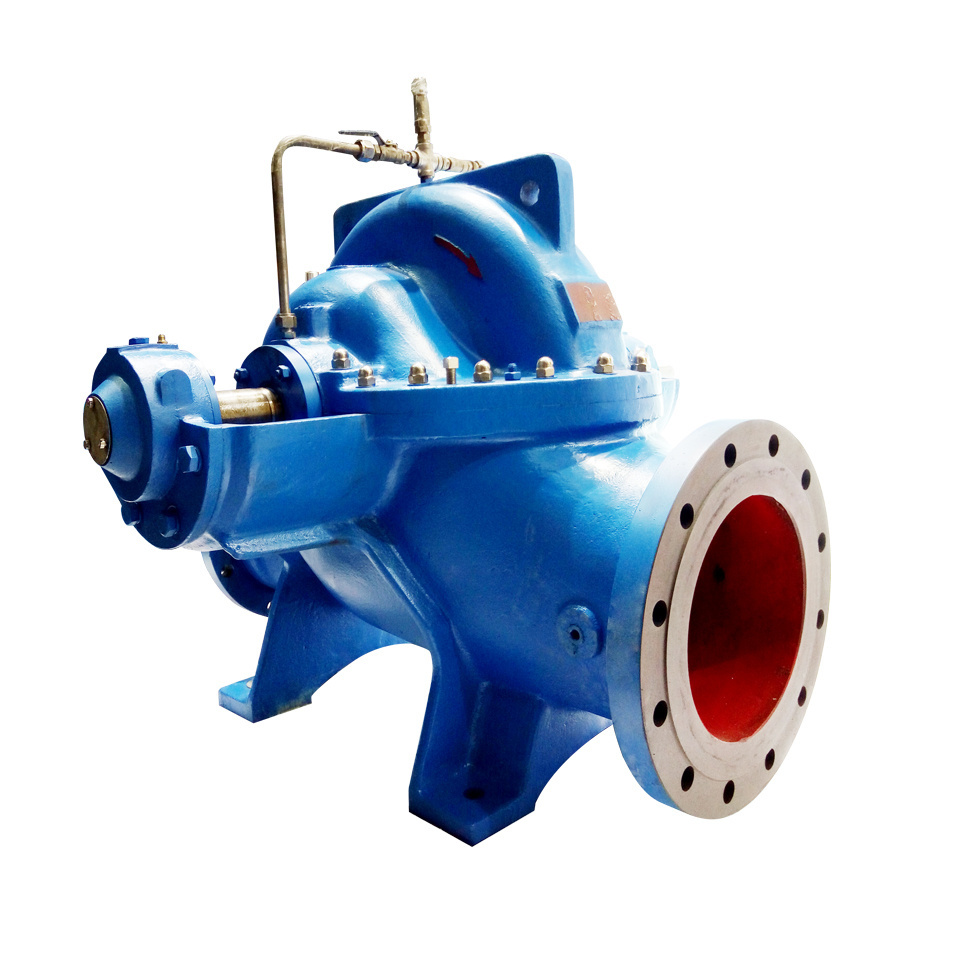

SCP is single stage, axially split volute casing pump with double suction impeller, for horizontal and vertical installation.
Drive shaft end of the horizontal pump optionally on the left or right side. Flanges drilled to ISO, DIN , BS OR ANSI.
More detail information,Click here
Technical Reference
* Sample service : we can supply as customer specify requires , and customer need take the EXPRESS cost .after received the official order , we can return the sample fee.
* Customized Service:(1) Accept OEM (2) One year warranty from ETD (3) Professional design team can meet customer special requirements.
* After sale service : (1)During the warranty time, we can replace a new one . (2) Our engineer and sales team can visit our core agent for promotion.
