Mini Small Double Shaft Shredder Machine is especially for shredding fabric,waste tires,various solid materials,
unmanageable,materials, waste plastic, plastic film, plastic pipe, fiber, wood, animal and paper which the normal crusher can not handle.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HX
-
Voltage:
-
220v, 220V 50HZ
-
Dimension(L*W*H):
-
1000*50*1350mm
-
Power (kW):
-
1.5
-
Weight (T):
-
0.12
-
Name:
-
Plastic shredder machine
-
Machinery Type:
-
Automnatic
-
Application:
-
Industry
-
Function:
-
Recycle Plastic
-
Capacity:
-
100kg/h
-
Advantage:
-
Easy Opperation
-
Color:
-
Customized Color
-
MOQ:
-
1 Pcs
Quick Details
-
Max.Production Capacity (kg/h):
-
100
-
Place of Origin:
-
Jiangsu, China, China
-
Production Capacity (kg/h):
-
80 - 100 kg/h
-
Brand Name:
-
HX
-
Voltage:
-
220v, 220V 50HZ
-
Dimension(L*W*H):
-
1000*50*1350mm
-
Power (kW):
-
1.5
-
Weight (T):
-
0.12
-
Name:
-
Plastic shredder machine
-
Machinery Type:
-
Automnatic
-
Application:
-
Industry
-
Function:
-
Recycle Plastic
-
Capacity:
-
100kg/h
-
Advantage:
-
Easy Opperation
-
Color:
-
Customized Color
-
MOQ:
-
1 Pcs

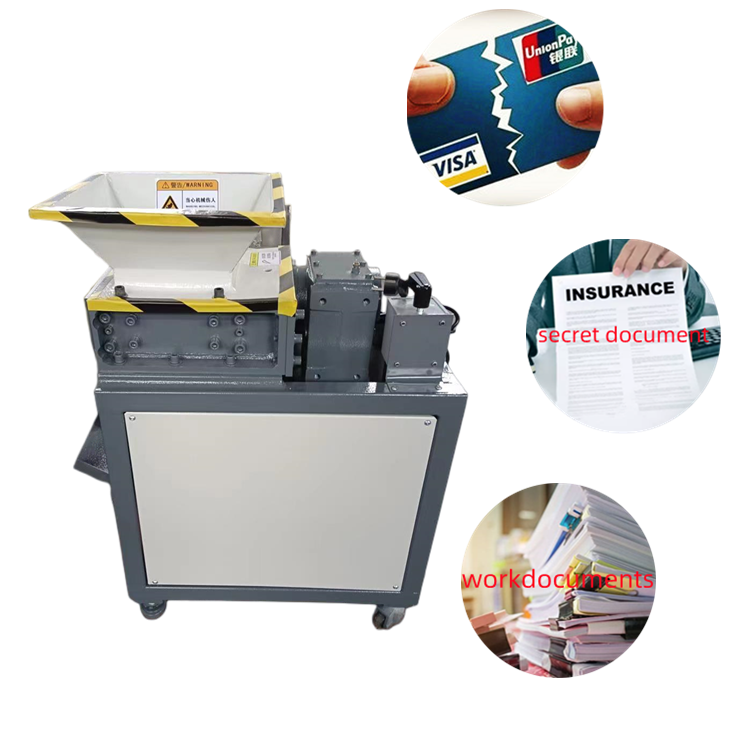

Mini Small Double Shaft Shredder Machine
WORKING PRINCIPLE
1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out;
2.Double shaft cutting system:Using different blades according customers' material;
3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs;
4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by
bolts, so that the power system can be integrally drawn out.
Product Paramenters
|
Model
|
300
|
400
|
500
|
600
|
|||
|
Motor
|
3KW
|
4KW
|
7.5KW
|
15KW+15KW
|
|||
|
Reducer
|
JL2#-16
|
JL3#-12
|
JL4#-15
|
ZQ400
|
|||
|
Input speed
|
16 turns/min
|
12 turns/min
|
15 turns/min
|
15 turns/min
|
|||
|
Main shaft diameter(mm)
|
Φ50
|
Φ60
|
Φ70
|
Φ150
|
|||
|
Blade size(mm)
|
Φ180*12
|
Φ180*15
|
Φ200*20
|
Φ250*25
|
|||
|
Blade numbers
|
24pcs
|
26pcs
|
24pcs
|
24pcs
|
|||
|
Dimension(mm)(L*W*H)
|
1100*650*1350
|
1160*700*1450
|
1350*750*1600
|
2800*1400*1900
|
|||
|
Machine weight
|
450KG
|
550KG
|
750KG
|
3000KG
|
|||
|
Application
|
Light metal products, plastic products, kitchen waste, wood, paper, etc
|
|
|
|
|||
