AK bottle blow unit is equipped with specially designed PLC control system. It controls the whole bottle production process through a soft touch pad with time control precision up to 0.01 second.
- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
China
-
Brand Name:
-
AK-MACHINE
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1908*1280*1920mm
-
Power (kW):
-
25
-
Weight (KG):
-
2000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service, Field installation, commissioning and training, Free spare parts, Video technical support, Online support
-
Name:
-
Semi Automatic Pet Blowing Machine
-
Capacity:
-
1000PCS/H
-
Max volume:
-
2L
-
Cavity:
-
2cavities
-
Raw material:
-
PET PREFROM
-
Keywords:
-
Bottle blowing machine
-
Color:
-
blue
-
Suitable bottle:
-
pet bottle
-
Advantages:
-
Saving Energy
-
Blow Moulding Type:
-
Stretch Blow Moulding
-
Local Service Location:
-
None
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2020
-
Production Capacity (BPH):
-
1000
-
Certification:
-
CE,ISO
Quick Details
-
Neck Diameter(mm):
-
28 mm
-
Max.Bottle Diameter(mm):
-
105 mm
-
Max.Bottle Height(mm):
-
320 mm
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
China
-
Brand Name:
-
AK-MACHINE
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1908*1280*1920mm
-
Power (kW):
-
25
-
Weight (KG):
-
2000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service, Field installation, commissioning and training, Free spare parts, Video technical support, Online support
-
Name:
-
Semi Automatic Pet Blowing Machine
-
Capacity:
-
1000PCS/H
-
Max volume:
-
2L
-
Cavity:
-
2cavities
-
Raw material:
-
PET PREFROM
-
Keywords:
-
Bottle blowing machine
-
Color:
-
blue
-
Suitable bottle:
-
pet bottle
-
Advantages:
-
Saving Energy
-
Blow Moulding Type:
-
Stretch Blow Moulding
-
Local Service Location:
-
None
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2020
-
Production Capacity (BPH):
-
1000
-
Certification:
-
CE,ISO
Product Description

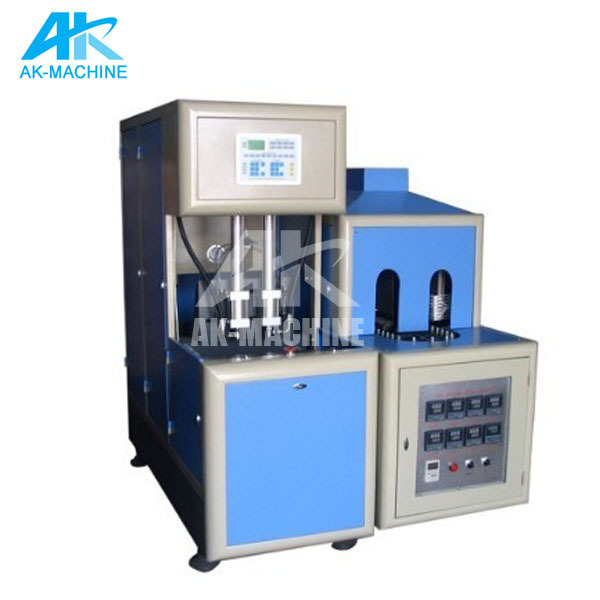

Semi Automatic Pet Blowing Machine / Manual Bottle Preform Blow Moulding Machinery
|
Cavity
|
2
|
|
Output
|
1000
|
|
Max.volume
|
2L
|
|
Size
|
148*60*213cm
|
|
Weight
|
0.82ton
|
|
application
|
water/juice/carbonated beverage bottle
|
|
Bottle neck
|
28/30/38/45
|
|
Bottle size
|
350/500/600/750/1000/1500ml or more
|
AK-32 PET stretch blow moulding machine has a plenty of assistant units to increase the machine's performance such as air storage unit to keep the air pressure stable grease-lubricating unit to reduce mechanical parts' wear and tear and multi-utilization air entry unit to meet air compressed air high-pressure single entry mode and high-pressure & low-pressure double entry mode.
Simple operation and high control precision
-
High quality pneumatic unit
Pneumatic unit provides power for machine movements including machine driving and bottle blowing. AK-32 is equipped with world famous brand components (Festo) to reduce the noise save energy and produce the high quality production
Powerful heating capacity with perfect heating result
AK series preform heater adopts infrared lamp as heating unit. Infrared has powerful thermal-radiation capacity which can heat up preform to required temperature in a very short time while the strong thermal-penetrability provides continuous and uniform heating inside of preform and over surface of preform.
Detailed Images
Contact Us
Related Products
Packing&Shipping
All the machines packed in wooden case packing with plywood.
After Sales Service
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30 days,if complete production line it is 45-60 days.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
Before shippment.
