Quick Details
-
Warranty:
-
25years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-

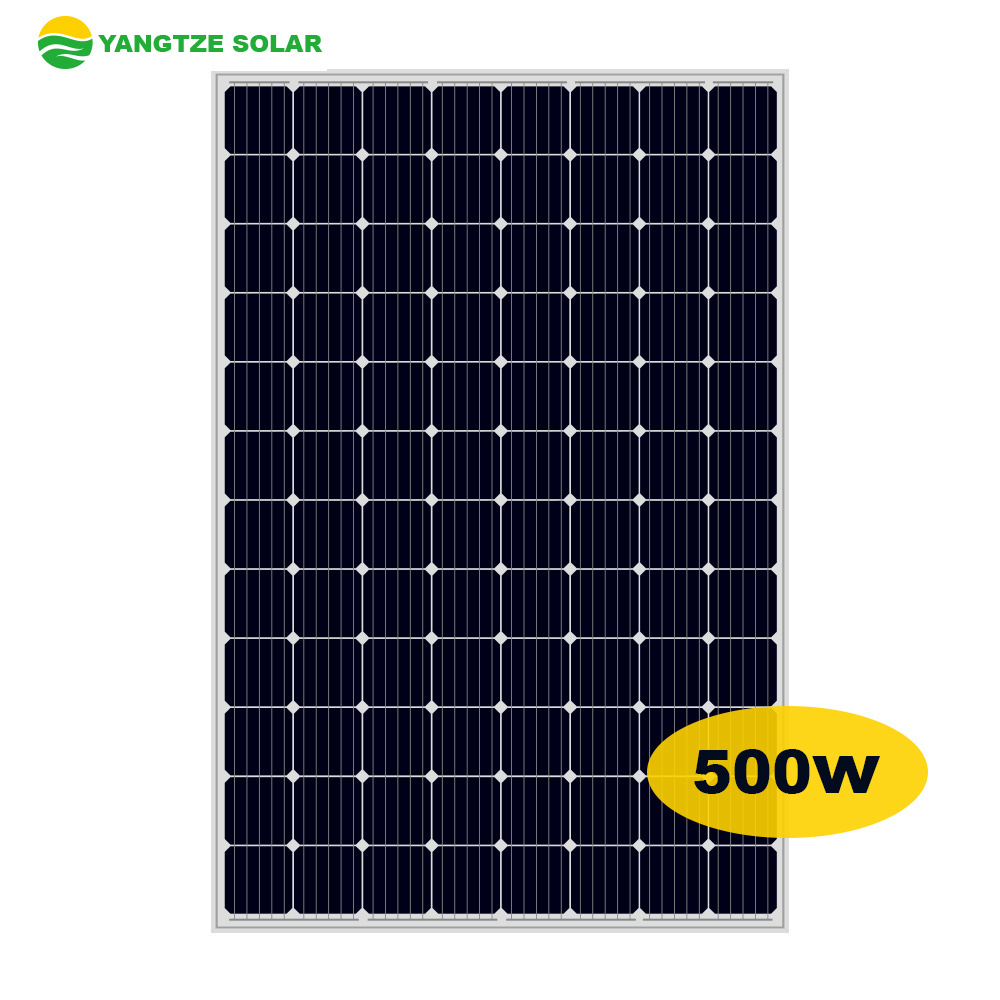

YS500M-96
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1956x1310x45mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO, CE&TUV
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP65 Waterproof
-
Solar cell:
-
Mono 156mm*156mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
19.51%
-
Warranty:
-
25years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS500M-96
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1956x1310x45mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO, CE&TUV
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP65 Waterproof
-
Solar cell:
-
Mono 156mm*156mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
Product Description
| Model | YS500M-96 | YS510M-96 | YS520M-96 | YS530M-96 | YS540M-96 | YS550M-96 |
| Rated Maximum Power at STC | 500W | 510W | 520W | 530W | 540W | 550W |
| Maximum Power Voltage (Vmp) | 47.22V | 47.45V | 47.71V | 47.87V | 48.01V | 48.35V |
| Maximum Power Current (Imp) | 8.47A | 8.85A | 9.22A | 9.40A | 9.59A | 9.93A |
| Open Circuit Voltage ( Voc) | 58.05V | 58.28V | 58.42V | 58.57V | 58.75V | 58.90V |
| Short Circuit Current (Isc) | 9.18A | 9.40A | 9.66A | 9.73A | 9.78A | 10.04A |
| Module Efficiency | 15.61% | 16.39% | 17.17% | 17.56% | 17.95% | 18.73% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | ||||||
| Mechanical Parameters | ||||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | |||||
| No. of Cells | 96 (8x12) | |||||
| Dimension | 1956x1310x45mm | |||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | |||||
| Junction Box | IP65&IP67 Rated | |||||
| Output Cable | Section Size: 4mm² , Length: 900mm | |||||
| Frame | Anodized Aluminum Alloy | |||||
| No. of Bypass Diodes | 6 | |||||
| Connector | MC4 Compatible | |||||
| Working Conditions | ||||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) | |||||
| Operating Temperature | -40°c~+85°c | |||||
| Maximum Series Fuse | 15A | |||||
| NOCT | 45±2°c | |||||
| Application Class | Class A | |||||
| Temperature Coefficient | ||||||
| Temperature Coefficient of Pmax | -0.40%/°c | |||||
| Temperature Coefficient of Voc | -0.30%/°c | |||||
| Temperature Coefficient of Isc | +0.05%/°c | |||||
