Quick Details
-
Voltage:
-
DC 9.5V~36V
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MCY
-
Model Number:
-
M360-13AM-T5
-
Camera Resolution:
-
AHD 720P
-
TV system:
-
PAL/NTSC
-
Waterproof:
-
IP67 Waterproof Rate
-
Lens Angle:
-
180 Wide Angle
-
Connector:
-
4Pin Connector
-
Video Coding:
-
H.264
-
Car Make:
-
Truck Bus Van Motorhome
-
Display:
-
7 inch 9inch 10.1inch Car Monitor (option)
-
Storage:
-
TF Card
Quick Details
-
Car Fitment:
-
Universal
-
View Angle:
-
360° Bird View
-
Function:
-
Waterproof, NIGHT VIEW, G-Sensor, 3D IMAGE, Split Screen, Parking Line, 360 Wide Angle
-
Voltage:
-
DC 9.5V~36V
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MCY
-
Model Number:
-
M360-13AM-T5
-
Camera Resolution:
-
AHD 720P
-
TV system:
-
PAL/NTSC
-
Waterproof:
-
IP67 Waterproof Rate
-
Lens Angle:
-
180 Wide Angle
-
Connector:
-
4Pin Connector
-
Video Coding:
-
H.264
-
Car Make:
-
Truck Bus Van Motorhome
-
Display:
-
7 inch 9inch 10.1inch Car Monitor (option)
-
Storage:
-
TF Card
Product Description

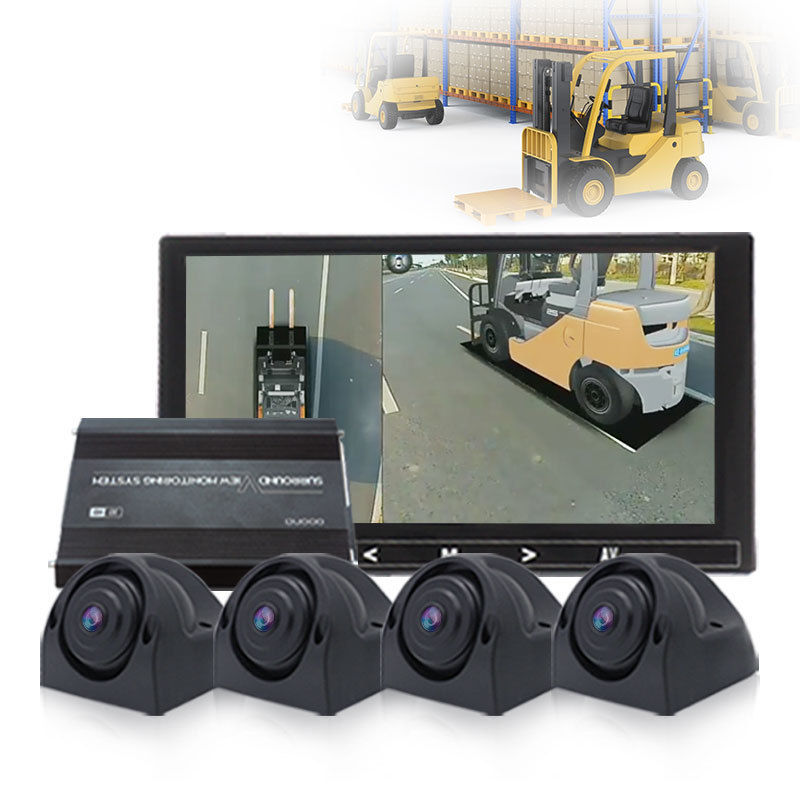

The 3D SVM Camera System synthesizes images from four cameras to create a true 3D sophisticated view of a vehicle's surroundings. The technology enables flexible omni-directional monitoring around a vehicle from a dynamically definable perspective or "free eye point." Such kind of technology can display the complete vision of the positioning and moving path of the vehicle, it covers blind spot and thus works perfectly as a safe parking and driving guide even when restricted by adjacent vehicles and objects, parking line, etc.
● Four 180 degrees ultra wide fish-eye cameras
● Seamless video merging
● Dynamic 3D mode view angle switching for better surrounding environment observation
● Independent Fish-eye calibration parameter and algorithm for each camera.
● Support alternative recording media for TF card or USB disk
● The simplest calibration steps with calibration tape and packing box,and system applicable for almost all types of vehicle which including bus, coach, truck, van, motorhome, construction vehicle and etc . Typical length of the vehicle is 5.5m, 6.5m, 10m & 13m.
● Smart power managements to save automobile’s battery
● Seamless video merging
● Dynamic 3D mode view angle switching for better surrounding environment observation
● Independent Fish-eye calibration parameter and algorithm for each camera.
● Support alternative recording media for TF card or USB disk
● The simplest calibration steps with calibration tape and packing box,and system applicable for almost all types of vehicle which including bus, coach, truck, van, motorhome, construction vehicle and etc . Typical length of the vehicle is 5.5m, 6.5m, 10m & 13m.
● Smart power managements to save automobile’s battery
|
Parameter
|
|
|
||
|
Video Output
|
AHD 720 (25/30FPS)
|
RCA Interface
|
||
|
|
CVBS (NTSC/PAL)
|
RCA Interface
|
||
|
|
VGA (720P 60/1080P 30HZ)
|
15 PIN Female
|
||
|
Camera Power Output
|
3.9/5.2/7.2/8/12
|
DIP swithc/control
|
||
|
Camera Video Input
|
4 channel 720P / 4channel 1080P(synthesis)
|
|
||
|
Trigger Signal
|
High Beam
|
Support
|
||
|
|
Left and Right turn signals
|
Support
|
||
|
|
Reversing signal
|
Support
|
||
|
External Communication
|
232/TTL
|
CAN
|
||
|
Video
|
Algorithm
|
H.264
|
||
|
|
Resolution
|
1920*1080p@25fps
|
||
|
|
Bit Rate
|
5Mbps, 2Gbyte/Hour
|
||
|
|
Recording Medium
|
High Speed read and write U disk/SSD
|
||
|
Maximum Storage Capacity
|
SSD
|
500G/1T
|
||
|
|
U disk
|
128G USB 2.0
|
||
|
Power Consumption
|
360 degree panorama mode
|
9w
|
||
|
|
4 channel video recording mode
|
10.5w (including SSD)
|
||
|
|
Shutdown mode
|
< 50mW
|
||
|
Working Environment
|
Normal Work
|
-30℃~+85℃
|
||
|
|
Storage Medium
|
-40℃~+105℃
|
||
|
|
Relative Humidity
|
0-95%
|
||
