Quick Details
-
Brand Name:
-
YULI
-
Fork Length:
-
1150mm
-
Fork Width:
-
190mm
-
Overall Dimensions:
-
158x91x179cm
-
Weight (KG):
-
300 kg
-
Product Name:
-
Self Loading Stacker
-
Key words:
-
Self lifting electric stacker
-
Power type:
-
Battery Operated
-
Loading Capacity:
-
500kg/700kg/1000kg
-
Feature:
-
Portable, easy operating
-
Mast:
-
Single column
-
Steering type:
-
Mechanical
-
Turning Radius:
-
1000mm
-
After-sales Service Provided:
-
Parts support
-
Application:
-
Truck loading and unload
Quick Details
-
Min. Lifting Height:
-
90mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YULI
-
Fork Length:
-
1150mm
-
Fork Width:
-
190mm
-
Overall Dimensions:
-
158x91x179cm
-
Weight (KG):
-
300 kg
-
Product Name:
-
Self Loading Stacker
-
Key words:
-
Self lifting electric stacker
-
Power type:
-
Battery Operated
-
Loading Capacity:
-
500kg/700kg/1000kg
-
Feature:
-
Portable, easy operating
-
Mast:
-
Single column
-
Steering type:
-
Mechanical
-
Turning Radius:
-
1000mm
-
After-sales Service Provided:
-
Parts support
-
Application:
-
Truck loading and unload

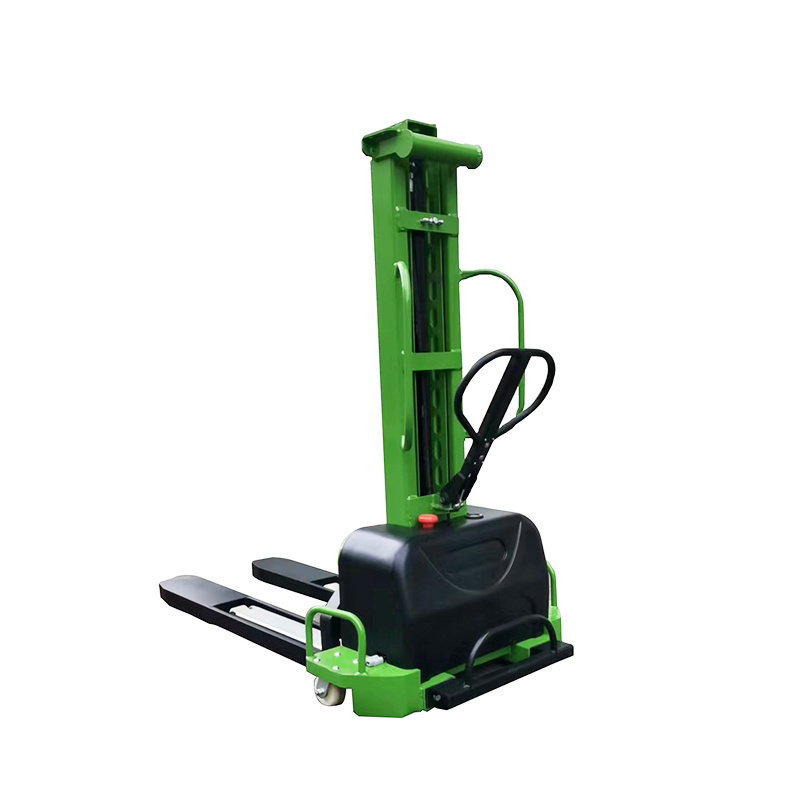

500kg 700kg 1000kg Portable Truck Cargo Load Unload Self Lifting Semi Electric Stacker Electric Self Loading Pallet Stacker
|
|
Model
|
|
ZTS-05/ZTS-07
|
|
|
ZTS-10
|
|
|||
|
Performance
|
Maximum load capacity
|
kg
|
500/700
|
500/700
|
500
|
1000
|
1000
|
|||
|
|
Load center
|
mm
|
450
|
450
|
450
|
450
|
450
|
|||
|
|
Weight （with battery）
|
kg
|
295/306
|
292/303
|
302
|
363
|
372
|
|||
|
|
Maximum lifting height
|
mm
|
1500
|
1600
|
1800
|
1500
|
1600
|
|||
|
|
Lifting speed (without load)
|
mm/s
|
140
|
140
|
140
|
65
|
65
|
|||
|
|
Lifting speed (with load)
|
mm/s
|
135
|
135
|
135
|
35
|
35
|
|||
|
|
Lowered speed (without load)
|
mm/s
|
140
|
140
|
140
|
65
|
65
|
|||
|
|
Lowered speed (with load)
|
mm/s
|
145
|
145
|
145
|
35
|
35
|
|||
|
Dimensions
|
Overall length of frame
|
mm
|
1578
|
1578
|
1578
|
1560
|
1560
|
|||
|
|
Overall width of frame
|
mm
|
885
|
885
|
885
|
913
|
913
|
|||
|
|
Mast lowered height
|
mm
|
1795
|
1895
|
2156
|
1850
|
1950
|
|||
|
|
Max height(mast lifted with backrest
|
mm
|
3060
|
3160
|
3360
|
3085
|
3185
|
|||
|
|
Wheelbase
|
mm
|
832
|
832
|
832
|
845
|
|
|||
|
|
Fork length
|
mm
|
1150
|
1150
|
1150
|
1115
|
1115
|
|||
|
|
Fork outside width
|
mm
|
565
|
565
|
565
|
626
|
626
|
|||
|
|
Fork inside width
|
mm
|
195
|
195
|
195
|
236
|
236
|
|||
|
|
Fork thickness
|
mm
|
60
|
60
|
60
|
70
|
70
|
|||
|
|
width of theoretical minimum aisle for right-angle stacking （1200x1000）
|
mm
|
1200
|
1200
|
1200
|
1200
|
1200
|
|||
|
|
Min frounf height
|
mm
|
20
|
20
|
20
|
32
|
32
|
|||
|
|
Fork lowered height
|
mm
|
90
|
90
|
90
|
90
|
90
|
|||
|
|
Minimum turning radius
|
mm
|
1000
|
1000
|
1000
|
1000
|
1000
|
|||
|
Tire
|
Front wheel
|
mm
|
80*50
|
80*50
|
80*50
|
80*50
|
80*51
|
|||
|
|
Rated output
|
kw
|
0.8
|
0.8
|
0.8
|
1.2
|
1.2
|
|||
|
Battery
|
Battery Type
|
|
Maintenance-free battery
|
|
|
Maintenance-free battery
|
|
|||
|
|
Voltage
|
V
|
12
|
12
|
12
|
12
|
12
|
|||
|
|
Capacity
|
AH
|
45
|
45
|
45
|
45
|
45
|
|||
Contact Information for Copy
Contact Person: Jerry
Email: haoandamachinery at gmail.com
Tel: +86 757 85772616 Mob: +86 181 2352 4445
Whatsapp/ Wechat: +86 1812352 4445
Website: www.haoandajx.com
FAQ
1. What is the warranty time for our products?
Within 1 year or 2,000 working hours since the products are on board.
2. How is the delivery time?
Normally the delivery time is 20 ~ 30 days after order confirmed and advanced deposit received. For the standard products, if we have stock, the delivery time would be shorter.
Port of Loading: Guangzhou, Shenzhen
3. How is our MOQ?
For the standard products, we don't request any MOQ. If you need OEM service, MOQ is required. Please contact us for more details.
