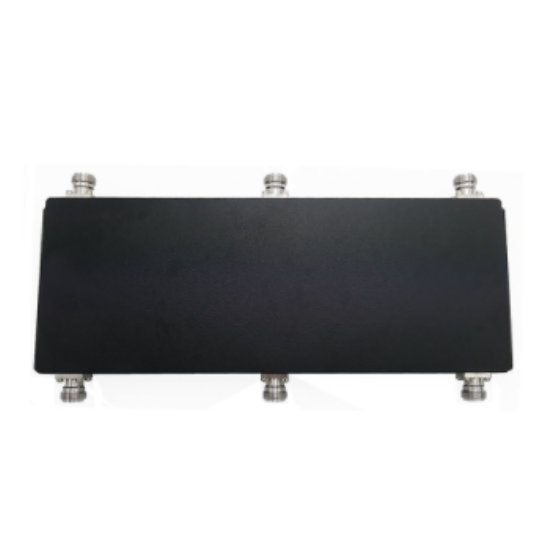

Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss
Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss
Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss
Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss
Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss
Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss
Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss
Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss

Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss

FOB Reference Price: Get Latest Price
≥2 Pieces
US $80
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

PIM:
-160dBc
Frequency Range:
698-2700MHz
Impedance:
50 Ohm
Color:
Black
Connector type:
N-female
VSWR:
<1.3
Operating temperature ( ):
-30~+60

Quick Details

Brand Name:
ZD
Model Number:
ZD-HC-727-200-3/3NF
Place of Origin:
China
PIM:
-160dBc
Frequency Range:
698-2700MHz
Impedance:
50 Ohm
Color:
Black
Connector type:
N-female
VSWR:
<1.3
Operating temperature ( ):
-30~+60

Hot sale Passive RF 3x3 Hybrid Combiner 698-2700MHz N-Female 200W for DAS IBS low Insertion loss

Applications:

1. RF Combiner/Hybrid Combiner is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia. Power Divider is widely used in the IBS and BTS projects. All over the world, SETSAIL has sold most of the Power Splitter/Divider to ZTE and Huawei's oversea IBS and BTS contruction, especiall in Middle East and South American. Products quality has been confirmed and accepted by oversea customers. The annual exporting quantity of this 800-2500MHz, 4 way Hybrid Combiner is around 2,000pcs, especially to some big developping countries, like India, Paskitan, Brazil.

2. 800-2500MHz(700-2700MHz), RF Combiner/Hybrid Combiner is widely used in below fileds:

A. Mobile Communication Network Optimization and In-door distribution system.

B. Cluster communication, satellite communication, shortwave communication and hopping radio.

C. Radar, electronic navigation and electronic confrontation.

D. Aerospace equipment systems.

Feature:

l Wide Frequency Range

l Excellent Coupling Flatness

l High Directivity / Isolation

l Cavity structure, High power handing

l Low Insertion Loss, Low VSWR, Low PIM(IM3)

Technical Specifications:

1.1 Radio Specifications

Frequency Range(MHz)

698~2700

VSWR

<1.3

Insertion Loss(dB)

<6

Isolation(dB)

>20

Impedance(Ω)

50

Power Handling(W)

200,Avg

1.2  Environmental Specifications

Operature Temperature(℃)

-30~+60

Application

Indoor

1.3 Mechanical Specifications

Connectors

Female, N

Mounting Options

Holes

Color

Black

Application
