Quick Details
-
Weight:
-
120 kg, 135kg
-
Features:
-
Single Gun
-
Product Name:
-
Thermoplastic Road Marking Machine
-
Power:
-
5.5HP gasoline engine
-
Glass beads sow browser:
-
synchronous clutch spread with speed gearshift device
-
Spray gun quantity:
-
single gun
-
Landing knife:
-
1-2.5 mm
-
Workpressure:
-
8- 12MPa
-
Heating method:
-
liquefied petroleum gas
-
Dimensions:
-
1320 * 850 * 1000 mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NOKIN
-
Dimension(L*W*H):
-
1600*800*1200mm
-
Weight:
-
120 kg, 135kg
-
Features:
-
Single Gun
-
Product Name:
-
Thermoplastic Road Marking Machine
-
Power:
-
5.5HP gasoline engine
-
Glass beads sow browser:
-
synchronous clutch spread with speed gearshift device
-
Spray gun quantity:
-
single gun
-
Landing knife:
-
1-2.5 mm
-
Workpressure:
-
8- 12MPa
-
Heating method:
-
liquefied petroleum gas
-
Dimensions:
-
1320 * 850 * 1000 mm
-
After Warranty Service:
-
Video technical support

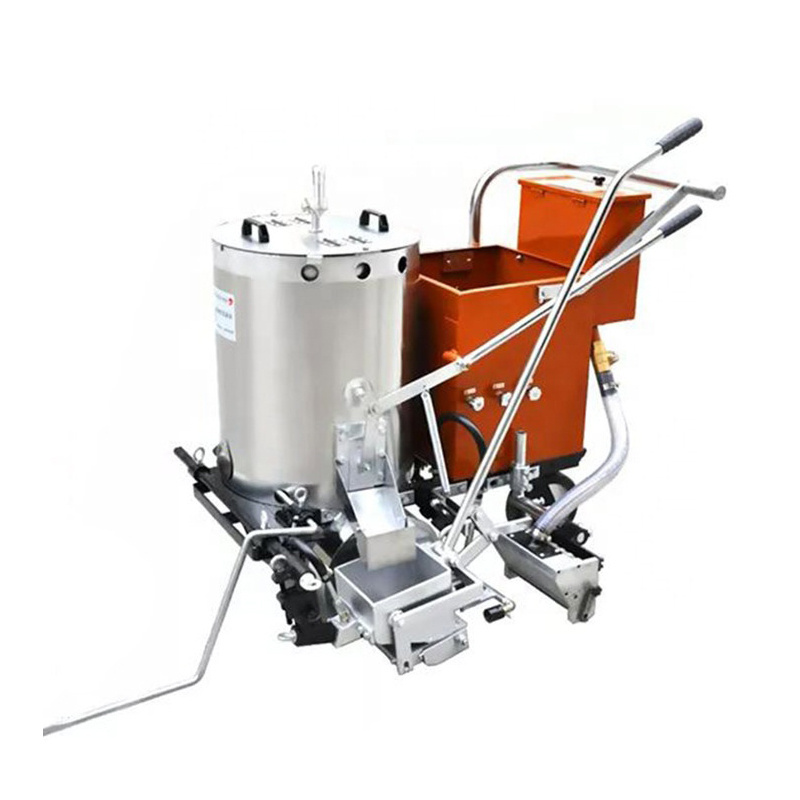

Pavement Automatic Hot Melt Road Marker Paint Thermoplastic Road Marking Machine
|
1, Stainless steel heat preservation kettle
|
2, Paint input door |
| 3, Liquefied petroleum gas valve | 4, Glass beads box |
| 5, Paint output door handle | 6, Road Marking bucket handle (to support) |
| 7, Hopper | 8, Pointing needle |
|
1, Stainless steel heat preservation kettle |
2, Crank |
| 3, Paint input door | 4, torches |
| 5, trunk | 6, Road Marking bucket handle (to support) |
| 7, Rear locator | 8, Glass beads box |
| 9, Fire road | 10, Knife |
| 11, Hopper(5.10.15.20.25.30.40.45cm) | 12, Pointing needle |
| 13, Hanger | 14, Paint output door |
| Paint Barrels: |
double stainless steel heating insulation barrels, capacity 100 kg,
plug-in manually mixer devices, removable devices |
| Glass Bead Storage Box: | 10 kg / box |
| Glass Beads Sow Browser: | synchronous clutch spread with speed gearshift device |
| Marking Width: |
High-precision ultra-thin material manufacturing, scraper-type structure,
the standard configuration of 150 mm, Can provide 100-450mm |
| Landing Knife: |
Carbide, with eccentric sleeve device can adjust the thickness of the
scope marking :1-2.5 mm |
| Tire: |
Alloy Wheel Unit, a special heat-resistant rubber, after the last round
with positioning devices for the body along a straight line direction |
| Heating Method: | liquefied petroleum gas |
| Subscript Line Width: |
150 mm engineering requirements in accordance with the replacement
of different specifications crossed Doo |
| Size: | 1250 * 900 * 950 mm |
| Net Weight: | 110kg (242.5ib) |
| Paint Barrels: |
double stainless steel heating insulation barrels, capacity 100 kg,
plug-in manually mixer devices, removable devices |
| Glass Bead Storage Box: | 10 kg / box |
| Glass Beads Sow Browser: | synchronous clutch spread with speed gearshift device |
| Marking Width: |
High-precision ultra-thin material manufacturing, scraper-type structure,
the standard configuration of 150 mm, Can provide 100-450mm |
| Landing Knife: |
Carbide, with eccentric sleeve device can adjust the thickness of
the scope marking :1-2.5 mm |
| Tire: |
Alloy Wheel Unit, a special heat-resistant rubber, after the last round
with positioning devices for the body along a straight line direction |
| Heating Method: | liquefied petroleum gas |
| Subscript Line Width: |
150 mm engineering requirements in accordance with the
replacement of different specifications crossed Doo |
| Size: | 1200 * 900 * 950 mm |
1, Bodywork legerity, compact structure, beautiful appearance .
2, Lifting type handlebar design, operator may adjust it according to the needs .
3, Glass beads automatic sown device.
4, Glass beads sown speed device, sets up 2 gear, according to demand to make adjustments.
5, Heat preservation ,heat barrel ,removable design, reasonable design, solve the stirring shaft of mixing paint
6, Adjustable pointer in order to improve work efficiency.
7, The company adopts high precision steel manufacturing and own high-temperature resistance, corrosion resistance, durable form etc.
8, Our company adopts cast-iron ,imported rubber to make the wheels flexible , strong and durable.
preparation work:
1. Please clean over the road to achieve marking requirements.
2. Spray some lubricants on the hopper and transmission system to ensure working flexible.
3. The first using time should remove sundry and filter inside kettle, be sure the rotating parts is flexible.
4. Carefully check all screws is tight.
5. Carefully check liquefaction tank, burner, pipeline is in good condition, and without leakage phenomenon.
6. Adjust cutting knife to make sure the line thickness between1.5-2.5 mm
7. Operators shall wear good labor protection supplies to present burning.
