Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
600Mbps
-
Type:
-
Wireless
-
Brand Name:
-
USRIOT
-
Place of Origin:
-
Shandong,China
-
Item:
-
WiFi VPN Industrial 4G LTE Router
-
Power supply:
-
DC 9~36V
-
Wireless standard:
-
WIFI/2G/3G/4G
-
Certification:
-
CE/CCC
-
Modbus:
-
Modbus RTU to TCP
-
Warranty:
-
2 years
-
VPN:
-
IPsec VPN, PPTP,L2TP, OPENVPN,GRE
-
Serial Interface:
-
RS485/RS232(alternative)
-
TDD-LTE:
-
B38/40/41
-
FDD-LTE:
-
B1/B3/B5/B7/B8/B20/B28
Quick Details
-
Max. LAN Data Rate:
-
150Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
600Mbps
-
Type:
-
Wireless
-
Brand Name:
-
USRIOT
-
Place of Origin:
-
Shandong,China
-
Item:
-
WiFi VPN Industrial 4G LTE Router
-
Power supply:
-
DC 9~36V
-
Wireless standard:
-
WIFI/2G/3G/4G
-
Certification:
-
CE/CCC
-
Modbus:
-
Modbus RTU to TCP
-
Warranty:
-
2 years
-
VPN:
-
IPsec VPN, PPTP,L2TP, OPENVPN,GRE
-
Serial Interface:
-
RS485/RS232(alternative)
-
TDD-LTE:
-
B38/40/41
-
FDD-LTE:
-
B1/B3/B5/B7/B8/B20/B28

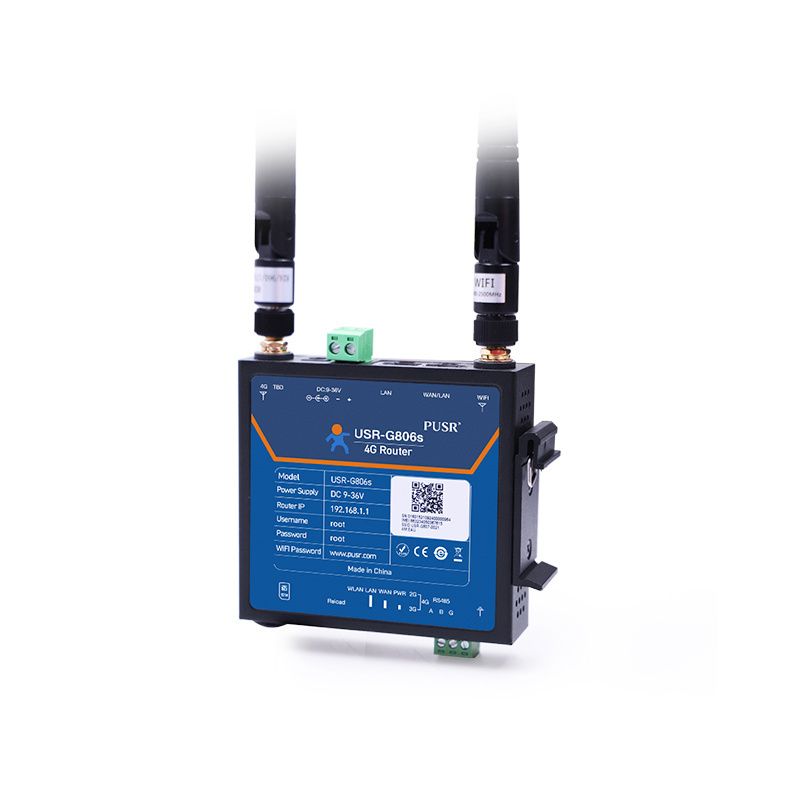

USR-G806s is an IoT cellular router that integrates 4G LTE, Wi-Fi, and VPN technologies to provide an easy, reliable, secure Internet connectivity and high-speed data access for equipment networking. With technologies such as 4G wireless wide area network,Dual Ethernet ports (LAN + WAN),Wi-Fi wireless local area network it provides uninterrupted multiple network access capabilities.
Unique Features
● Supports 2G/3G/4G network all over the world.
● Supports APN/VPDN sim card.
● Dual Ethernet ports, WAN/LAN.
● Support Modbus RTU toTCP.
● Support watchdog.
● Supports IPsec VPN, PPTP,L2TP, OPENVPN,GRE etc.
● Supports DDNS,PPPOE,DHCP,Static IP.
● Supports email alarm,SMS alarm,abnormal alarm push in time.
● Wall-mounting and DIN-rail mounting options available,easy to install.
|
Hardware Specifications
|
|
|
||
|
Cellular
Interface |
Antenna
|
1 x SMA-K
Note: North America models: 2 x SMA 4G antenna connectors. |
||
|
|
SIM card
|
1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots
|
||
|
Ethernet
|
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation
transformer protection |
|
||
|
|
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation
transformer protection |
|
||
|
Indicators
|
LED
|
PWR: always on after powered on
WLAN: always solid on when WiFi is enabled and working properly WAN: solid when cable is connected, blinking when data is transmitting and receiving LAN：solid when cable is connected, blinking when data is transmitting and receiving 2/3/4G mode indicator： 2G led is on after connected to 2G network 3G led is on after connected to 3G network Both leds is on after connected to 4G network Signal strength：4 solid bars,strongest signal |
||
|
WiFi Interface
|
Standards & Frequency
|
IEEE 802.11b/g/n,2.4GHz, AP mode
|
||
|
|
Data speed
|
IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps
|
||
|
|
Antenna
|
1 x SMA-K
|
||
|
|
Transmission distance
|
80 meters by line of sight.Actual transmission distance depends on environment of the site.
|
||
|
Power Supply
|
Adaptor
|
DC 12V/1A
|
||
|
|
Connector
|
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN 5.08mm industrial terminal block,reverse polarity protection
|
||
|
|
Input voltage
|
DC 9~36V
|
||
|
|
Working power
|
Average 270mA/12V
|
||
|
Serial Interface
|
RS485/RS232(alternative)
|
3 PIN 3.81mm industrial terminal block. Note:RS485 default,RS232 please contact sales.
|
||
|
|
Baud rate(bps)
|
1200,2400,4800,9600,19200,38400,57600,115200,230400
|
||
|
|
Data bits
|
8
|
||
|
|
Stop bits
|
1,2
|
||
|
|
Parity
|
NONE,ODD,EVEN
|
||
|
Physical
Characteristics |
Housing
|
Metal shell,IP30
|
||
|
|
Dimensions
|
112.0*84.0*25.0 mm(L*W*H）
|
||
|
|
Installation method
|
Panel mounting, DIN-Rail mounting
|
||
|
|
EMC
|
Static IEC61000-4-2, level 2
Pulsed Electric Field IEC61000-4-4, level 2 Surge IEC61000-4-5, level 2 |
||
|
|
Operating temperature
|
-20℃～+70℃
|
||
|
|
Storage temperature
|
-40℃～+125℃
|
||
|
|
Operating humidity 5
|
5%～95%RH（non-condensing)
|
||
|
Others
|
Reload
|
Pinhole reset button
|
||
|
|
TBD
|
Debug interface (TTL Level)
|
||
|
|
Embedded Watchdog
|
Device runs self-detection, auto recovers from malfunctions
|
||
|
Certificate
|
CE,CCC
|
|
||
|
Software Specifications
|
|
|
||
|
Network
Connection |
WAN protocol
|
PPP, PPPoE, DHCP client
|
||
|
|
LAN protocol
|
ARP, DHCP server, NAT
|
||
|
|
4G network access
|
Auto APN/VPDN, private network
Access authentication: CHAP/PAP |
||
|
|
WLAN security
|
Open system,WPA/WPA2 PSK
TKIP/AES encryption |
||
|
|
IP routing
|
Static routing
|
||
|
|
Network diagnosis
|
Ping,route trace,DNS
|
||
|
Serial modem
|
Work mode
|
NET,HTTPD
|
||
|
|
Sockets
|
4 sockets,4 centers ,TCPS(SOCKA)/TCPC/UDPS/UDPC
|
||
|
|
Modbus RTU toTCP
|
Support
|
||
|
Device
management |
Configuration
|
Web
|
||
|
|
Remote management
|
Telnet, SSH, AT command,SNMP
|
||
|
|
PUSR platform
|
Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router
|
||
|
Security
|
Failover backup
|
Failover between 4G and WAN, ensures automatic switch to alternative backup connection
|
||
|
|
Firewall
|
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
|
||
|
|
VPN
|
Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols
|
||
|
Service
|
DDNS
|
Remote access the device through domain name
|
||
|
|
Alarm
|
Email,SMS
|
||
|
|
Others
|
NTP client
Timing task |
||
|
Region
|
Part of APAC，please confirm the frequencies
|
|
||
|
Frequency
|
TDD-LTE
|
B38/39/40/41
|
||
|
|
FDD-LTE
|
B1/B3/B5/B8
|
||
|
|
WCDMA
|
B1/B8
|
||
|
|
TD-SCDMA
|
B34/B39
|
||
|
|
EVDO/CDMA1X
|
CDMA1X/ 1xEV-DO rel.0/ 1xEV-DO rev. A：800 MHz
|
||
|
|
GSM/CPRS/EDGE
|
900/1800MHz
|
||
