Quick Details
-
Brand Name:
-
Dongchuan
-
Model Number:
-
SFQ5-4P/63A
-
Rated Current:
-
63A
-
Standards compliant:
-
GB/T 14048.11
-
ATS Class:
-
PC Class
-
Use category:
-
AC-33iB
-
Rated working voltage Ue:
-
400V
-
Rated operating frequency:
-
50Hz/60Hz
-
Rated operating current Le:
-
63A
-
Switch control voltage:
-
AC230V
-
Rated insulation voltage Ui:
-
AC690V
-
Conversion action time:
-
≤3S
-
Electrical life:
-
1500 times
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dongchuan
-
Model Number:
-
SFQ5-4P/63A
-
Rated Current:
-
63A
-
Standards compliant:
-
GB/T 14048.11
-
ATS Class:
-
PC Class
-
Use category:
-
AC-33iB
-
Rated working voltage Ue:
-
400V
-
Rated operating frequency:
-
50Hz/60Hz
-
Rated operating current Le:
-
63A
-
Switch control voltage:
-
AC230V
-
Rated insulation voltage Ui:
-
AC690V
-
Conversion action time:
-
≤3S
-
Electrical life:
-
1500 times
Products Description

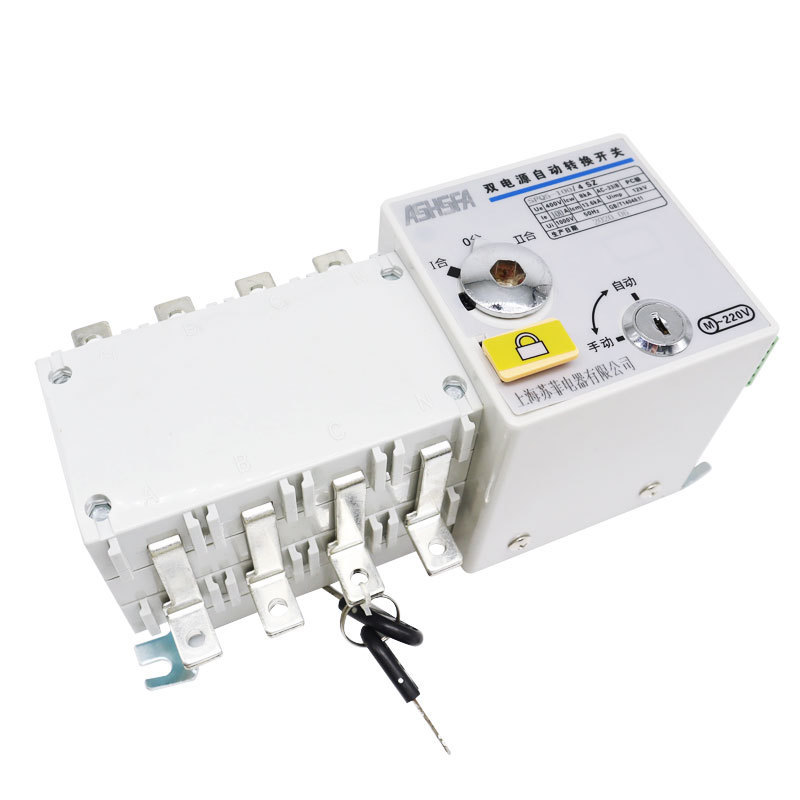

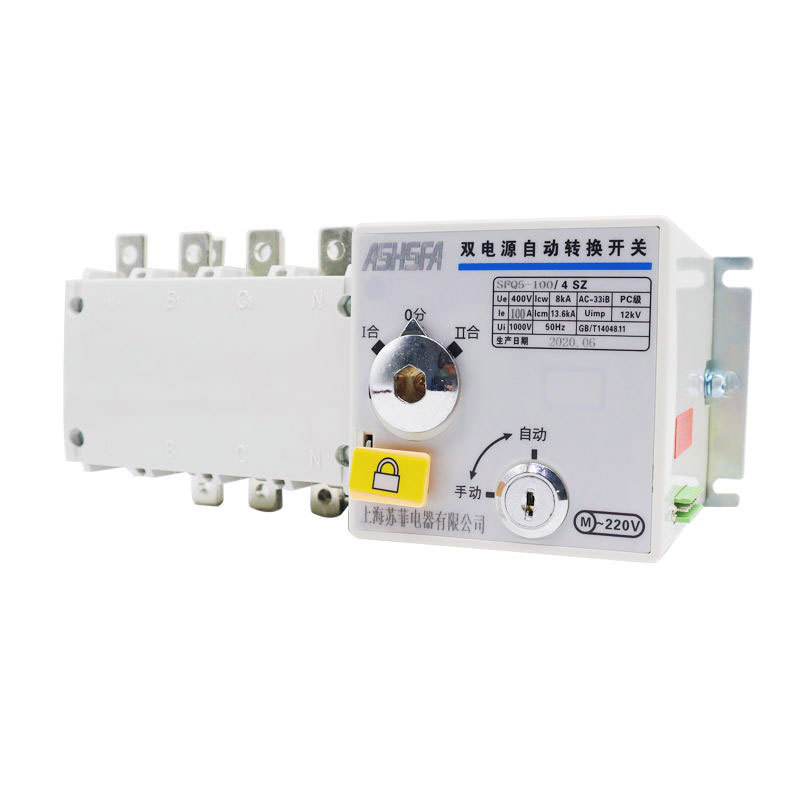

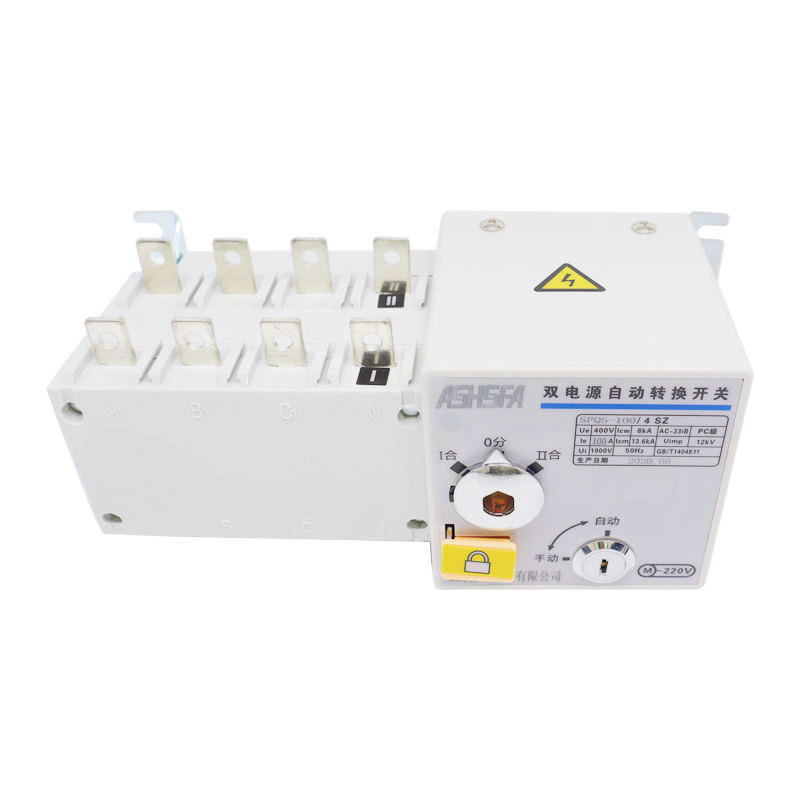

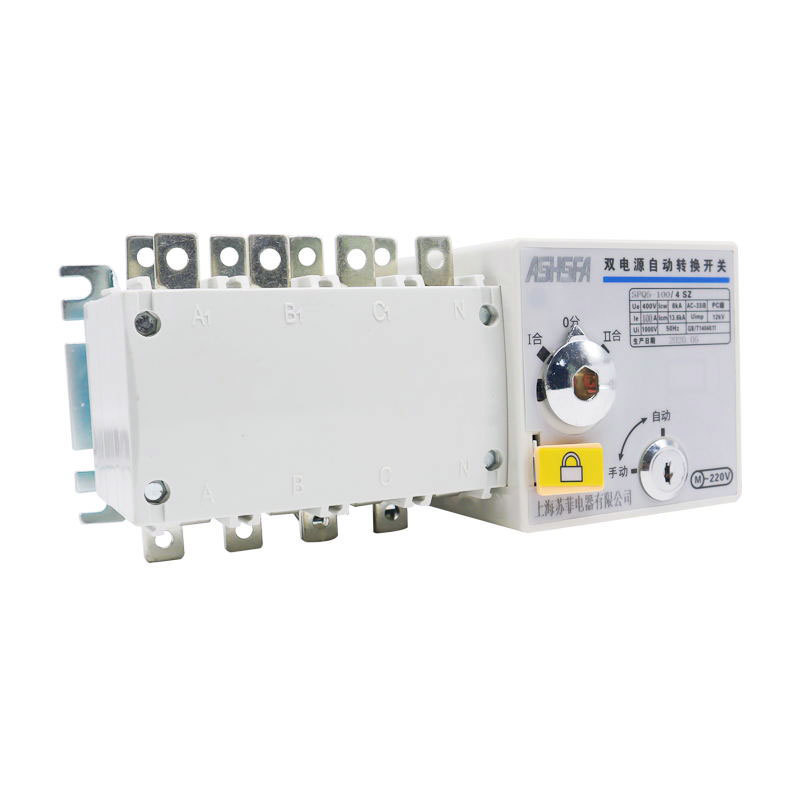

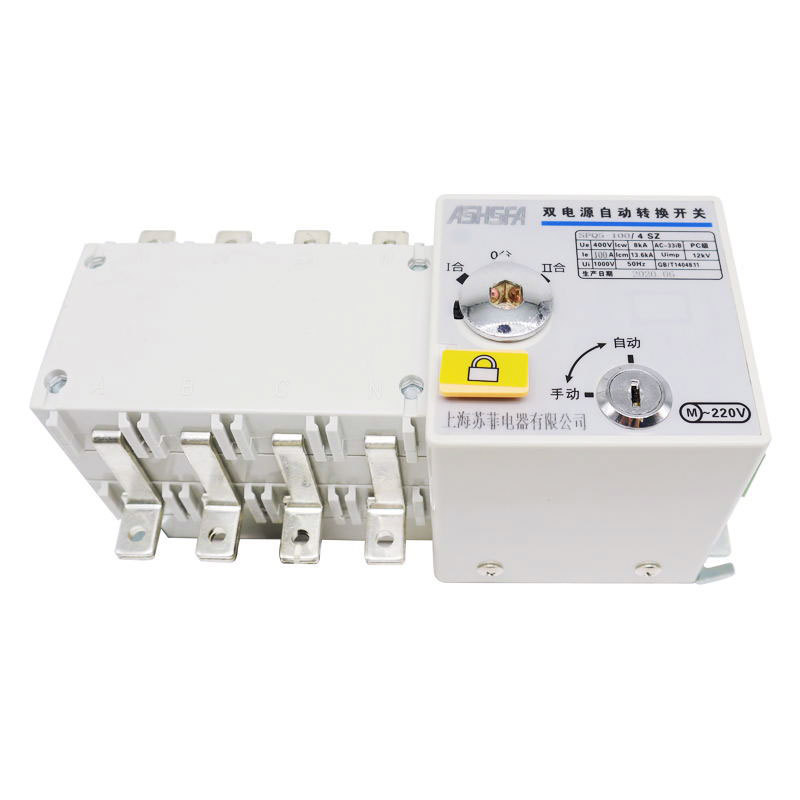

Dual power supply automatic transfer switch (hereinafter referred to as dual power supply), it is suitable for power supply systems with AC 50Hz/60HZ, rated working voltage 220V/380V, rated working current 63A and below. The selection and conversion between the two power sources can be carried out according to the needs. The product has overload, short circuit, and undervoltage protection functions, and also has fire protection, double opening and output closing signal functions.
