Welcome to cooperate with us based on win-win situations. Please feel free to contact us .
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Songtai
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.1 KG
-
Material:
-
other
-
Internal thermocouple:
-
type J or K;
-
Length tolerance:
-
± 2% whichever is greater.
-
Sheath material:
-
SUS 304/316/321, Incone 800/840
-
Max operating temp:
-
800 degree
-
Insulation material:
-
MgO tube inside
-
Wattage Tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Voltages:
-
24V/48V/120V/230V/380V/180V
-
Experience in Making:
-
20 years
-
sample:
-
free
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
220v and can be customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Songtai
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.1 KG
-
Material:
-
other
-
Internal thermocouple:
-
type J or K;
-
Length tolerance:
-
± 2% whichever is greater.
-
Sheath material:
-
SUS 304/316/321, Incone 800/840
-
Max operating temp:
-
800 degree
-
Insulation material:
-
MgO tube inside
-
Wattage Tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Voltages:
-
24V/48V/120V/230V/380V/180V
-
Experience in Making:
-
20 years
-
sample:
-
free

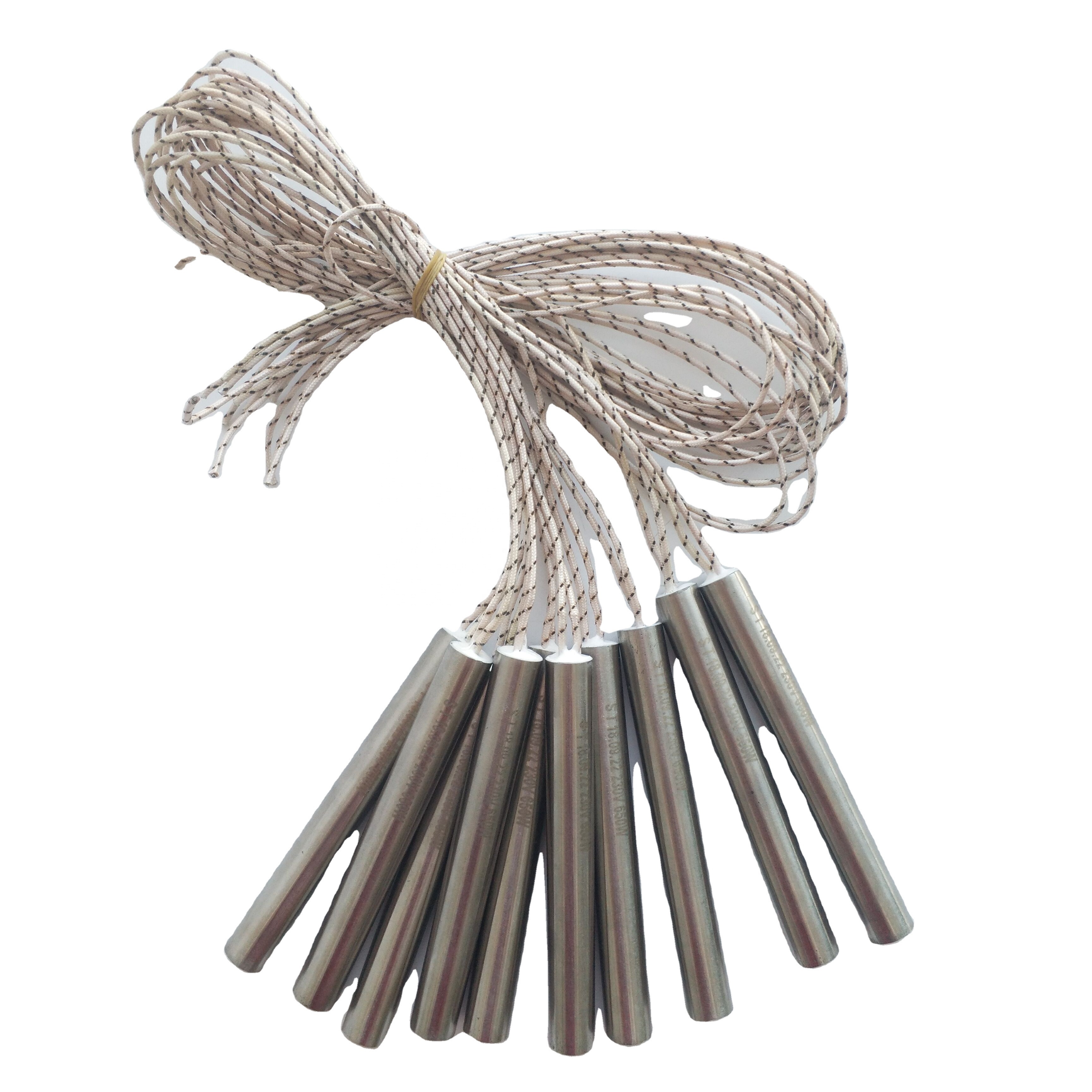

Cartridge Heater
Related Products
Flange Tubular Heater
Finned Tubular Heater
Tubular Heater
Products description
|
Outer Sheath Material
|
Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840
|
|
Resistance Heating Wire
|
NiCr 80/20 wire
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Resistance Tolerance
|
+10%, -5%
|
|
Maxium Heating Temperature
|
800 Degree Celsius
|
|
Voltage Available
|
12V, 24V,48V,60V, 110V,230V,380V,480V. and other customized
|
|
Length Tolerance
|
±2%
|
|
Diameter Tolerance
|
±0.02mm
|
|
Standard Cold Size
|
5-10mm
|
|
Insulation Resistance (cold)
|
≥ 500 MΩ
|
|
Maxium Leakage Current (cold)
|
≤0.5 MA
|
Detailed products
Specifications
* High-Density Swaged Cartridge Heater
* Low density cartridge heater are available
* Various diameter from 3MM-38MM
* Good Alloy tube sheath for high corrosion resistance
Main Features
* Imported resistance wire, ensure high density large wattge
* Fasteners and flanges to meet a variety of installation requirements.* High temperature, wear-resistant, waterproof.
Application
● Injection moulding-Internal heating of nozzle
● Hot runner systems-Heating of manifolds● Packaging industry-Heating of cutting bars
● Packaging industry-Heating of hot stamps
● Laboratories-Heating of analytical equipment
● Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood Warmer,Temperature Therapy
● Telecommunications:Deicing,Enclosure Heater
● Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
● Food Service:Steamers,Dish Washers,
● Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
Company
Customer Visit
Poland clients
American clients
American clients
Pakistan clients
Exhibition
Contact US
Pls click below "Send " to get the free sample and quotation.
