- Product Details
- {{item.text}}
Quick Details
-
Power:
-
36.8KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENGWANG
-
Maximum Digging Height:
-
5060mm
-
Maximum Digging Depth:
-
1838mm
-
Machine Weight:
-
4500 kg
-
Rated Speed:
-
16km/h
-
Color:
-
as your requested
-
Type:
-
Hydraulic Wheel Excavator
Quick Details
-
Operating Weight:
-
4800kg
-
Bucket capacity:
-
0.12m³
-
Engine Brand:
-
YUCHAI
-
Power:
-
36.8KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENGWANG
-
Maximum Digging Height:
-
5060mm
-
Maximum Digging Depth:
-
1838mm
-
Machine Weight:
-
4500 kg
-
Rated Speed:
-
16km/h
-
Color:
-
as your requested
-
Type:
-
Hydraulic Wheel Excavator
To Customers:
1. We are factory in Construction Machines for more than 20 years with CE, ISO, BV, TUV.2. Machine could be equipped with EPA engine;
3. Specialized After-Sales Service Team for 24h aborad site serving;
4. 3 Overseas Spare Parts Center, gurantee the sufficent spare parts locally;
Product Description

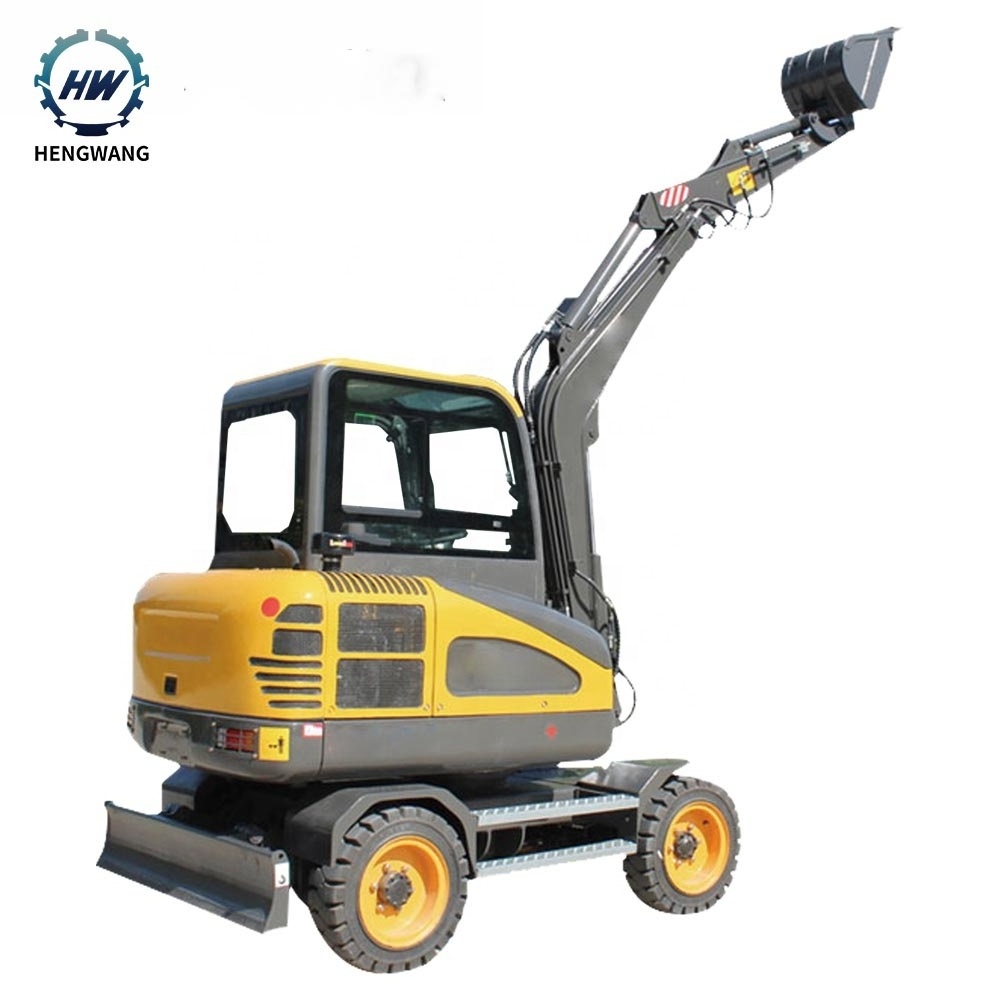

HW50 wheel excavator is a new generation of fully hydraulic wheeled excavator independently researched and developed by Hengwang Group. It adopts high-power and low-fuel consumption national three standard engine to ensure the strong power and power reserve of the whole machine; high-efficiency hydraulic system and bridge box Accurate matching ensures the free switching between working status and walking status; The hydraulic system of the whole machine is matched with imported hydraulic components, which has the characteristics of "high reliability, authenticity, safety and environmental protection, comfort and convenience". At the same time, it can provide a variety of special configuration options. Can adapt to the needs of different countries and customers.
Technical Parameter
|
Model
|
HW50
|
|
|
Dimensions
|
|
|
|
Overall Length（mm）
|
5262
|
|
|
Overall Height（mm）
|
2500
|
|
|
Width（mm）
|
1530
|
|
|
Clearance under counter weight（mm）
|
708
|
|
|
Ground clearance（mm）
|
256
|
|
|
Tail swing radius（mm）
|
1560
|
|
|
Steering width（mm）
|
1530
|
|
|
Working Range
|
|
|
|
Boom Length（mm）
|
2595
|
|
|
Arm Length（mm）
|
1700
|
|
|
Max.Digging Distance（mm）
|
5500
|
|
|
Maximum vertical digging depth（mm）
|
1838
|
|
|
Max.Digging Height（mm）
|
5060
|
|
|
Max.Dumping Height（mm）
|
4899
|
|
|
Min.Radius of gyration（mm）
|
2056
|
|
|
Engine
|
|
|
|
Brand
|
Changchai
|
|
|
Output
|
36.8Kw
|
|
|
Fuel tank capacity（L）
|
80
|
|
|
Performance Parameter
|
|
|
|
Hydraulic pump model
|
Load-sensing pump
|
|
|
Maximum displacement（L/min）
|
45
|
|
|
Hydraulic pressure（Mpa）
|
20
|
|
|
Oil tank volume（L）
|
60
|
|
|
Bucket Capacity（m³）
|
0.12
|
|
|
Bucket digging force（KN）
|
24.2
|
|
|
Travel speed（km/h）
|
16
|
|
|
Swing speed（r/min）
|
11.5
|
|
|
Operating Weight（Kg）
|
4800
|
|
