Quick Details
-
Brand Name:
-
moujen
-
Model Number:
-
MJ2-1704
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25~85(℃)
-
Protection Level:
-
IP65
-
IP level:
-
ip65
-
Product Name:
-
Micro Switch
-
Certification:
-
CQC,CE,UL,cRRU,KC, VDE
-
Ratings:
-
15A 2A 5A
-
Stock:
-
in stock
-
Terminal Type:
-
left , right, straight side PCB,solder,wires
-
Contact Resistance:
-
50MΩ MAX
-
Application:
-
lift
-
OEM/ODM:
-
yes
-
Electrical life:
-
500000
-
Lever / wires:
-
Choosable
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V, 480V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
moujen
-
Model Number:
-
MJ2-1704
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25~85(℃)
-
Protection Level:
-
IP65
-
IP level:
-
ip65
-
Product Name:
-
Micro Switch
-
Certification:
-
CQC,CE,UL,cRRU,KC, VDE
-
Ratings:
-
15A 2A 5A
-
Stock:
-
in stock
-
Terminal Type:
-
left , right, straight side PCB,solder,wires
-
Contact Resistance:
-
50MΩ MAX
-
Application:
-
lift
-
OEM/ODM:
-
yes
-
Electrical life:
-
500000
-
Lever / wires:
-
Choosable
Products Description
|
Specifications
|
|
|
Ratings
|
15A 480V/250V AC
|
|
Temperature
|
5T85
|
|
Electronical life
|
500,000
|
|
Contact Resistance
|
25MΩ MAX
|
|
OEM ODM
|
YES
|
|
Material
|
plastic
|
|
Certification
|
UL,CE, CQC, ENEC,VDE, KC
|

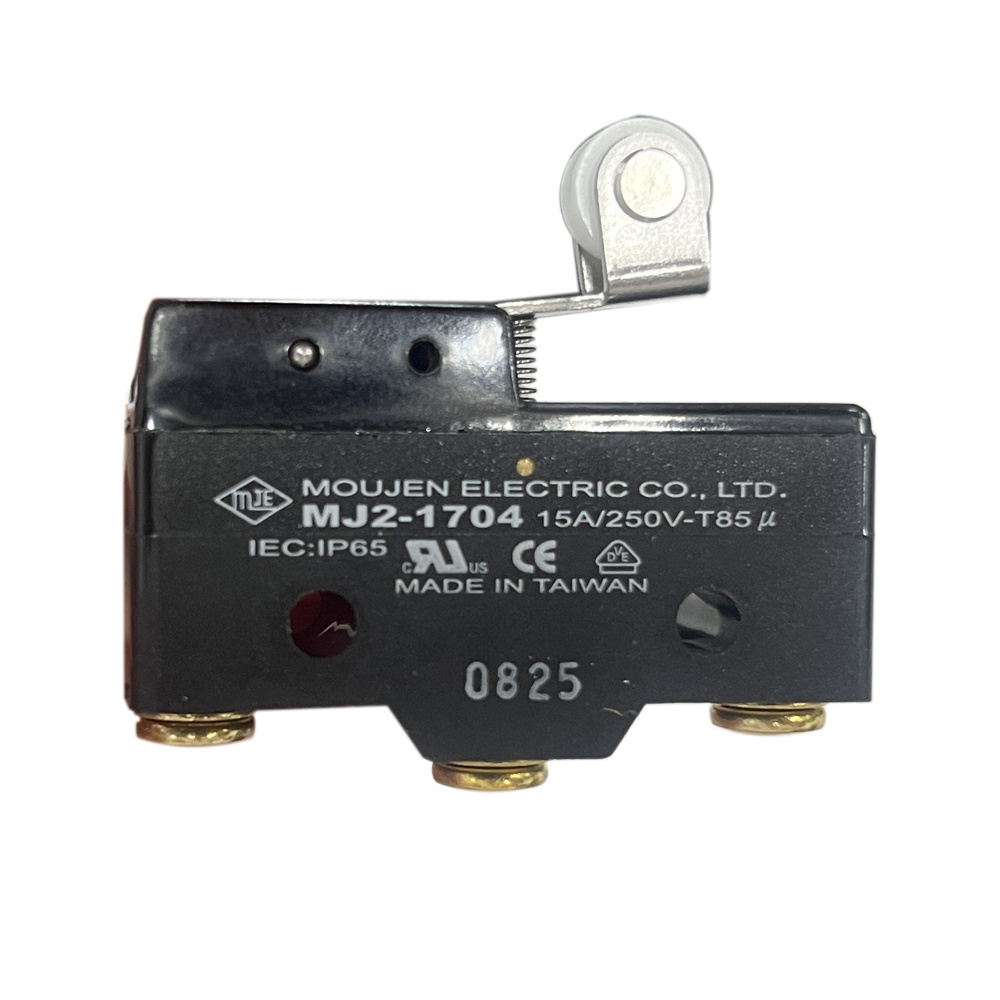

Model: TAIWAN MJ2-1704
Product Overview:
◆ Double circuit limit switch
◆ Strong structure, composed of zinc alloy and reinforced plastic
◆ Small structure, waterproof, oil proof
◆ Built-in micro switch with double spring mechanism, longer mechanical life
◆ With large OT action
◆ Conduit design for easy wiring
◆ Actuator variety, easy to use
Product Specifications:
Operating speed: 0.5mm to 50cm /sec
Operation frequency: mechanical: 120 times/min, electrical: 30 times/min
Contact resistance: 25mΩ or less (initial)
Insulation resistance: 100mΩ or more (under 500VDC)
Withstand voltage: same *** sub: 1000VAC, 50/60HZ for 1 minute
On-load and off-load parts: 1500VAC, 50/60 HZ for 1 minute
Between each terminal and ground: 1500VAC, 50/60 HZ for 1 minute
Vibration: 10-55HZ, 1.5mm double amplitude
Impact: Mechanical durability: 1, 000m /Sec 2 (about 100G S or more)
Misoperation: 300m /Sec 2 (about 30G S or more)
Ambient temperature: -5 ℃ to + 85℃
Humidity: <95% RH
Mechanical life: 10,000,000 times or more
Electrical life: more than 500,000 times
Weight: About 130 to 190g
Protection class: IP65
