Quick Details
-
Output Speed:
-
3000rpm
-
Warranty:
-
12 months
-
Weight (KG):
-
1.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Surian
-
Reduction ratio:
-
1:5
-
Rated output torque:
-
45-140NM
-
Maximum Output Torque:
-
2 times rated torque
-
Rated input speed:
-
3000RPM
-
Maximum input speed:
-
4000RPM
-
Backspace:
-
≤8 Arcmin
-
Full-load transmission efficiency:
-
≥ 96%
-
Use temperature range:
-
-15~+90℃
-
Noise:
-
≤62dB
-
Protection level:
-
IP65
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
45Nm-140Nm
-
Input Speed:
-
4000rpm
-
Output Speed:
-
3000rpm
-
Warranty:
-
12 months
-
Weight (KG):
-
1.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Surian
-
Reduction ratio:
-
1:5
-
Rated output torque:
-
45-140NM
-
Maximum Output Torque:
-
2 times rated torque
-
Rated input speed:
-
3000RPM
-
Maximum input speed:
-
4000RPM
-
Backspace:
-
≤8 Arcmin
-
Full-load transmission efficiency:
-
≥ 96%
-
Use temperature range:
-
-15~+90℃
-
Noise:
-
≤62dB
-
Protection level:
-
IP65

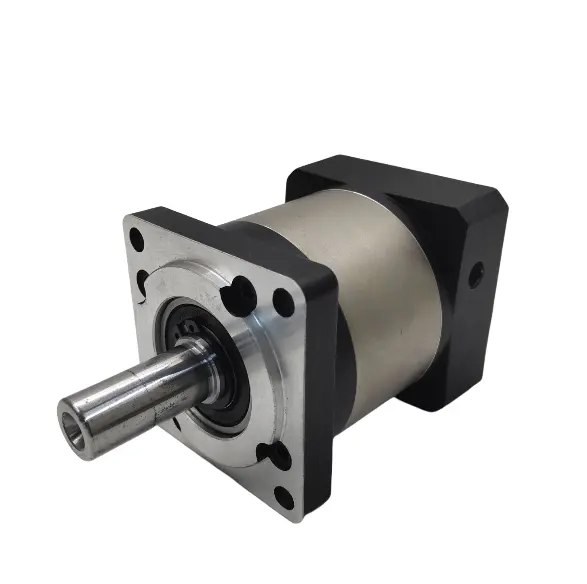

Precision speed reducers flange 90 planetary gearbox planetary gearbox for servo motor 750W
SF Series Planetary Gearboxes
1. SF series precision planetary reducer provides square mounting flange, which has the characteristics of stable transmission, large bearing capacity,s mall transmission space and large transmission ratio.
2. Input flange size is 90 * 90mm
3. Suitable for nema86 stepper motors, brushless motors and 750w servo motors .
