Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Brand Name:
-
Dixin
-
Voltage:
-
380v
-
Weight:
-
3.5 kg
-
Feeding width:
-
120mm
-
After-sales Service Provided:
-
Online Support
-
Name:
-
Aluminium
-
Usage:
-
Roof Tile Panel
-
Roller material:
-
45#steel Chrome Plated
-
Color:
-
Client's Request
-
Export port:
-
tianjin
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ISO
-
Decoiler:
-
5T Manual Decoiler
-
Working material:
-
Prepainted Galvanised Steel(PPGI)
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
30 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Brand Name:
-
Dixin
-
Voltage:
-
380v
-
Weight:
-
3.5 kg
-
Feeding width:
-
120mm
-
After-sales Service Provided:
-
Online Support
-
Name:
-
Aluminium
-
Usage:
-
Roof Tile Panel
-
Roller material:
-
45#steel Chrome Plated
-
Color:
-
Client's Request
-
Export port:
-
tianjin
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ISO
-
Decoiler:
-
5T Manual Decoiler
-
Working material:
-
Prepainted Galvanised Steel(PPGI)

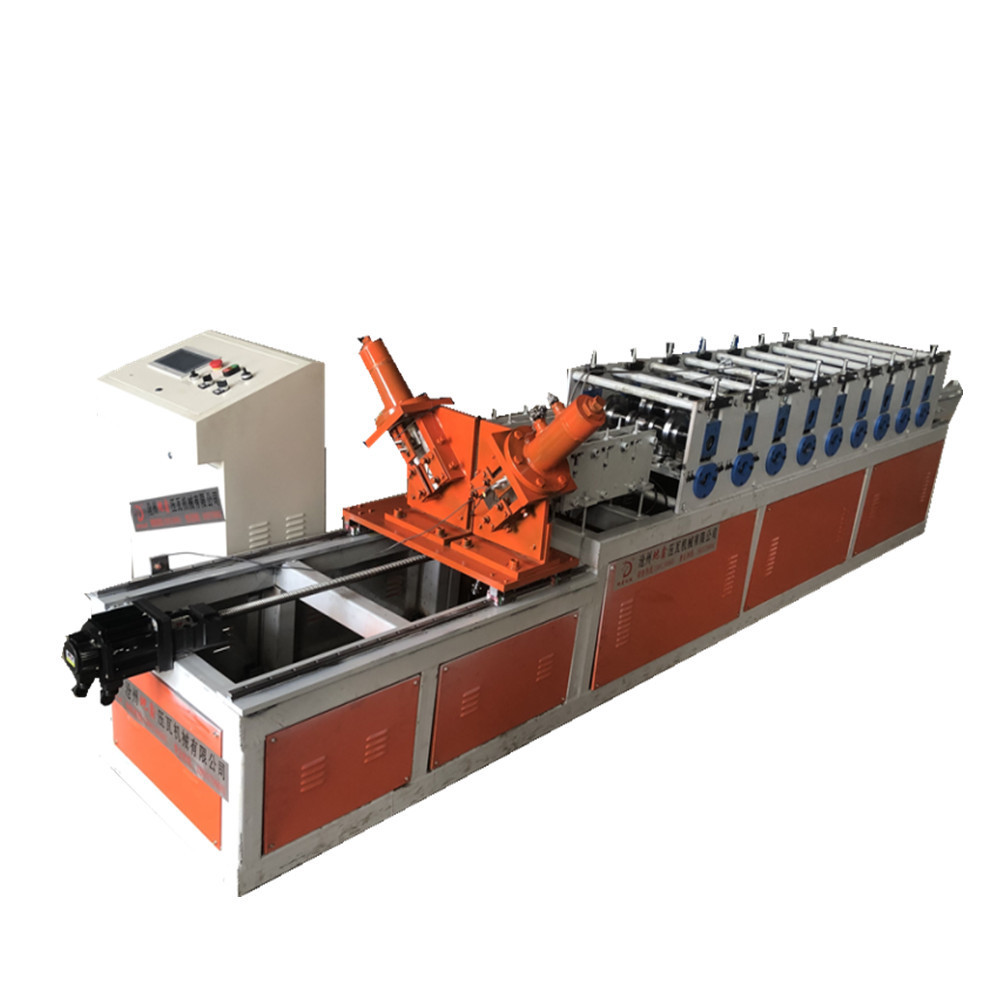

High speed galvanized steel roof truss pressing equipment machinery
| material |
Material thickness: 0.4 -0.8mm max material width 600mm |
|
Process flow |
Decoiling--feeding---forming---cutting---production |
|
Manual Decoiler |
Material coil inner diameter: 450mm-700mm Carrying capacity: 2t |
|
Forming Device |
Number of forming steps:12steps Shaft material: 45# steel with harden treatment, outer diameter 50mm Roller material: 45# steel Main motor power:5.5KW Forming speed: 15-16m/min Voltage:380V/50Hz/3 phrase |
|
Cutting Device |
hydraulic cutter blade, puncher and mold material: Cr12 steel with quenched treated cutting system: advanced hydraulic drive, automatic cutting after forming |
|
Controlling Device |
screen: 5.7 inch Delta screen from Taiwan/touching screen PLC: PLC control (Siemens;Delta;Mitsubishi;Panasonic produce as you like ) |
|
Hydraulic |
Power: 5.5kw |
|
Simple receiving table |
2 pcs of 3m |
