1
.Adopt the German Siemens control software system ensure the working is much more stable.
2.
The bag width, bag sealing temperature and packing speed can all be adjusted on the interface.
3.
The operating language can be programmed according to customer requirements
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
1300
-
Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOLDSEN
-
Dimension(L*W*H):
-
L)5258*(w)3610*(H)3655mm
-
Bag Length:
-
80-300mm
-
Bag Width:
-
80-200mm
-
Packing speed:
-
30-60bags/min
-
Machine weight:
-
1300kg
-
Material:
-
304 stainless steel material
-
Controller:
-
Computer
-
Certification:
-
CE Certification
-
POWER:
-
3.5KW
Quick Details
-
Function:
-
FILLING, Sealing, Wrapping, Weighing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Paper, Plastic, Other
-
Weight (KG):
-
1300
-
Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOLDSEN
-
Dimension(L*W*H):
-
L)5258*(w)3610*(H)3655mm
-
Bag Length:
-
80-300mm
-
Bag Width:
-
80-200mm
-
Packing speed:
-
30-60bags/min
-
Machine weight:
-
1300kg
-
Material:
-
304 stainless steel material
-
Controller:
-
Computer
-
Certification:
-
CE Certification
-
POWER:
-
3.5KW

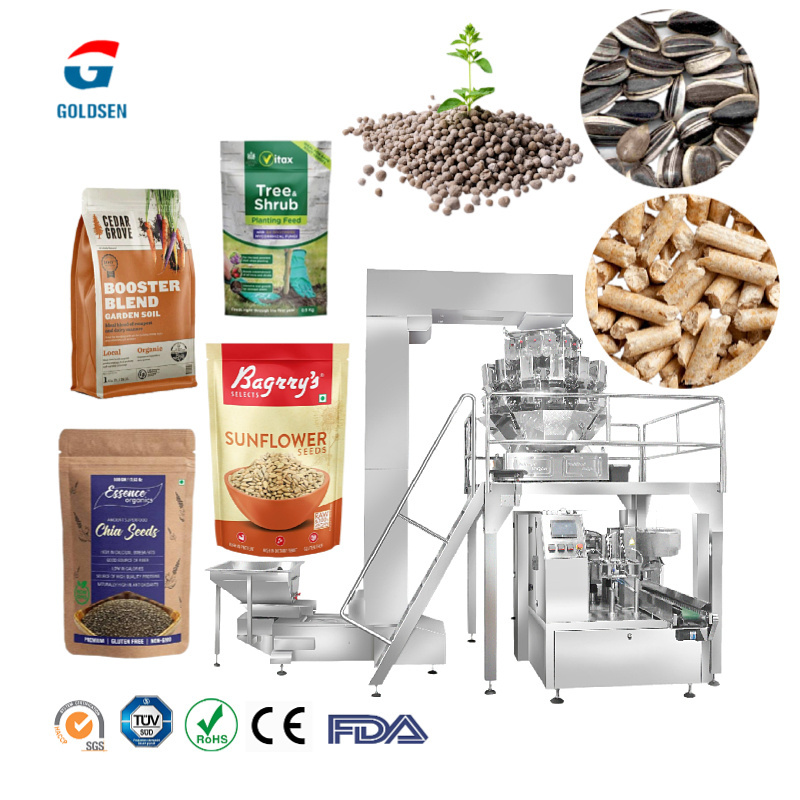

Main Machine of The Production Line
premade pouch filling sealing machine fertilizer pellet sunflower seed bean grain packing machine weighing packaging machine
Product Features
*
Wide application : various shapes, state and nature of products (such as candy,chips,nuts,frozen dumplings,biscuits,mothballs,pet food,puffed food,hardware,plastic parts, etc.)
* Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
* Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
* The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.
* Automatic checking system can check bag situation, filling and sealing situation.
* The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing.
* Stainless steel 304 /other materials ensure sanitation and safety, meet the GMP standard.
* Internal grooved cam design: The echnology with high precision, suits for max. packing speed: 65cycles/min with stable running.
Product Parameters
|
Model
|
GDJ-200LK
|
GDJ-250LK
|
GDJ-320LK
|
|
|
|
Bag Length
|
100-310mm
|
120-400mm
|
150-500mm
|
|
|
|
Bag Width
|
65-210mm
|
120-250mm
|
180-320mm
|
|
|
|
Power
|
5Kw
|
6.5Kw
|
7.5Kw
|
|
|
Details Parts of The Main Machine
Convenient Operation Interface
1
.All premade pouch will be stacked here
2.
The device is inclusive: it can hold bags of different sizes and bag types.
3. The Bag length can be set here as per client's request
3. The Bag length can be set here as per client's request
1
. The 8 Station Workflow including bag given-bag coding -bag opening -packing product filling phase 1-- packing product filling phase 2 - Heat Sealing phase 1 - Heat Sealing phase2 --Bag forming and output .
2
. It will ensure each station working much more stable.
1.
The device is pneumatic ensure the workong is stable . and is mainly used to open the zipper bag.
2.
It is able to adjust on the operation interface of packing machine.
3 .It is Optional fittings, You can buy it or not depend on your bag type
3 .It is Optional fittings, You can buy it or not depend on your bag type
Multiheads Weigher
1
.It can be changed to 4 heads weigher or 10 heads weigher or 14 heads weigher, as per your food specification .filling weight and packing speed request
2
. The Filling weight and filling Speed is adjustable on the operaton.
3.
It is also able to customized as
per packing product request ,for example, if packing food which is sticky, then the contact parts of food must be telfon material.
1
.It is for feeding material to the hopper of 10 heads weigher.
2. There are 2 modes for you to choose from on the feeding elevator. when you choose the linkage working state, he can work in Conjunction with the packaging machine and the multiheads weigher , when you choose the stand-alone working mode, it can work alone
3. The Hopper of Feeding Elevator is around 80L .
2. There are 2 modes for you to choose from on the feeding elevator. when you choose the linkage working state, he can work in Conjunction with the packaging machine and the multiheads weigher , when you choose the stand-alone working mode, it can work alone
3. The Hopper of Feeding Elevator is around 80L .
Date Printer
1
. It is able to print expire date, batch number and manufacture date on the bags.
2.
One pcs ribbon roller is able to print 12000-15000 pcs bags .
3. It can be replace with Thermal transfer printer as clent's request .
3. It can be replace with Thermal transfer printer as clent's request .
Other Components OF The Production Line
Max.Cap.(g) : 10~5000 g
Weighing Accuracy: ±0.5~2 g
Max. Weighing Speed : 65 PPM
Hopper Volume :1600 ml
Power Requirements :200V，50/60HZ，1KW
Dimension(mm):(L)1620*(W)1100*(H)1100MM
Machine Weight: 420KG
Z Type Material Elevator
：
Machine Height :3 m
Working Speed: 0~17 m/min
Capacity : 3~6 m3/hour
Power :220V/380V，0.75KW
Dimension(mm):(L)2900*(W)1000*(H)1000MM
Conveying capacity: 60 bags/min
Power :220V 0.75KW
Machine Weight: 40kg
Application
Goldsen Automatic Horizontal Granule Doypack Packing Machine Is Suitable For Packaging Of Bulk Materials With High Precision And Fragility, Such As: Puffed Food, Jelly, Candy, Nuts, Potato Chips,
Pet Food
,Small Hardware, Medicinal Materials, Etc.
