Quick Details
-
Panel Size:
-
160*160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LEADING-LDCODP1003
-
Product name:
-
P10 led pharmacy cross
-
Protecting Rating:
-
IP65
-
Control:
-
RS232, RJ45 LAN, WIFI
-
Frame Material:
-
Steel / Aluminum
-
Drive Mode:
-
1/4 scan constant currents
-
Cabinet Dimension:
-
1500*1010*100mm(customization)
-
Module Dimension:
-
160*160mm
-
Display Content:
-
animation, graphics, text, date, time, temperature, humidity
-
Cabinet Resolution:
-
96*96pixels
-
Life Span:
-
100,000Hours
-
Pixel Pitch:
-
P4 / P5 / P6 / P8 / P10 / 12.5 / P16...
Quick Details
-
Application:
-
Outdoor / Indoor
-
Brand Name:
-
LEADING
-
Color:
-
tri-color
-
Panel Size:
-
160*160mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LEADING-LDCODP1003
-
Product name:
-
P10 led pharmacy cross
-
Protecting Rating:
-
IP65
-
Control:
-
RS232, RJ45 LAN, WIFI
-
Frame Material:
-
Steel / Aluminum
-
Drive Mode:
-
1/4 scan constant currents
-
Cabinet Dimension:
-
1500*1010*100mm(customization)
-
Module Dimension:
-
160*160mm
-
Display Content:
-
animation, graphics, text, date, time, temperature, humidity
-
Cabinet Resolution:
-
96*96pixels
-
Life Span:
-
100,000Hours
-
Pixel Pitch:
-
P4 / P5 / P6 / P8 / P10 / 12.5 / P16...
Double side cross pharmacy led high resolution p10 pharmacy cross sign green red blue color
|
Part Number |
Value |
|
Pixel Pitch |
10mm |
|
Physical Density |
10240dots |
|
Pixel configuration |
Two leds(RG or GB or RB ) |
|
LED lamp |
DIP346 |
|
Module Resolution |
16×16pixels |
|
Module Dimension |
160×160mm |
|
Cabinet Resolution |
96×96pixels |
|
Cabinet Dimension |
1500×1010×100mm |
|
Cabinet Weight |
48kg |
|
Brightness Level |
6000nits |
|
Max Power Consumption |
650W |
|
Ave Power Consumption |
200W |
|
Viewing Angle |
120°/60° |
|
Operating Power Source |
AC90-240V 50-60Hz |
|
Operating Temperature |
−20℃~+60℃ |
|
Drive Mode |
1/4 scan constant current |
|
Communication Mode |
RS232,RJ45,RF Wireless, WIFI--Default configuration(RF Wireless) |
|
Side |
One/two |
|
Life Span |
100,000Hours |
|
MTBF |
5,000Hours |
|
Protecting Rating |
IP65 |
|
Display Content |
animation, graphics, text, date, time, temperature, humidity |
|
Languages |
English, French, Spanish, Greek, Russian and Italian |
|
Operating system |
Windows (2000/XP/Vista/Win7) / Android / ios |
|
Verification |
CE, EMC, LVD, ROHS |
1) For outdoor usage, pour epoxy resin on the surface, full waterproof
2) Good quality with two side display, remote control board change the display shape.
3) Animations: all leds on, flashing, wave chasing
4) High bright LED for 100,000h
5) Input voltage: AC90-240V 50-60Hz,DC 5V
6) Power consumption:200W
7) Other colors, sizes and one side available!

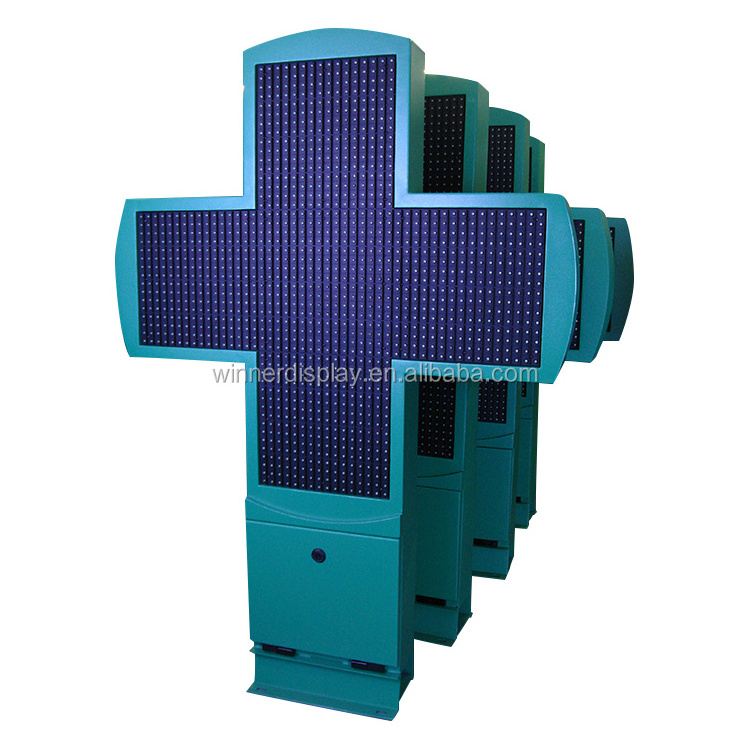

P10 led pharmacy sign green led pharmacy cross display outdoor
Features of LED Pharmacy Cross
1. waterproof, radiation proof
2. light weight, thin depth, front maintenance
3. low power consumption, high bright, easy installation
4. asynchronous control (RF/LAN/WIFI/RS232)
5. display content 2D/3D(animation, graphic, text, time, temperature)
Pharmacy LED sign P10 LED cross screen outdoor for apotheke / crossroad
Application
LED pharmacy cross is one kind of heteromorphic display consisting of LED cross modules and cross cabinet. The system combines with the technology of optics, microelectronics, information processing and transmission, mechanics and other technology etc. as a whole. The main application areas: the chemist's shop, pharmacy, drugstore, Apotheke, farmacia, church, hospital and crossroad.
