Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TECHPROCNC
-
Dimension(L*W*H):
-
1950*1570*1830
-
Weight (KG):
-
710 KG
-
Working area:
-
1300*900mm
-
Control system:
-
Ruida Control System
-
Laser tube:
-
Beijing Reci
-
Laser power:
-
80W/100W/150W/180W
-
Working table:
-
auto feeding table
-
Software support:
-
Artcut CoreDraw Photoshop AutoCAD
-
Software:
-
Ruida V8
-
Motor and Driver:
-
Leadshine stepper motor and driver
-
Function:
-
Automatic scaning and cutting
-
After-sales Service Provided:
-
Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United Kingdom, United States, Italy, France, Germany
-
Showroom Location:
-
United Kingdom, United States, Italy, France, Germany
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Engraving Area:
-
1300*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
80mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TECHPROCNC
-
Dimension(L*W*H):
-
1950*1570*1830
-
Weight (KG):
-
710 KG
-
Working area:
-
1300*900mm
-
Control system:
-
Ruida Control System
-
Laser tube:
-
Beijing Reci
-
Laser power:
-
80W/100W/150W/180W
-
Working table:
-
auto feeding table
-
Software support:
-
Artcut CoreDraw Photoshop AutoCAD
-
Software:
-
Ruida V8
-
Motor and Driver:
-
Leadshine stepper motor and driver
-
Function:
-
Automatic scaning and cutting
-
After-sales Service Provided:
-
Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United Kingdom, United States, Italy, France, Germany
-
Showroom Location:
-
United Kingdom, United States, Italy, France, Germany
-
Marketing Type:
-
Ordinary Product

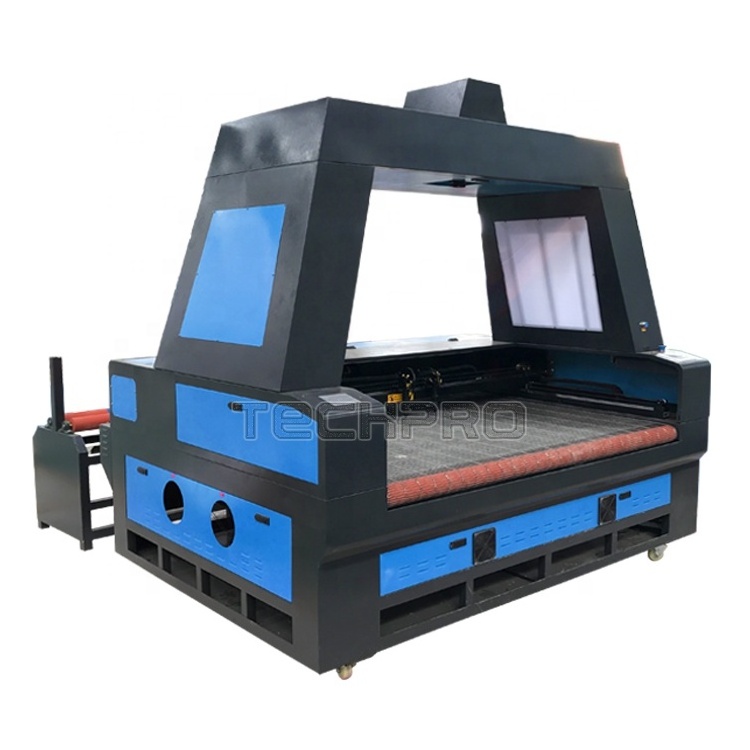

TechProCNC ccd camera laser cutting machine for fabric leather textile garment and cloth cutting industry
Features of CCD Camera:
1) The CCD camera laser machine can compensate automatically to pinpoint deformation of the fabric,it ensures the accuracy of cutting.
2) The camera can get every edge of the objection and extend (entad or forth) expected distance, and then cut them. According to common knowledge, the fabric labels may a little different from each other, and adoption of this technology can solve this problem.
3) Install 2-3 million pixel colorful camera. Can do accurately locating cutting for those edge-immovable objections. For example, it can accurately cut those distorted-not-much fabric labels.
4) Adopt high quality CO2 laser tube, longer service life, the output is more stable.
Applicable Industries:
CNC Laser machine with CCD camera can cut as the outlines of the shooting, and automatically cutting edge of its trademarks, which is widely used in fabric, leather, textile, garment and cloth cutting industry. With the personalized apparel industry development , more and more shaped marks are demanded, the past can not meet the needs of traditional cutting process, but CCD camera Laser cutting machine is the perfect do-shaped mark cutting
Configuration:
|
Laser type |
CO2 type |
|
Working area |
1300*900mm |
|
Laser power |
100w(80w/130w/150w/180w for option) |
|
Control system |
Ruida |
|
Driver and motor |
Leadshine motor and driver |
|
Transmission |
Hiwin square rail and high quality belt |
|
Lens and mirror |
Original Singapore |
|
Work table |
Auto feeding table |
|
Red dot position |
Yes |
|
Machine color |
White and blue or black and red or Green and White |
|
Delivery time |
12 days |
|
Cooling mode |
Water-cooling |
|
Power adjusting |
0-100%controlling,adjusting by software |
|
Max engraving speed |
60m/min |
|
Max cutting speed |
50m/min |
|
Repeating location |
±0.01mm |
|
Minimum Character |
Chinese character 1.5mm, christcross-row 1mm |
|
Working voltage |
AC220V 50/60HZ |
|
Body dimension(L*W*H) |
1970*1590*1820mm |
|
Packing |
Plywooden case |
|
Gross weight |
650KG |
|
Working environment |
Temperature: 0-45,Humidity: 5%-95% |
|
Controlling software language |
Chinese, English, French, Russian, Portuguese, Turkish, German |
|
Dictate format |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD, CoreDraw direct outputting |
|
Optional Equipment |
|
| Optional |
Rotary axis device |
|
Up down table |
|
|
Water chiller |
|
|
Sony CCD camera head |
|
Machine Parts:
Machine Samples:
Packaging detail:
1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.
3). Machine packing size: 1970*1590*1830mm ,GW: 710kg
Shipping detail:
Shipped in 5-10 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
2) Some extra spare parts (Electrical components, limit switches etc)
1.
) Warranty: One year on parts from date of shipping date, 3 years for free repair. Life-time technical support.
2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, laser application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.
5.) 3-5 days free machine training when visit our factory .
