- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
xianglong
-
Year:
-
2022
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3000*2000*2500mm
-
Hollow part volume:
-
15L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
12 kW
-
Extruder Motor Power(kW):
-
22 kW
-
Mold Platen Size(Width)(mm):
-
500 mm
-
Mold Platen Size(Height)(mm):
-
500 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
0.8 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
3.4
-
Weight (T):
-
3.4
-
Name:
-
automatic blow molding machine
-
Key words:
-
extrusion blow molding machines
-
Type:
-
Blow Machine
-
Station:
-
double Station
-
Use:
-
Making Bottle
-
Material application:
-
PP PE HDPE
-
Product name:
-
Plastic Blow Molding Machine
-
Product Type:
-
Die Head Blow Molding Machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
Quick Details
-
Clamping Force (kN):
-
50
-
Output (kg/h):
-
100 kg/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
xianglong
-
Year:
-
2022
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3000*2000*2500mm
-
Hollow part volume:
-
15L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
12 kW
-
Extruder Motor Power(kW):
-
22 kW
-
Mold Platen Size(Width)(mm):
-
500 mm
-
Mold Platen Size(Height)(mm):
-
500 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
0.8 m³/min
-
Die Head Heating Power(kW):
-
15 kW
-
Accumulator Capacity(L):
-
0 L
-
Power (kW):
-
3.4
-
Weight (T):
-
3.4
-
Name:
-

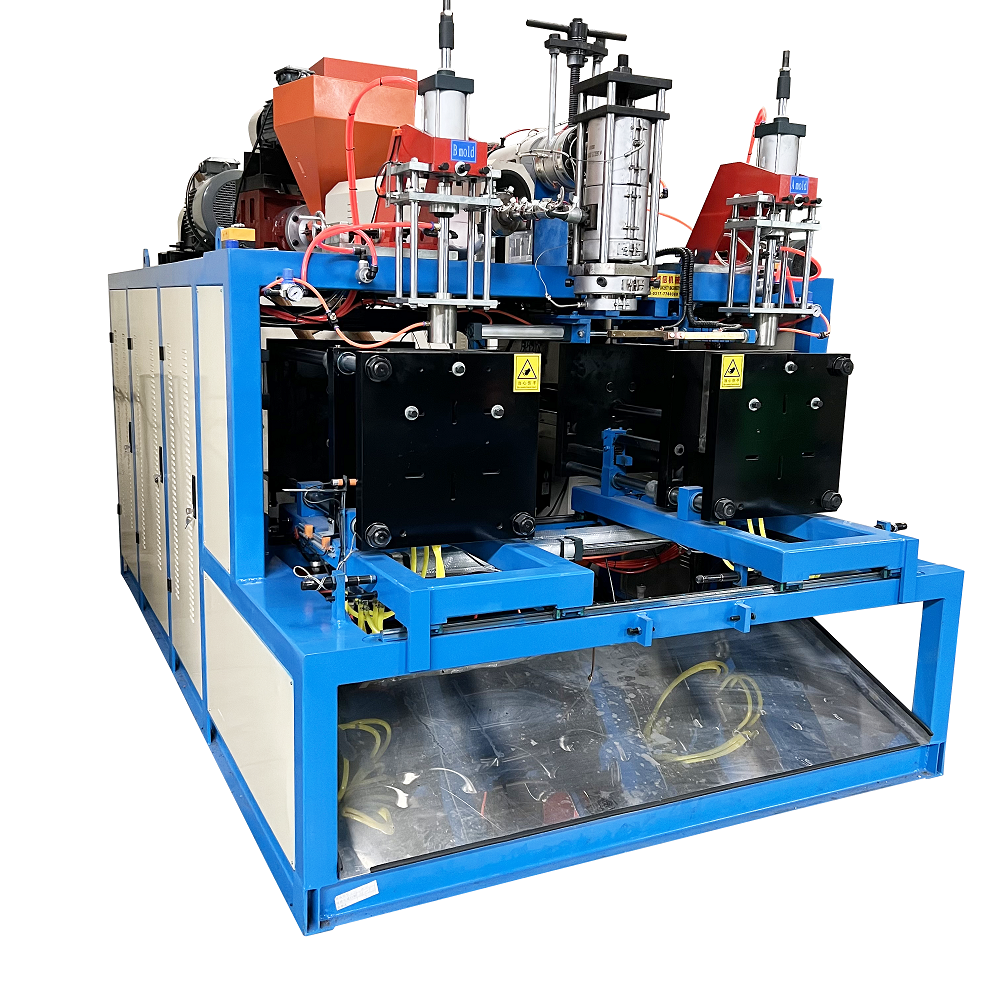

automatic blow molding machine
-
Key words:
-
extrusion blow molding machines
-
Type:
-
Blow Machine
-
Station:
-
double Station
-
Use:
-
Making Bottle
-
Material application:
-
PP PE HDPE
-
Product name:
-
Plastic Blow Molding Machine
-
Product Type:
-
Die Head Blow Molding Machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
Product Description
|
Parammeters/Model
|
XLQ2.5L-2
|
XLQ1L-3
|
XLQ500ML-4
|
|
|||
|
Bottle Volume(L)
|
2.5
|
1
|
500ml
|
|
|||
|
Sub screw diameter(mm)
|
30
|
30
|
30
|
|
|||
|
Screw diameter(mm)
|
80
|
80
|
65
|
|
|||
|
Central distance of Bi-head(mm)
|
200
|
150
|
85
|
|
|||
|
Screw L/D ratio
|
25:1
|
25:1
|
25:1
|
|
|||
|
Screw Motor Power(kw)
|
18.5
|
18.5
|
15
|
|
|||
|
Heating power(kw)
|
30
|
30
|
20
|
|
|||
|
Hydraulic motor(KW)
|
15
|
15
|
5.5
|
|
|||
|
Clamping force(KN)
|
110
|
110
|
70
|
|
|||
|
Max.plasticizing capacity(kg/h)
|
70
|
70
|
50
|
|
|||
|
Way of control
|
PLC contral
|
|
|
|
|||
Product details
Recommend Products
Company Information
Packing &Delivery
Our Customers
Certifications
FAQ
[1] Q: Are you a factory or trading company?
A: We are a factory.
[2] Q: Where is your factory located?
A: Our factory is located in Nanxiakou town, dongguang county, cangzhou city, hebei province.
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers needs. factory focuses on quality,quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee.
[5] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes , we can provide full blow molding machine line ,before and after sales service
[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
[7] Q: Can you offer big size blow molding machine? Can you make multilayers and multi-colors?
A: Yes,we can offer you up to 2000L blow molding machine,our factory have patent for the multilayers and multi-colors!
