Quick Details
-
Mold Height(mm):
-
150 - 420 mm
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
280 cm³
-
Injection Rate (g/s):
-
100 g/s
-
Injection Weight (g):
-
252 g
-
Screw Speed (rpm):
-
1 - 190 rpm
-
Screw diameter (mm):
-
40 mm
-
Screw L/D Ratio:
-
22.2
-
Distance between Tie Bars:
-
428x386 mm
-
Weight (KG):
-
4200 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
365 mm
-
Model Number:
-
BST-1400A
-
Brand Name:
-
Best Machine
-
Power (kW):
-
26 kW
-
Product Name:
-
Plastic Mobile Phone Case Making Injetion Molding Machine Manufacture
-
Shot Weight:
-
280cm^3
-
Injection Pressure:
-
160MPa
-
Nozzle Diameter:
-
10srmm
-
Ejector Stroke:
-
140mm
-
Ejector Force:
-
50KN
-
Machine Dimension(L*W*H):
-
4.8*1.6*1.7 m
-
Machine Weight:
-
4.2T
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
428mm
-
Distance between Tie Bars(Height)(mm):
-
386mm
-
Plasticizing Capacity(g/s):
-
100
-
Mold Height(mm):
-
150 - 420 mm
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
280 cm³
-
Injection Rate (g/s):
-
100 g/s
-
Injection Weight (g):
-
252 g
-
Screw Speed (rpm):
-
1 - 190 rpm
-
Screw diameter (mm):
-
40 mm
-
Screw L/D Ratio:
-
22.2
-
Distance between Tie Bars:
-
428x386 mm
-
Weight (KG):
-
4200 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
365 mm
-
Model Number:
-
BST-1400A
-
Brand Name:
-
Best Machine
-
Power (kW):
-
26 kW
-
Product Name:
-
Plastic Mobile Phone Case Making Injetion Molding Machine Manufacture
-
Shot Weight:
-
280cm^3
-
Injection Pressure:
-
160MPa
-
Nozzle Diameter:
-
10srmm
-
Ejector Stroke:
-
140mm
-
Ejector Force:
-
50KN
-
Machine Dimension(L*W*H):
-
4.8*1.6*1.7 m
-
Machine Weight:
-
4.2T
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support

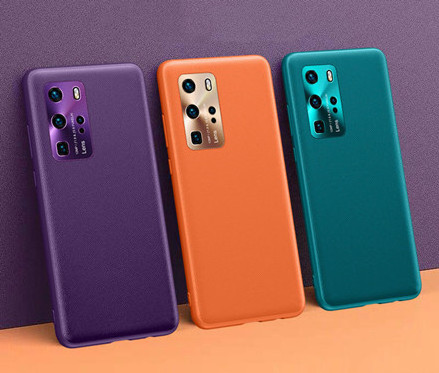

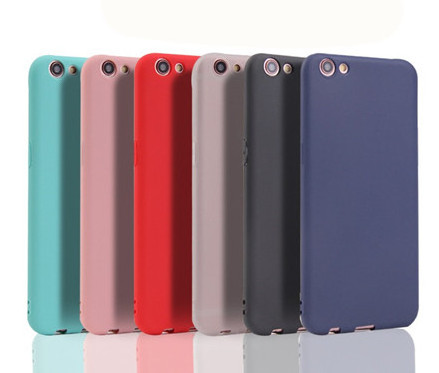

Pictures Of Finished Products Made By Our Machine
The specifications are as follows:
- Imported advanced computer systems, Chinese, English, Russian, Spanish, French, Arabic interface.
- C an save 100 sets of mould parameters.
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
- Suitable for producing different types of precision small parts.
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement
.
- Quality:12 month Quality guarantee ,Free spare parts replacement,(NOT include man-made sabotage)
- Service:We provide free advanced training and maintenance in china factory,and 24 hours on-line or phone service if you requ e st we also can pro vid e installation and training abroad,until customer's satisf a ction
- Delivery time: 60 days after advance payment
|

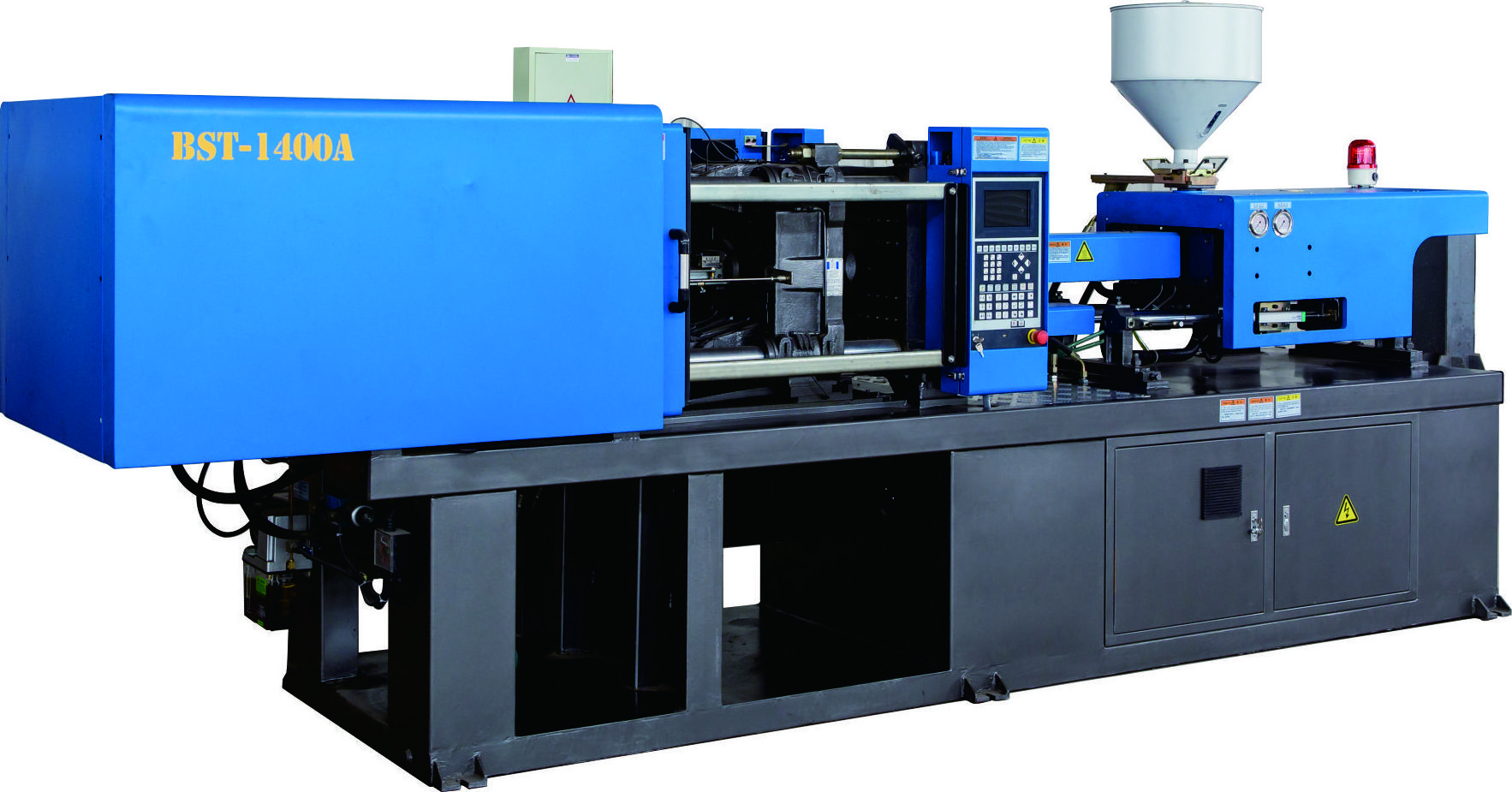

MODEL
|
|
BST-1400A
|
|
|||
|
INJECTION UNIT
|
|
A
|
B
|
|||
|
Screw Diameter
|
mm
|
36
|
40
|
|||
|
Shot Size(Theoretical)
|
cm
3
|
256
|
280
|
|||
|
Shot Weight
|
g
|
230
|
252
|
|||
|
Injection Pressure
|
MPa
|
176
|
160
|
|||
|
Injection Rate
|
g/s
|
95
|
100
|
|||
|
Screw L/D Ratio
|
L/D
|
23.4
|
22.2
|
|||
|
Screw Speed
|
r.p.m
|
0-190
|
|
|||
|
Nozzle Diameter
|
srmm
|
10
|
|
|||
|
CLAMPING UNIT
|
|
|
|
|||
|
Clamp Tonnage
|
KN
|
1400KN
|
|
|||
|
Toggle Stroke
|
mm
|
365
|
|
|||
|
Mould Thickness
|
mm
|
150-420
|
|
|||
|
Space Between Tie-bars
|
mm
|
428*386
|
|
|||
|
Ejector Stroke
|
mm
|
140
|
|
|||
|
Ejector Tonnage
|
KN
|
50
|
|
|||
|
Ejector Number
|
Piece
|
5
|
|
|||
|
Hole Diameter
|
mm
|
100
|
|
|||
|
OTHERS
|
|
|
|
|||
|
Heat Power
|
KW
|
8.2
|
|
|||
|
Max. Pump Pressure
|
MPa
|
16
|
|
|||
|
Pump Motor Power
|
KW
|
13
|
|
|||
|
Valve Size
|
mm
|
10
|
|
|||
|
Machine Dimension
|
m
|
4.8*1.6*1.7
|
|
|||
|
Machine Weight
|
T
|
4.2
|
|
|||
|
Oil Tank Capacity
|
L
|
220
|
|
|||
