Quick Details
-
Model Number:
-
MH 7090
-
Usage:
-
Pig Chicken
-
Product name:
-
Cooling Pad
Quick Details
-
Weight (KG):
-
7
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MUHE
-
Model Number:
-
MH 7090
-
Usage:
-
Pig Chicken
-
Product name:
-
Cooling Pad
Products Description
SHANDONG MUHE

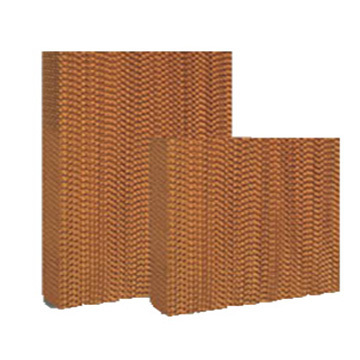

Evaporative Celdek Cooling Pad
For Greenhouse Poultry Farm
Plastic Frame Gutter Cooling System:
Muhe Plastic Frame Cooling Pad System consists of a plastic or paper cooling pad, inside water pipes and the special deflector and self circulating PVC frame.
Muhe Plastic Frame Cooling Pad System consists of a plastic or paper cooling pad, inside water pipes and the special deflector and self circulating PVC frame.
Main Feature
1.
Easy installation:
Includes an internal water tank, no need for external water tank;
3. Adjustable length and height due to its modular structure;
4. The pads can be easily installed and uninstalled due to the special lock system
5. System includes a drain valve for cleaning at the end of cycle.
|
Maximum Height:
|
200CM
|
|
Pad sheet thickness:
|
10 or 15CM
|
|
Internal Water Tank Capacity:
|
30 lt / 1 m
|
|
Water Pipe Size:
|
Ø 50mm
|
|
Water Pump Force:
|
0.37/0.75/1.1/1.5KW
|
|
Pump Capacity
|
12 m3/h at 8m for 0.37KW
|
Details Images
Closing Edge
The interlock system enables sturdy installation.
Deflector
Prevents external pollutants from entering the system. Pipe size is 2” and it’s punched on the upper part.
Sprinkling
The drip irrigation system allows the water to percolate down on the pads in equal amounts.
TOP bracket
Allows the system to be opened from the top and to be easily serviced.
Rustproof Support Legs
Support legs that enable the system to be installed on walls and panels.
Internal Water Tank
The bottom gutter can store 30lt of water every running meter.
Floating System
The bottom tank where water level is kept by a floater preventing the waste of water.
Water Pump with Self Filter
The self filtered water pump enables the continuous circulation of water within the system.
Floating System in the Middle
Special Floating System can be installed in the middle of the system if it is required.
Project Installation
Shandong Muhe machinery Co., Ltd is a company that engages in the research of air-flow
dynamics and environmental control.lt specializes in designing and manufacturing temperature controlling machineny. through intensive cooperation with renowned universities in China, our company has established a research institute that combines the aspects of study, research and production in order to develop innovations in machinery involved with ventilation and heating as well as products for poultry facilities. With the help of CAD software and advanced technology abroad, we aim to design products that exhibit energy saving properties that operate with high efficiency, all while maintaining environmental friendliness.
Shandong Muhe Machinery Co., Ltd is a pioneer and leader in the industry of ventilating, cooling and heating equipment that is used in workshops, conservatories and standard poultry shacks.
Muhe provides products in six series, as well as over thirty types of devices to include poultry fans,cooling pads, negative pressure blowers,gardening fans, roofing automatic ventilation devices,axial flow fans, air fumnaces, various tvpes of feeding eauipment and So on. These products can be widely used in a variety of settings within both agriculture and industry.
dynamics and environmental control.lt specializes in designing and manufacturing temperature controlling machineny. through intensive cooperation with renowned universities in China, our company has established a research institute that combines the aspects of study, research and production in order to develop innovations in machinery involved with ventilation and heating as well as products for poultry facilities. With the help of CAD software and advanced technology abroad, we aim to design products that exhibit energy saving properties that operate with high efficiency, all while maintaining environmental friendliness.
Shandong Muhe Machinery Co., Ltd is a pioneer and leader in the industry of ventilating, cooling and heating equipment that is used in workshops, conservatories and standard poultry shacks.
Muhe provides products in six series, as well as over thirty types of devices to include poultry fans,cooling pads, negative pressure blowers,gardening fans, roofing automatic ventilation devices,axial flow fans, air fumnaces, various tvpes of feeding eauipment and So on. These products can be widely used in a variety of settings within both agriculture and industry.
