Quick Details
-
Voltage:
-
220v, 50Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZONGRUI
-
Dimensions(L*W*H):
-
1700(L)x850(W)x1200(H)mm
-
Weight:
-
670kgs
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Max. printing size:
-
460x345mm
-
Max. sheet size:
-
470x365mm
-
Plate size:
-
470x395x0.15mm
-
Blanket size:
-
470x420x1.95mm
-
Usable paper:
-
28-250gsm
-
Ink roller:
-
14pcs (3 forme inking rollers)
-
Dampening roller:
-
5pcs (2 forme dampeninging rollers)
-
Printing speed:
-
2000-7000 sheets/hour
-
Main motor:
-
0.75kw
-
Certification:
-
ISO9001,CE Certificate
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Two colors
-
Voltage:
-
220v, 50Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZONGRUI
-
Dimensions(L*W*H):
-
1700(L)x850(W)x1200(H)mm
-
Weight:
-
670kgs
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Max. printing size:
-
460x345mm
-
Max. sheet size:
-
470x365mm
-
Plate size:
-
470x395x0.15mm
-
Blanket size:
-
470x420x1.95mm
-
Usable paper:
-
28-250gsm
-
Ink roller:
-
14pcs (3 forme inking rollers)
-
Dampening roller:
-
5pcs (2 forme dampeninging rollers)
-
Printing speed:
-
2000-7000 sheets/hour
-
Main motor:
-
0.75kw
-
Certification:
-
ISO9001,CE Certificate
|
This machine has smart structure,practicable and economical.
It’s an advanced type on basic of Hamada machine.
It adopts two form ink rollers and one form dampening roller structure.
It can achieve single-color print, over print for 2 Colors,3 Colors,4 Colors.
It has the plate micro-adjustment function.
It’s easy to operate. (Pneumatic Press,Touching Screen is optional)
It adopts advanced PLC programmable controller |
|
ZR47IIS |

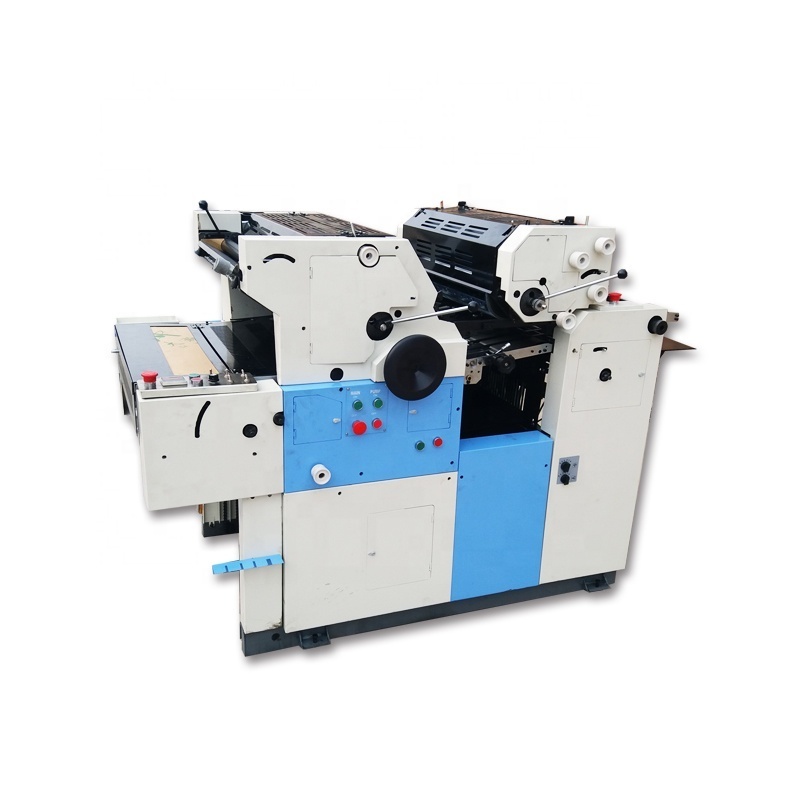

PPrinting Machine Worldwide Sales ZR47IIS 2 Colors Paper Cup Printing Machine |
|
|
|
Model |
ZR47IIS |
|
|
Max. printing size |
460 × 345mm |
|
|
Max. sheet size |
470 × 365mm |
|
|
Plate size |
470 × 395 × 0.15mm |
|
|
Blanket size |
470 × 420 × 1.95mm |
|
|
Usable paper |
28-250g sm |
|
|
Ink roller |
14pcs (3 forme inking rollers) |
|
|
Dampening roller |
5pcs (2 forme dampening rollers) |
|
|
Printing speed |
2000-8000 sheets/hour |
|
|
Power supply |
Single-phase: 220v, 50Hz |
|
|
Main motor |
0.75kw |
|
|
Air pump motor |
0.55kw |
|
|
Machine dimension |
1700(L) × 850(W) × 1200(H)mm |
|
|
Net weight |
670kg |
|
|
Package dimension |
1810(L) × 1010(W) ×1470(H)mm |
|
|
Gross weight |
770kg |
|
Exact registration: water supplying, ink supplying and platform pressing each units can be finished at different lever with the same handle. Joint pressure of printing rollers is controlled with an electric eye, which is more reliable and easy to be regulated. |
|
|
Accurate orientation: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down. |
|
|
The latest control system: Using the most advanced control system of computer program and circuit board, that can improve production efficiency and also reduce the errors of printing. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward. |
|
|
Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop. |
|
|
Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink. |
|
|
Automatic pause: the machine can be paused automatically when paper order is out of control, then automatic alarm, which can avoid waste paper. |
|
|
Centralized Lubricating oil supply: ( Optional ) use Auto system to control Lubricating oil for the important parts of machine which can improve the efficiency of machine. |
|
|
Presented counter: ( Optional ) This machine adopts electromagnetic presented counter. If the quantities printing work finishes, the paper feeding stops automatically. |
