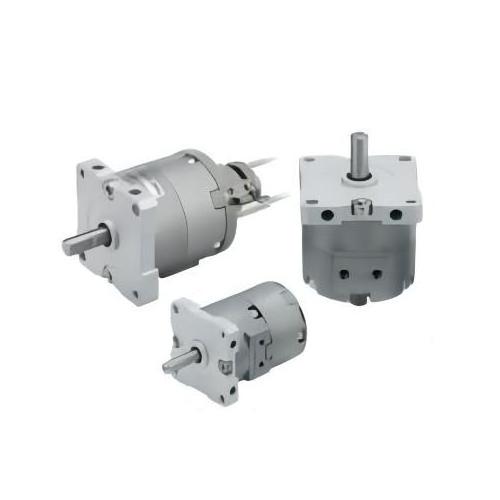

SMC Standard Type/Series CRBU2 Rotary Table
SMC Standard Type/Series CRBU2 Rotary Table
SMC Standard Type/Series CRBU2 Rotary Table
SMC Standard Type/Series CRBU2 Rotary Table
SMC Standard Type/Series CRBU2 Rotary Table
SMC Standard Type/Series CRBU2 Rotary Table
SMC Standard Type/Series CRBU2 Rotary Table
SMC Standard Type/Series CRBU2 Rotary Table

SMC Standard Type/Series CRBU2 Rotary Table

FOB Reference Price: Get Latest Price
≥1 Pieces
US $140
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Japan
Brand Name:
SMC
Material:
Box
Product name:
SMC Standard Type/Series CRB2 Rotary Table
Application:
Pneumatic Component
Model:
CRBU
Keyword:
Standard type
Brand:
SMC
Packing:
One Piece
Structure:
Standard
Rotating angle:
90°, 180°, 270°
Shaft type variations:
Six shaft options available
Connecting port location:
Side ported or Axial ported

Quick Details

Weight (KG):
0.3
Video outgoing-inspection:
Based
Machinery Test Report:
Based
Place of Origin:
Japan
Brand Name:
SMC
Material:
Box
Product name:
SMC Standard Type/Series CRB2 Rotary Table
Application:
Pneumatic Component
Model:
CRBU
Keyword:
Standard type
Brand:
SMC
Packing:
One Piece
Structure:
Standard
Rotating angle:
90°, 180°, 270°
Shaft type variations:
Six shaft options available
Connecting port location:
Side ported or Axial ported
SMC Standard Type/Series CRBU2 Rotary Table
Product Paramenters
Many combinations available!

Free mount type/Series CRBU2
Rotating angle: 90°, 180°, 270°
All series can rotate up to 270°

The use of specially designed seals and stoppers now enables our compact vane type rotary actuators to rotate up to 270°. (Single vane type)
Interchangeable mounting pitch with the current model
Mounting pitches A to C shown and mounting hole diameters are interchangeable with the current model.
Shaft type variations
Six shaft options available(∗The figures below show size 30 actuators.)
Direct mounting
The rotary actuator body can be mounted directly.
∗Not possible for size 10 to 40 with unit(s)
The mounting position of the auto switch can be set freely.
The switch can be fixed in the desired position in the circumferential direction.
Connecting port location:
Side ported or Axial ported
The port location can be selected according to the application.
(Size 10 to 40 with unit(s) are side ported only.)
Double vane type is standardized for 90° and 100°.
The outside dimensions of the double vane type are equivalent to those of the single vane type (except size 10). Double vane construction can get twice the torque of the single vane type.
Free Mount Type/Series CRBU2
Possible to change the starting position as desired to suit the installation conditions.
Conventional: 4 directions → 8 directions
12% weight reduction
Lighter installation can be achieved
Six types of direct mounting are possible
Interchangeable mounting with the current model
Size
CRBU2(g)
Reduction rate(%)
Current model
10
42
12
47.5
15
64
12
73
20
130
10
143
30
248
5
263
40
465
5
491
Compared with single cane at 90°
