Quick Details
-
Brand Name:
-
muwang
-
Model Number:
-
WL1818J
-
OEM & ODM:
-
Yes
-
Nominal Diameter:
-
462mm/18Inch
-
Nominal impedance:
-
7.2 OHM
-
Max Power Input:
-
1000W
-
Frequency Range:
-
43-0.9kHz
-
Sensitivity:
-
95.5db
-
Voice Coil Diameter:
-
99.5mm/4 Inch
-
Magnet Diameter:
-
220*110*25mm
-
BasketIron:
-
Aluminum
-
Winding Depth:
-
20mm
Quick Details
-
Power:
-
1000W
-
Frequency Range (Hz):
-
43-0.9kHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
muwang
-
Model Number:
-
WL1818J
-
OEM & ODM:
-
Yes
-
Nominal Diameter:
-
462mm/18Inch
-
Nominal impedance:
-
7.2 OHM
-
Max Power Input:
-
1000W
-
Frequency Range:
-
43-0.9kHz
-
Sensitivity:
-
95.5db
-
Voice Coil Diameter:
-
99.5mm/4 Inch
-
Magnet Diameter:
-
220*110*25mm
-
BasketIron:
-
Aluminum
-
Winding Depth:
-
20mm
Product Parameter
| Model | WL1818J |
| Product Name |

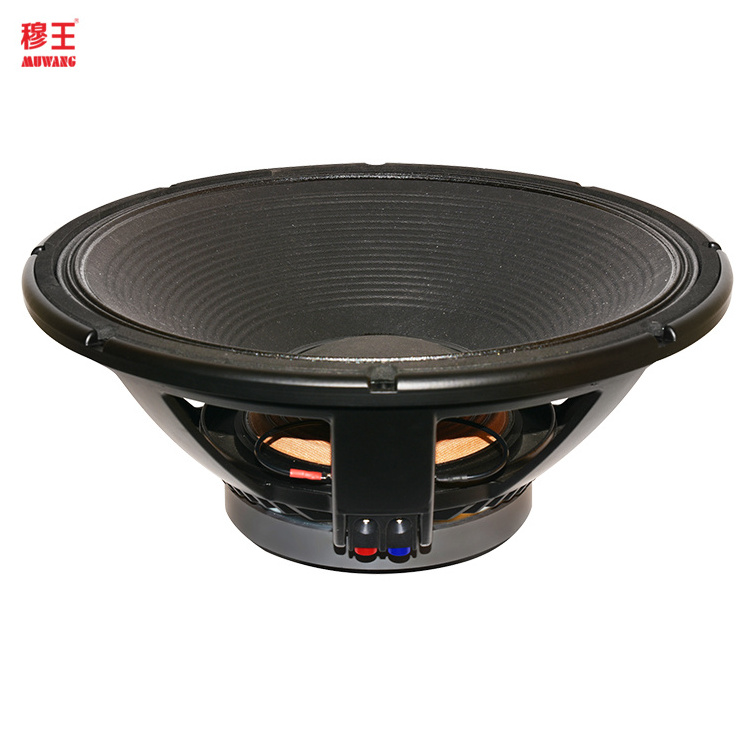

18 inch sub woofer speaker |
General Specifications
| Nominal Diameter | 462mm |
| Resonate Frequency fs |
43Hz |
| Resonate Frequency Range |
43-0.9kHZ |
| Sensitivity | 95.5db |
| Nominal Impedance | 7.2 0 HM |
| Shortterm Maximum Power | 2000W |
| Magnet Diameter | 220mm |
| Voice Coil Diameter | 99.5mm |
| Mechanical Quality Factor ,Qms | 5.75 |
| Total Quality Factor,Qts |
0.45 |
| Equivalen Air Volume to Cms,Vas | 144L |
Physical Information
| Basket(Frame) | aluminum |
| BL | 29.5T.m |
| Voice Coil Wire | CCAW |
| Voice Coil Bobbin |
Aluminium(ASV) |
| Magnet |
Ferrite |
