- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOMUU
-
Model Number:
-
U2
-
Torque:
-
Requests
-
Product Name:
-
TOMUU
-
Application:
-
Medical Care
-
Rated Voltage:
-
12/24V
-
Rated Speed:
-
10-30mm/s
-
Motor type:
-
Dc Brush Gear Motor
-
Material:
-
Metal Steel
-
Stroke:
-
200-800mm
-
Limit Switch:
-
Built-in Limit Switch
-
Certification:
-
ce
Quick Details
-
Speed(RPM):
-
2600-3400r/m
-
Continuous Current(A):
-
1-4A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOMUU
-
Model Number:
-
U2
-
Torque:
-
Requests
-
Product Name:
-
TOMUU
-
Application:
-
Medical Care
-
Rated Voltage:
-
12/24V
-
Rated Speed:
-
10-30mm/s
-
Motor type:
-
Dc Brush Gear Motor
-
Material:
-
Metal Steel
-
Stroke:
-
200-800mm
-
Limit Switch:
-
Built-in Limit Switch
-
Certification:
-
ce

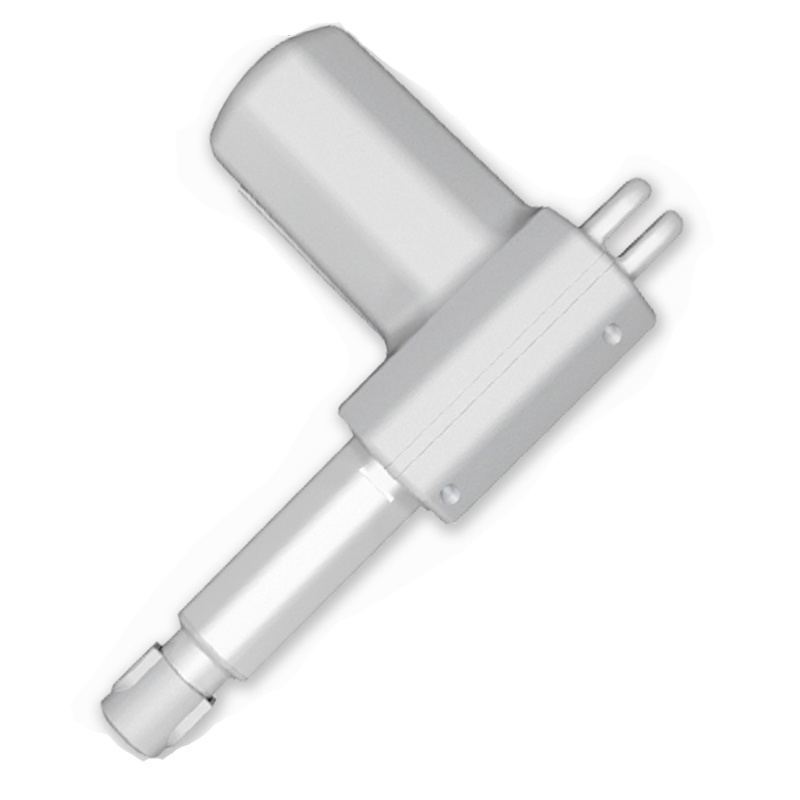

U2 is designed for hospital bed, healthcare equipment, etc. where strong force is needed. It is very quiet, and strong. Hall sensor for position feedback is available.
SPECIFICATION
Voltage: 12 / 24 VDC
Max. Load: 8,000 N (Push); 4,000 N (Pull)
No-Load Speed: 4.7 ~ 35mm/s
Full-Load Speed: 2.35 ~ 20mm/s
Installation Dimension: S + 163mm
Noise level: ≤52dB
Duty Cycle: 10%
TOMUU has series complete equipments for testing load, speed, stroke, installation ,waterproof etc.
Please note : All parameters and details showed on website are based on our standard one . We would recommend giving us more details as follow, so that we can give better suggestions:
1. Where do you use it
2. Voltage
3. Max. load
4. Speed
5. Stroke
6. Min. installation
7. Other features, like IP protection( waterproof), hall sensor, potentiometer, noise level, duty cycle, etc.
