Quick Details
-
Product Name:
-

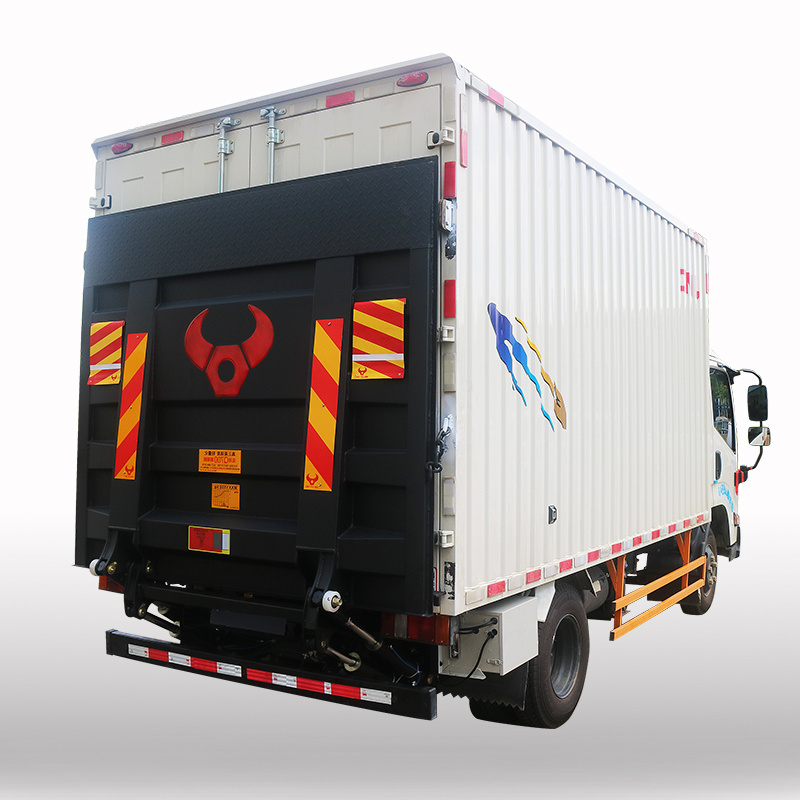

2000kg Truck Lift Gate Weight Lifting For Sale
-
Material:
-
Iron/Aluminum
-
Application:
-
Cargo Truck
-
Type:
-
Lift
-
Color:
-
Black/Original
-
Function:
-
Secure Cargo Loads
-
Descrtption:
-
12V Tail Light
-
Structure:
-
Engine Driven Monoblock Units
-
Load Bar Product Features:
-
Protector Cargo
-
OEM:
-
Acceptable
Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Shuang Ji
-
Model Number:
-
SJ-WB20/155S
-
Product Name:
-
2000kg Truck Lift Gate Weight Lifting For Sale
-
Material:
-
Iron/Aluminum
-
Application:
-
Cargo Truck
-
Type:
-
Lift
-
Color:
-
Black/Original
-
Function:
-
Secure Cargo Loads
-
Descrtption:
-
12V Tail Light
-
Structure:
-
Engine Driven Monoblock Units
-
Load Bar Product Features:
-
Protector Cargo
-
OEM:
-
Acceptable
Good reputation Hydraulic Dump Hoist Cylinder Electric Tail Gate lift For Sale
1. Material: High strength plate, Steel and aluminium
2. Cylinder piston rod: quenching with quenching, chrome-plated nickel, durable, anti-rust treatment
3. Cylinder seals: Temperature: -40℃ -60℃ Celsius
4. Cylinder quantity: 4pcs, two for lifting and two for flip, (single acting hydraulic cylinder)
| Model | Plate Size(mm) | Rated loading capacity(kg) | Max.lifting height(mm) | System pressure(Mpa) | Voltage(V) | Average speed of lifting and falling(mm/s) |
| SJ-WB10/105S | 1800*1650 | 1000 | 1050 | 16 | 12/24 | 80 |
| SJ-WB10/130S | 1800*1650 | 1000 | 1300 | 16 | 12/24 | 80 |
| SJ-WB15/155S | 2300*1800 | 1500 | 1550 | 16 | 12/24 | 80 |
| SJ-WB20/155S | 2300*1800 | 2000 | 1550 | 16 | 12/24 | 80 |
| SJ-WB20/155SB | 2400*1800 | 2000 | 1550 | 16 | 12/24 | 80 |
Our factory already passed the
certificate of ISO/TS16949
which is special for manufacturer capable processing part of the car/truck to
strengthen their value
.
1.The core components are widely adopted the imported technology from England ,Italy,U.S.All the main coponents are using the first-class brand at home and abroad .
2.The hydraulic cylinders use leakproof structure style which is our independent designed patent . It can drastically improve the product's reliability and stability .
3.More than 80% material use the high strength steel sheet (LG600XT,yeild strength 650 Mpa).The structure is lighter and the strength is higher .
4.Bigger adjustment angle . It's more adapt to different road situation and working condition .
5.Less welded parts .The lifting arm structure is cut from the one-piece entity plank .It can make the structure strength and reliability stronger .
6.Further optimizing the hydraulic system ,control system .The pipeline , circuit and connection are with integrated technology . The systems are simpler, more stable,more convenient to installation and maintenance .
1.The Tail lift/Gate is powered by automobile itself from the electric power of the battery, which works effectively and be environment-friendly .
2. Loading and unloading with the tail plateTail lift/Gate of automobile can also reduce the operation of forklift with heavy pollution and high energy consumption.
3.In the process of goods loading and unloading , Tail lift/Gate can reduce labor, ensure the complete loading and unloading , reduce cargo damage.
4. Tail lift/Gate can be used for loading and unloading inflammable, explosive, fragile items, to ensure the safety of operators .
5.TheTail lift/Gate can be used for urban logistics, adapt to the city of small stores, small goods logistics distribution, can go from street to street easily.
1.We have professional engineer team and R&D team. We can provide solution within 24 hours.
2.Customized product is accpeted .
3. Factory visiting is always welcome .
FAQ
Q1:Why choose ShuangJi ?
A:12 years manufacturer experience in hydraulic lifting industry.
Q2:Do you know what makes us walk such far ?
A:
1. Competitive price .
We are the manufacturer , and have lots of orders from domestic and foreign each year, so we can purchase the raw material with much cheaper price which will directly effects the price of the lifting machines.
2. Reliable quality .
a. Material. Use the thickness of the rectangular tube is 5mm which make the whole machine more steady and durable.
b. Painting. We use the painting that can meet the international standard , which makes the surface of the machine more bright and smoothly, also not easy to remove or come off.
3.Keeping innovations
We welcome every recommendation and opinion from you and make progress together with you. We can design a new machine as your requirements, until your satisfaction.
