Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shunli Motor
-
Model Number:
-
GMP57
-
Torque:
-
Max 300kg.cm
-
Product Name:
-

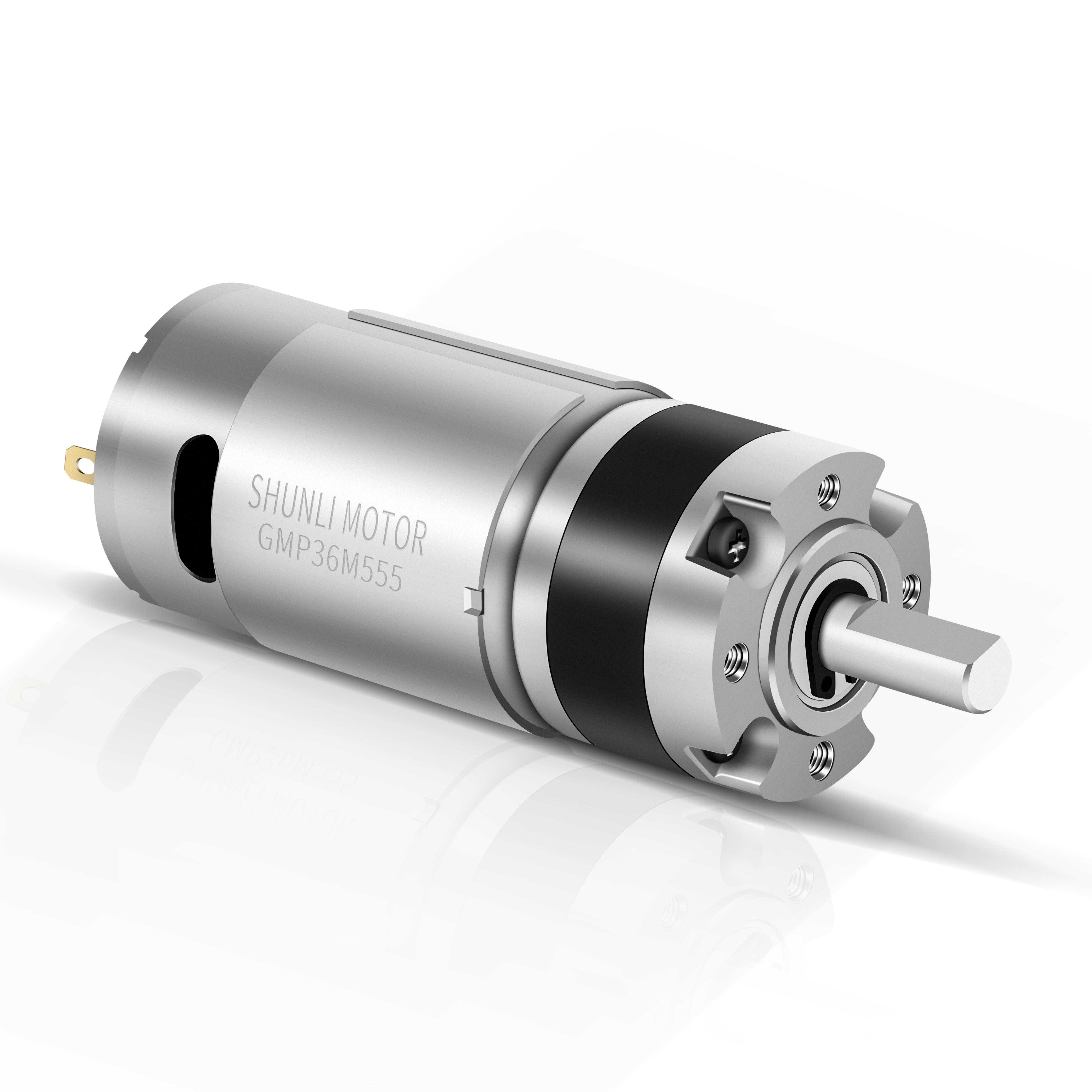

High torque DC planetary gear motor
-
Keywords:
-
DC planetary gear motor
-
Rated Voltage:
-
12v-36v
-
Rated torque:
-
5.0kg.cm-150kg.cm
-
Rated Speed:
-
1rpm-2100rpm
-
Shaft diameter:
-
10mm
-
Diameter:
-
57mm
-
Material:
-
Magnets
-
Brush Type:
-
Brush
-
Certification:
-
CCC
Quick Details
-
Speed(RPM):
-
14.5~1780rpm
-
Continuous Current(A):
-
0.3-10A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shunli Motor
-
Model Number:
-
GMP57
-
Torque:
-
Max 300kg.cm
-
Product Name:
-
High torque DC planetary gear motor
-
Keywords:
-
DC planetary gear motor
-
Rated Voltage:
-
12v-36v
-
Rated torque:
-
5.0kg.cm-150kg.cm
-
Rated Speed:
-
1rpm-2100rpm
-
Shaft diameter:
-
10mm
-
Diameter:
-
57mm
-
Material:
-
Magnets
-
Brush Type:
-
Brush
-
Certification:
-
CCC
300w 250 watt high torque dc motor power electric wheelchair motor
Specification
Gearbox Technical Date
| Number of stages | 1 | 2 | 3 | 4 | 5 |
| Ratio | 3.5K / 4.75K | 12.3K / 16K / 22.6K | 42.8K / 76K / 107K | 150K / 204K / 276K / 375K / 509K | 525K / 713K / 967K / 1313K / 1782K / 2418K |
| Gearbox Length “A”(mm) | 37.5 | 49 | 60.5 | 72 | 79 |
| Max. Rated Torque | 30.0 Kgf.cm | 50.0 Kgf.cm | 80.0 Kgf.cm | 100.0 Kgf.cm | 100.0 Kgf.cm |
| Max. Gear Breaked Torque | 90.0 Kgf.cm | 150.0 Kgf.cm | 240.0 Kgf.cm | 300.0 Kgf.cm | 300.0 Kgf.cm |
| Gearbox Efficiency | 85%~95% | 78%~85% | 70%~78% | 60%~70% |
50%~60% |
Gear motor Technical Date
| Gear motor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | A | RPM | A | N.m / Kgf.cm | A | N.m / Kgf.cm | |||
| GMP57MP3435-107K | 1 : 107 | 6 VDC | 14.5 | ≤ 0.65 | 10 | ≤ 1.2 | 6.0 / 60 | ≤ 2.0 | 22 / 220 |
| GMP57MP3440-4.75K | 1 : 4.75 | 12 VDC | 1780 | ≤ 1.8 | 1500 | ≤ 12 | 0.8 / 8 | ≤ 78 | 3.5 / 35 |
PMDC MOTOR Technical Date
| PMDC MOTOR Model | PMDC Motor Length “B”(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | A | RPM | A | mN.m / gf.cm | A | mN.m / gf.cm | ||||
| SL-P3435 | 241550 | 60~75 | 24 VDC | 1550 | ≤ 0.4 | 1050 | ≤ 0.85 | 100 / 1000 | ≤ 1.8 | 310 / 3100 |
| SL-P3440 | 128500 | 75~95 | 12 VDC | 8500 | ≤ 1.2 | 7000 | ≤ 11.5 | 205 / 2050 | ≤ 78 | 900 / 9000 |
Why do you choose us:
1. Our Company
We are a factory specialize in producing motors more than 14 years, and we have three factories, respectfully local in Shenzhen, Huizhou, Dongguan, professional R&D team mature management and experienced engineer salesman will bring you a pleasant shopping experience.
2.Quality control
I n order to confirm quality,from we receive material to shipment to be carefully checked every step of the way.Quality is our basis of our development.
1.Q: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
3.Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
