Quick Details
-
Voltage:
-
220v/380v
-
Power:
-
12 kw
-
Dimension(L*W*H):
-
8500*1600*2300 mm
-
Weight (KG):
-
5000
-
Evaporation Capacity(kg/h):
-
500-10000
-
Material:
-
Q235, Carbon Steel or stainless steel
-
Name:
-
Soybean Residue Drier Apple Pomace Dryer Machine For Industrial Use
-
Capacity:
-
0.5--10 tons per hour
-
Heating method:
-
Indirect heating
-
Heating source:
-
Coal, wood, steam, oil, diesel, gas, biomass fuel, etc
-
Discounts:
-
5% or more
-
Delivery:
-
On-time delivery rate 100%
-
Product name:
-
Apple Pomace Dryer Machine
-
Certification:
-
CE ISO
Quick Details
-
Type:
-
Rotary Drying Equipment
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Haokebang
-
Voltage:
-
220v/380v
-
Power:
-
12 kw
-
Dimension(L*W*H):
-
8500*1600*2300 mm
-
Weight (KG):
-
5000
-
Evaporation Capacity(kg/h):
-
500-10000
-
Material:
-
Q235, Carbon Steel or stainless steel
-
Name:
-
Soybean Residue Drier Apple Pomace Dryer Machine For Industrial Use
-
Capacity:
-
0.5--10 tons per hour
-
Heating method:
-
Indirect heating
-
Heating source:
-
Coal, wood, steam, oil, diesel, gas, biomass fuel, etc
-
Discounts:
-
5% or more
-
Delivery:
-
On-time delivery rate 100%
-
Product name:
-
Apple Pomace Dryer Machine
-
Certification:
-
CE ISO

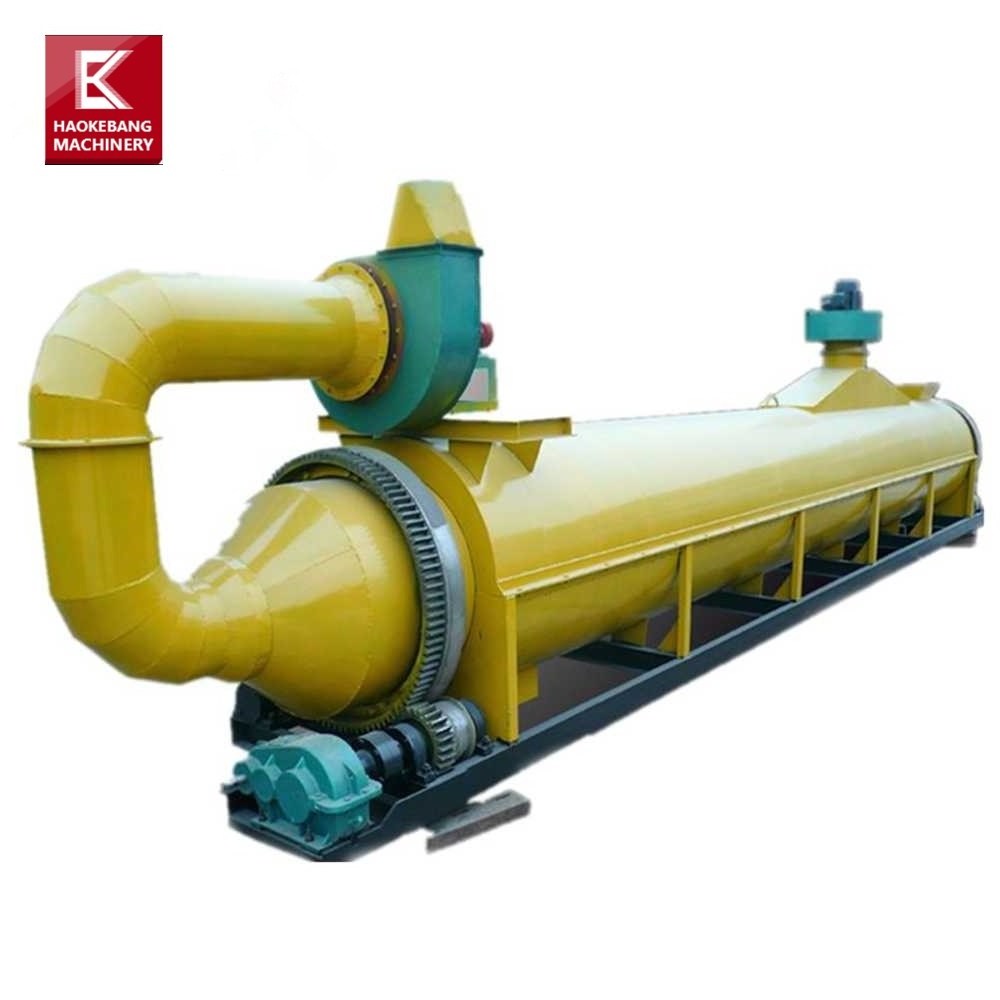

High Quality Soybean Residue Drier Apple Pomace Dryer Machine For Industrial Use
Apple Pomace Dryer Machine is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. It is also suitable for drying sawdust, wood chip, cassava dregs, bagasse, apple pomace, coffee waste, etc, Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature.
Tube temperature can reach 500 to 800 degrees Celsius, and can be adjusted. You can adjust the temperature through the hot air into the volume according to drying different materials
Apple Pomace Dryer Machine Stove
Inside of the Apple Pomace Dryer, there are many tubes. During drying process, the hot air will enter into tube-internal by draught fan, while the materials exist tube-external, so that the materials can be dried indirectly, there is no pollution and no color change, also a fire that caused by too high temperature will be avoided successfully.
Tomato pomace/Coffee waste / Pomace / Spent grain/ Cassava residue/ Bagasse can be dried
1. New technology of indirect-drying structure, the working process is very safe and health.
2. Apple Pomace Dryer Machine equipped with biofuels stove, has a high environmental protection effect.
3. High thermal efficiency, the thermal efficiency can reach 60%.
4. The effect of drying is very good.
5. High output and low cost, reasonable design.
6. Apple Pomace Dryer moth-proofing, and it prevent mildew, has a long shelf life.
7. Apple Pomace Dryer have a high degree of automation, easy to operate, save manpower.
| Model(mm) | HKB-1060 | HKB-1290 | HKB-1590 | HKB-2090 | ||
|
Dimension(mm) |
9000×1500×2000 | 12000×1700×2200 | 12000×2000×2500 | 12000×2500×2800 | ||
| Output(t/h) | 0.5-1 | 2-5 | 5-10 | 10-20 | ||
| Power(kw) | 12 | 18.7 | 25 | 30 | ||
| Weight(t) | 6 | 10 | 14 | 20 | ||
| Pipe range(m) | 6 | 9 | 9 | 9 | ||
| Diameter of pipe(m) | 1 | 1.2 | 1.5 | 2 | ||
| Dust catcher | Diameter(m) | 1 | 1.2 | 1.5 | 1.5 | |
| Height(m) | 1.8 | 2.2 | 2.5 | 2.5 | ||
| Adjustable speed motor | 4P-4KW | 4P-4KW | 4P-5.5KW | 4P-7.5KW | ||
| Hot air furnace | Inside diameter (mm) | 1500 | 1800 | 2000 | ||
| Gas output(Nm³/h) | 1200-1600 | 1500-2100 | 1750-2500 | |||
| Main air blower | Y5-47-5C-5.5KW | Y5-47-5C-7.5KW | ||||
| Dust removing fan | 4-72-3.2A-2.2KW | 4-72-3.6A-3KW | ||||
| Speed(r/min) | 3-5 | |||||
| Reduction of moisture(%) | 40-50 | |||||
| Dryness of finished materials(%) | 5-10 | |||||
| Heating medium | Hot clean air | |||||
| Hot air temp(℃) | <120 | |||||
None are suitable? It does not matter, our engineers can design the production line according to your requirement
