Quick Details
-
Model Number:
-
BP
-
Product name:
-

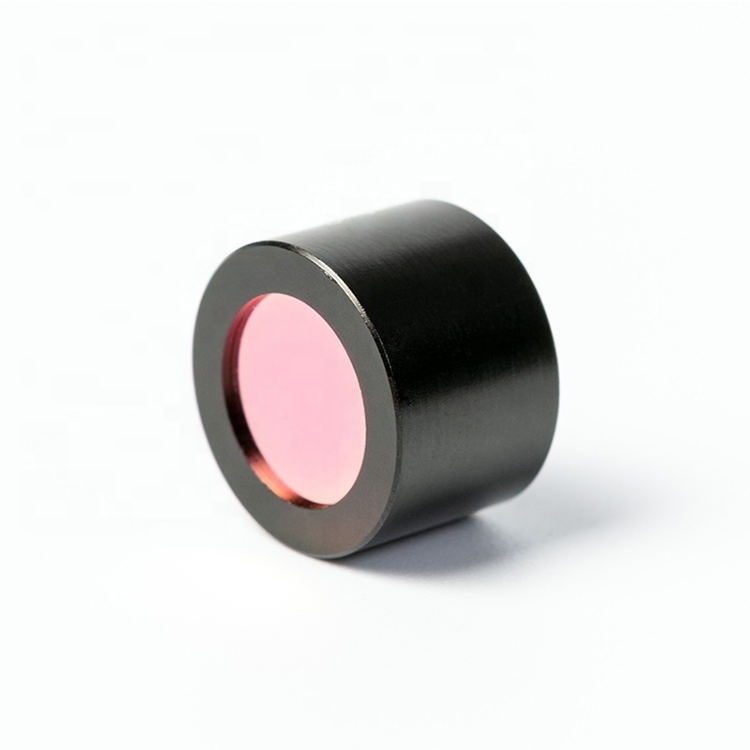

UV&IR cut filter/Bandpass filter
-
Substrate:
-
Clear Optical Glass
-
Transmittance:
-
T>90%
-
Blocking range:
-
410nm-700nm
-
Optical density:
-
OD2-OD6
-
Shape:
-
Custom Shape
-
Surface Quality:
-
60/40
-
ISO9001:
-
2015
-
MOQ:
-
1PC
-
Use:
-
Medical equipment/optical/other
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shenzhen,China
-
Brand Name:
-
NMOT
-
Model Number:
-
BP
-
Product name:
-
UV&IR cut filter/Bandpass filter
-
Substrate:
-
Clear Optical Glass
-
Transmittance:
-
T>90%
-
Blocking range:
-
410nm-700nm
-
Optical density:
-
OD2-OD6
-
Shape:
-
Custom Shape
-
Surface Quality:
-
60/40
-
ISO9001:
-
2015
-
MOQ:
-
1PC
-
Use:
-
Medical equipment/optical/other
Products Description
Areas of application
F
luorescence analyzer, enzyme mark, cable to upgrade equipment, wireless transmission equipment, cell phone,barcode scanning, infrared electronic whiteboard,IR camera, touchscreen, iris recognition,IR medical instruments,IR ink identification, red membrane recognition, face recognition, hand-held infrared laser rangefinder sensor system, a laser range finder, optical instruments, health care equipment and testing instruments.
If you need more wavelength and size, please contact us. Lots of filters are in stock and they can be customized.
http://www.opticsfilter.com/
|
Product name
|
UV&IR cut filter
|
|
Material
|
glass
|
|
Diameter
|
30±0.1mm or custom
|
|
Thickness
|
1.1±0.1mm
|
|
Transmission range
|
T>90%@410-700nm
|
|
Blocked range
|
T<1%@200-380nm&760-1100nm
|
|
Parameter
|
Bandpass Filter Set
|
|
CWL
|
940±5nm or custom
|
|
FWHM
|
10nm-50nm (customized)
|
|
Product size
|
5mm-80mm(customized)
|
|
Transmission at CWL
|
>90%(According to customers' demand)
|
|
Blocking
|
>OD2-OD6
|
|
Substrate
|
Optical glass
|
|
Surface Quality
|
60-40,40-20
|
Friendly reminder
1. Product size and shape can be custom cut as per your requirements.
1. Product size and shape can be custom cut as per your requirements.
2. The price will be different for various product size.
3. Welcome to contact us for more details!
