- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Power:
-
3KW
-
Weight (KG):
-
2300
-
Model:
-
15-30g
-
COLOR:
-
Green
-
Name:
-
Cold Heading Machine
-
Advantage:
-
High Efficiency
-
Application:
-
Screw
-
Material:
-
Stainless Steel Material
-
Quality:
-
Guaranteed
-
Servo Motor:
-
Phase Brand
-
Brand:
-
Ronen-Wuhe
-
Widely used:
-
Hardware Fastener
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Ronen wuhe
-
Machine Type:
-
cold heading machine
-
Voltage:
-
380V
-
Power:
-
3KW
-
Weight (KG):
-
2300
-
Model:
-
15-30g
-
COLOR:
-
Green
-
Name:
-
Cold Heading Machine
-
Advantage:
-
High Efficiency
-
Application:
-
Screw
-
Material:
-
Stainless Steel Material
-
Quality:
-
Guaranteed
-
Servo Motor:
-
Phase Brand
-
Brand:
-
Ronen-Wuhe
-
Widely used:
-
Hardware Fastener
Factory Introduction
Ronen Wuhe
is one special manufacture for producing Nut Tapping Machine (Fastener Nut) in China. Have Taiwan Technology level engineers team, and with
strict technical monitoring and production process, the plant area is 15000 square meter
Nut tapping Machine produced by Ronen Wuhe is suitable for auto parts, construction hardware, construction fasteners, machinery,electronics, etc . We have big share in domestic market, and In recent years.We have exported to Europe, USA, Korea, Russia,India,Indonesia Vietnam etc..
In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership. .
Nut tapping Machine produced by Ronen Wuhe is suitable for auto parts, construction hardware, construction fasteners, machinery,electronics, etc . We have big share in domestic market, and In recent years.We have exported to Europe, USA, Korea, Russia,India,Indonesia Vietnam etc..
In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership. .
We have trade assurance limit provided by ALIBABA,it means that
if there is any problems,the ALIBABA can reback 30% payment for you in advance
.It can ensure on-time shipment and pre-shipment product quality.
Product Introduction

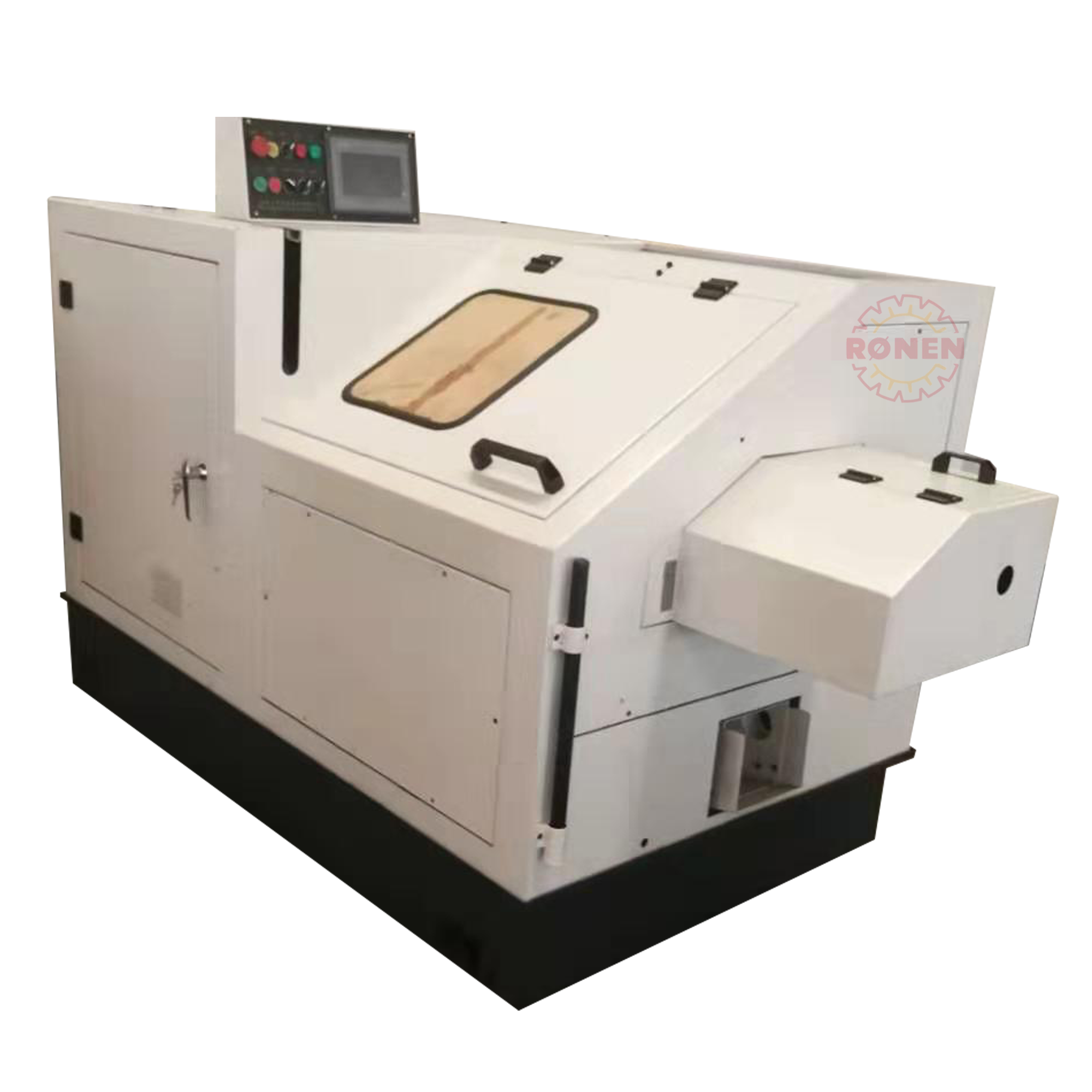

Cold Heading Machine
Cold Heading Machine
The cold heading machine can do the nuts include standard parts and non-standard parts, such as: drywall screw,self drill screws,blind rivet,flat head screw,wood screw,screw nut,roof screws,screw nail,self tapping screw,drywall board screw,countersunk head screw
Technical specification
|
Specification
|
X15-30G
|
X15-37G
|
X15-50G
|
X15-63G
|
X15-76G
|
X15-100G
|
|
Main Motor
|
3KW(4HP)
|
3KW(4HP)
|
3KW(4HP)
|
3KW(4HP)
|
3KW(4HP)
|
3KW(4HP)
|
|
Diameter
|
2.3~5mm
|
2.3~5mm
|
2.3~5mm
|
2.3~5mm
|
2.3~5mm
|
2.3~5mm
|
|
Length
|
6~30mm
|
6~37mm
|
6~50mm
|
6~63mm
|
6~76mm
|
75~100mm
|
|
Main Die
|
φ 34.5*50mm
|
φ 34.5*55mm
|
φ 34.5*67mm
|
φ 34.5*80mm
|
φ 34.5*100mm
|
φ 34.5*115mm
|
|
1st Punch
|
φ 31*73mm
|
φ 31*73mm
|
φ 31*73mm
|
φ 31*73mm
|
φ 31*73mm
|
φ 31*73mm
|
|
2rd Punch
|
φ 31*73mm
|
φ 31*73mm
|
φ 31*73mm
|
φ 31*73mm
|
φ 31*73mm
|
φ 31*73mm
|
|
Cutting Die
|
φ 19*35mm
|
φ 19*35mm
|
φ 19*35mm
|
φ 19*35mm
|
φ 19*35mm
|
φ 19*35mm
|
|
Cutter
|
10*32*63mm
|
10*32*63mm
|
10*32*63mm
|
10*32*63mm
|
10*32*63mm
|
10*32*63mm
|
|
Speed
|
260-300 pcs/min.
|
190-215 pcs/min.
|
180-195 pcs/min.
|
130-150 pcs/min.
|
120-135 pcs/min.
|
85-100 pcs/min.
|
|
Weight
|
2300 kg
|
2300 kg
|
2300 kg
|
2300 kg
|
2300 kg
|
2300 kg
|
Related products
Workshop Show
Business Partner
Customer Reviews
Certificate
FAQ
1. -Can your machinery produce non-standard parts?
-Yes, we can. Our machinery can produce non-standard parts, at the same time,we can also customize according to your parts drawings.
2. -Does your factory have customers in our country?
-We have rich experience in export. Europe, Asia, Africa, North America, South America, Oceania, all have our customers.
3. -Can you provide debugging video and samples?
-Sure. We will update the information (photos, videos, etc.) with you during and after debugging, and send samples. The shipment will be arranged only after you confirm it is correct.
4. -Can you arrange the delivery time according to the contract?
-Of course. We will deliver the goods to you as soon as possible on the basis of the contract. It will not affect your use.
5. -If it is beyond the warranty period, can we check the technical problems with you?
-Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
