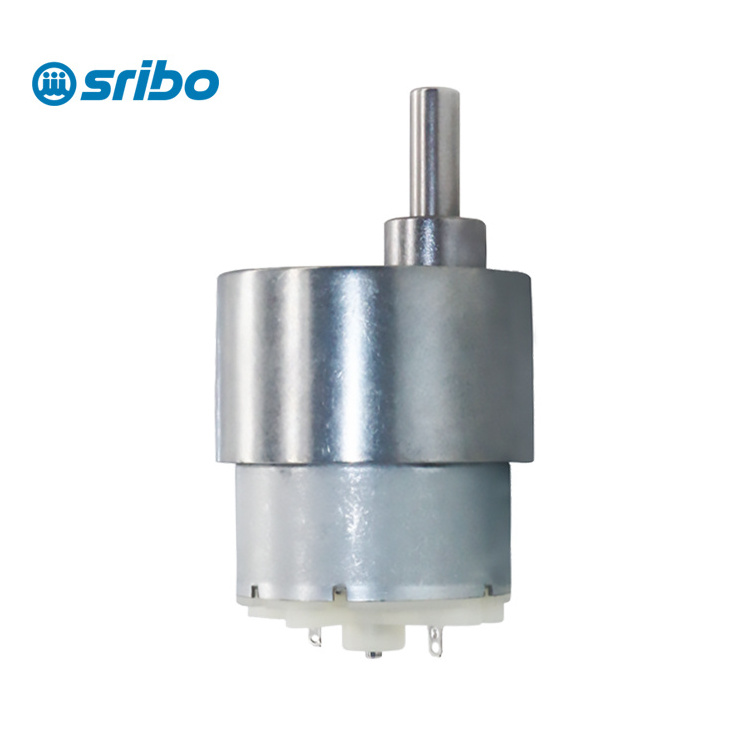

GB37-500 DC 12 Volt 6V Gear motor 37mm Diameter Gearbox Small Motor Eccentric Shaft High Torque Low Noise For DIY

FOB Reference Price: Get Latest Price

≥10 Pieces

US $5.38

≥1000 Pieces

US $5.08

≥5000 Pieces

US $4.58

≥50000 Pieces

US $3.98

Free Inquiry

Customized Request

Quick Details

GB37-500 DC 12 Volt 6V Gear motor 37mm Diameter Gearbox Small Motor Eccentric Shaft High Torque Low Noise For DIY

Product Description

Produts Show

Brand	SRIBO
Type	Spur gear motor
model	SGM37-500
Voltage	6-24v
No-load current	38mA
power	7W
No-load speed	4-1016rpm
Maximum torque	35Kgf.cm
Whether adjustable speed	Yes
Whether it can be positive and negative	Yes
Shaft diameter	6mm (milling 0.5mm)
Shaft length	21mm
weight	150g
application	Office automation, household appliances, medical equipment, power tools, various smart devices

		Model: SGM37-500 DC Gear Motor					Support for Customizing Other Parameters
Model	Voltage	Reducer		No Load		Rated Load			Stall
	Voltage	Ratio	Size"L"	Speed	Current	Speed	Current	Torque	Torque	Current
	V	i:1	mm	rpm	mA	rpm	mA	Kg·cm	Kg·cm	A
SRB-SGM37-500-0632 -0.5W	DC 6V	6.3	19	500	≤35	330	≤130	0.15	0.4	0.4
		10	19	320	≤35	210	≤130	0.25	0.7	0.4
		19	22	170	≤35	110	≤130	0.45	1.2	0.4
		30	22	105	≤35	70	≤130	0.75	2	0.4
		56	24	57	≤35	37	≤130	1.4	3.7	0.4
		90	24	35	≤35	22	≤130	2.2	6	0.4
		131	26.5	25	≤35	16	≤130	3.2	8.5	0.4
		168	26.5	19	≤35	12	≤130	4.2	11	0.4
		270	26.5	12	≤35	7.5	≤130	6.8	18	0.4
		506	29	7	≤35	4	≤130	12	30	0.4
		810	29	4	≤35	2.5	≤130	20	50	0.4
SRB-SGM37-500-1264 -2W	DC 12V	6.3	19	1016	≤45	660	≤250	0.3	0.8	0.8
		10	19	640	≤45	420	≤250	0.5	1.3	0.8
		19	22	340	≤45	220	≤250	0.9	2.5	0.8
		30	22	213	≤45	140	≤250	1.5	4	0.8
		56	24	114	≤45	75	≤250	2.8	7.5	0.8
		90	24	71	≤45	45	≤250	4.5	12	0.8
		131	26.5	49	≤45	32	≤250	6.5	17	0.8
		168	26.5	38	≤45	25	≤250	8.4	22	0.8
		270	26.5	24	≤45	15	≤250	13.5	36	0.8
		506	29	13	≤45	8	≤250	25	Max Load 40Kg, No Stall
		810	29	8	≤45	5	≤250	40	Max Load 40Kg, No Stall
SRB-SGM37-500-2460	DC 24V	6.3	19	960	30	740	89	0.06	0.22	0.33
		10	19	600	30	462	85	0.1	0.35	0.33
		19	22	320	30	240	100	0.14	0.67	0.33
		30	22	200	30	159.7	81	0.22	1.1	0.33
		56	24	100	30	82	80	0.92	2	0.33
		90	24	66	30	55.5	79	1.12	3.2	0.33
		131	26.5	45	30	37.1	86	1.32	4.6	0.33
		168	26.5	35	30	27.2	104	1.4	6	0.33
		270	26.5	22	30	18.8	105	3	9.48	0.33
		506	29	12	30	9.3	107	9.13	18	0.33
		810	29	7	30	5.4	105	14.6	28.9	0.33
