Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YEAME
-
Product name:
-
jib crane
-
Material:
-
Manganese steel
-
Capacity:
-
3T
-
Operation type:
-
work with forklift
-
Boom mounting angle:
-
0/13/26 degree
-
Paint:
-
can be customized
-
Keywords:
-
telescopic boom crane
Quick Details
-
Weight (KG):
-
230
-
Rated Loading Capacity:
-
3000KG
-
Max. Lifting Height:
-
3000MM
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YEAME
-
Product name:
-
jib crane
-
Material:
-
Manganese steel
-
Capacity:
-
3T
-
Operation type:
-
work with forklift
-
Boom mounting angle:
-
0/13/26 degree
-
Paint:
-
can be customized
-
Keywords:
-
telescopic boom crane

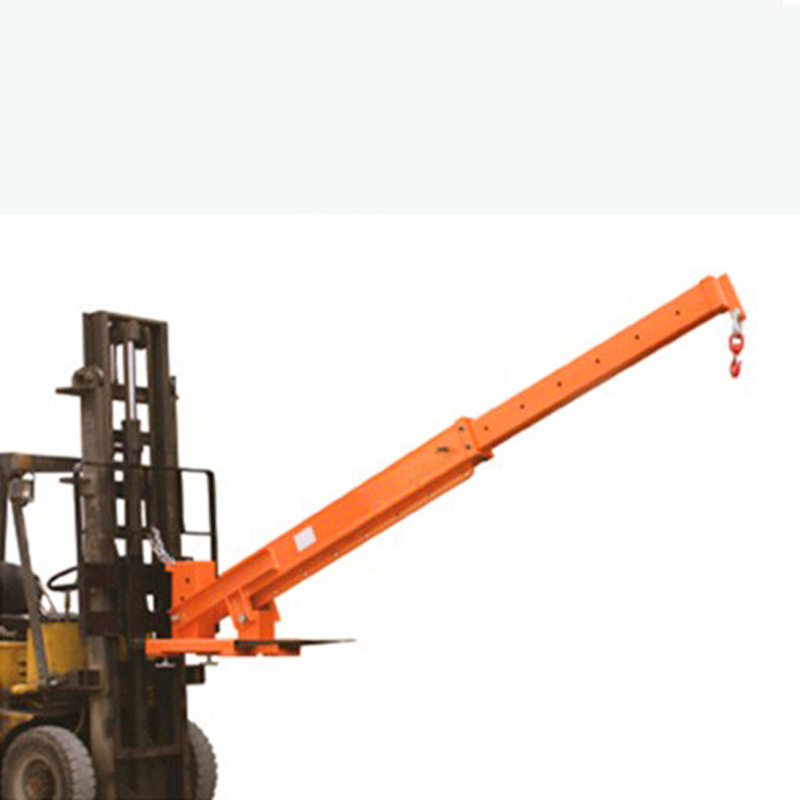

YLB01 fork mounted telescopic boom crane
◆The angle of the lifting arm with three adjustable hole positions makes the forklift a mobile crane that can meet various working conditions. The hook can rotate and has a safety lock;
◆Equipped with 2 locking bolts and heavy-duty chains, ensuring that the fork crane does not shift or slip;
◆Suitable for cross-sectional dimensions ≤ 180 × 60mm (width × thickness) forks.
◆Adjustable telescopic super long lifting arm, suitable for operation in areas that are difficult for forklifts to enter,Especially suitable for lifting and loading unloading long strip cargo in containers.

Arm angle
|
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|||||||
0º
|
Arm length
|
mm
|
760
|
990
|
1220
|
1450
|
1680
|
1910
|
2140
|
|||||||
|
Load capacity
|
kg
|
3000
|
2303
|
7869
|
1572
|
1357
|
1194
|
1065
|
|||||||
13º
|
Arm length
|
mm
|
740
|
965
|
1190
|
1415
|
1640
|
1865
|
2090
|
|||||||
|
Load capacity
|
kg
|
3081
|
2363
|
1916
|
1611
|
1390
|
1223
|
1091
|
|||||||
26º
|
Arm length
|
mm
|
710
|
919
|
1127
|
1336
|
1544
|
1752
|
1961
|
|||||||
|
Load capacity
|
kg
|
3211
|
2481
|
2023
|
1707
|
1477
|
1301
|
1163
|
|||||||
Fork sleeve inner distance
|
|
mm
|
166
|
|
|
|
|
|
|
|||||||
Fork sleeve opening
|
|
mm
|
180*74
|
|
|
|
|
|
|
|||||||
Overall dimension
|
|
mm
|
2410*540*525
|
|
|
|
|
|
|
|||||||
Weight
|
|
kg
|
240
|
|
|
|
|
|
|
Arm angle
|
|
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
|||||||
0º
|
Arm length
|
mm
|
2375
|
2605
|
2835
|
3065
|
3295
|
3525
|
3755
|
|||||||
|
Load capacity
|
kg
|
960
|
875
|
804
|
744
|
692
|
647
|
607
|
|||||||
13º
|
Arm length
|
mm
|
2319
|
2544
|
2769
|
2994
|
3219
|
3444
|
3669
|
|||||||
|
Load capacity
|
kg
|
983
|
896
|
823
|
762
|
708
|
662
|
621
|
|||||||
26º
|
Arm length
|
mm
|
2174
|
2382
|
2591
|
2799
|
3007
|
3216
|
3424
|
|||||||
|
Load capacity
|
kg
|
1049
|
957
|
880
|
815
|
758
|
709
|
666
|
|||||||
Fork sleeve inner distance
|
|
mm
|
166
|
|
|
|
|
|
|
|||||||
Fork sleeve opening
|
|
mm
|
180*74
|
|
|
|
|
|
|
|||||||
Overall dimension
|
|
mm
|
2410*540*525
|
|
|
|
|
|
|
|||||||
Weight
|
|
kg
|
240
|
|
|
|
|
|
|


Q1: Are you a manufacturer?
A 1: Yes, and we also export for several our partner factories in China to manufacture Forklift, Hand pallet truck, Table Lift, Drum& Roll Handling Equipment, we have large range of product, no factory can produce all these product in one factory.
Q2: Warranty for the product?
A2: 12 months warranty on major components.
Q3: How about the delivery time for the products showed in website?
A3: Normally 15-35 days after down payment. and most of compact small machines have large stock , can be shipped in around 5 days.
Q4: How many days we need for sending shipping documents?
A4: Usually within 5 days after vessel shipped out.
Q5: Can you add our own logo on the products or use our designs?
A5: Yes,of course you can add logo on the product you bought with on condition that you will issue letter of authorization of the brand.We provide OEM/ODM service.I addition,we promise your design would protect by law,we won't tell anyone else about this. It's your own copyright.
Q6: Can you send the machine to my factory in other city to load the container?
A6: Yes,please tell us the detail address,we can arrange to send your factory in time with a reasonable charge on transportation.
Q7: How can the machines be send to us?
A7: Most of our products are heavy and big, it's cylinder contains hydraulic oil. so it is only suitable for sea-shipment in terms of cost.
